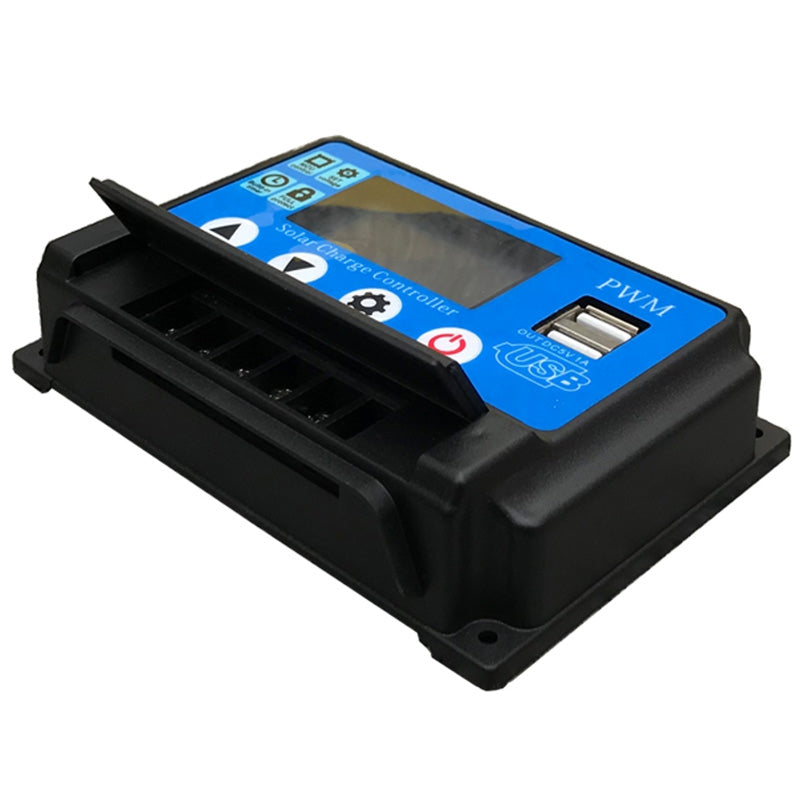

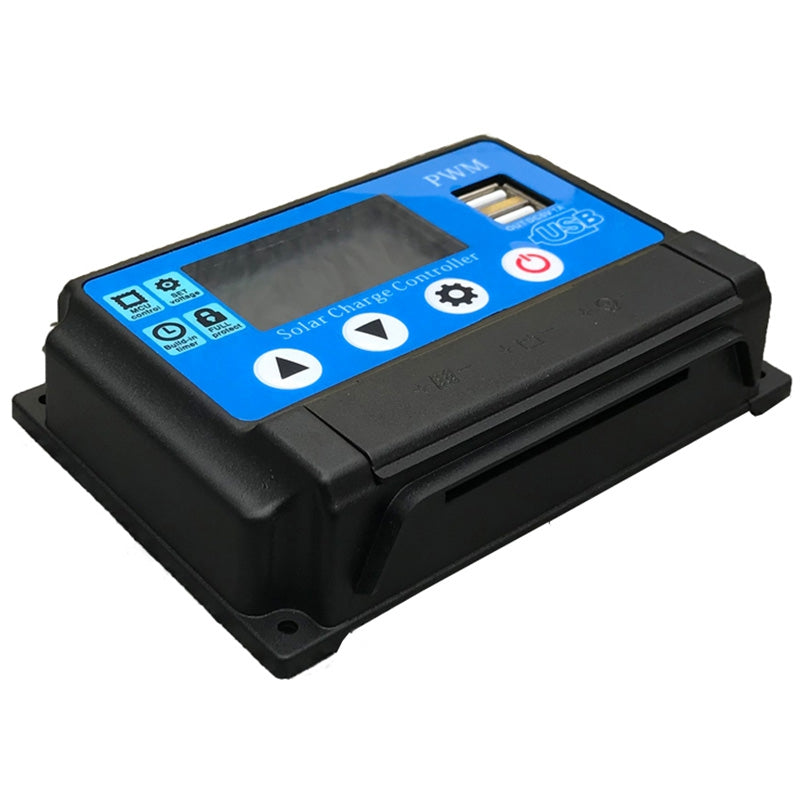

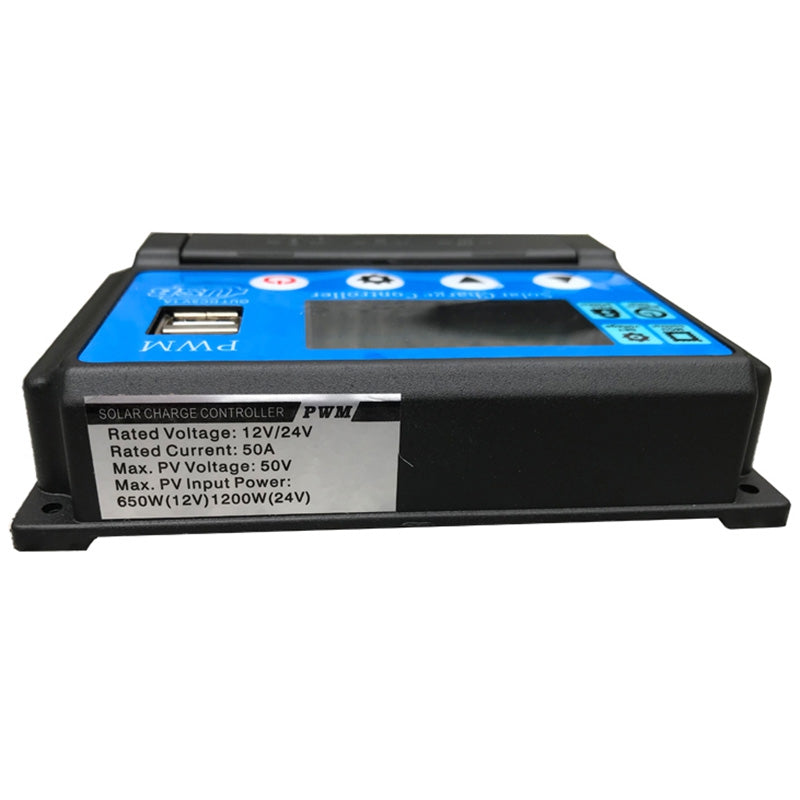

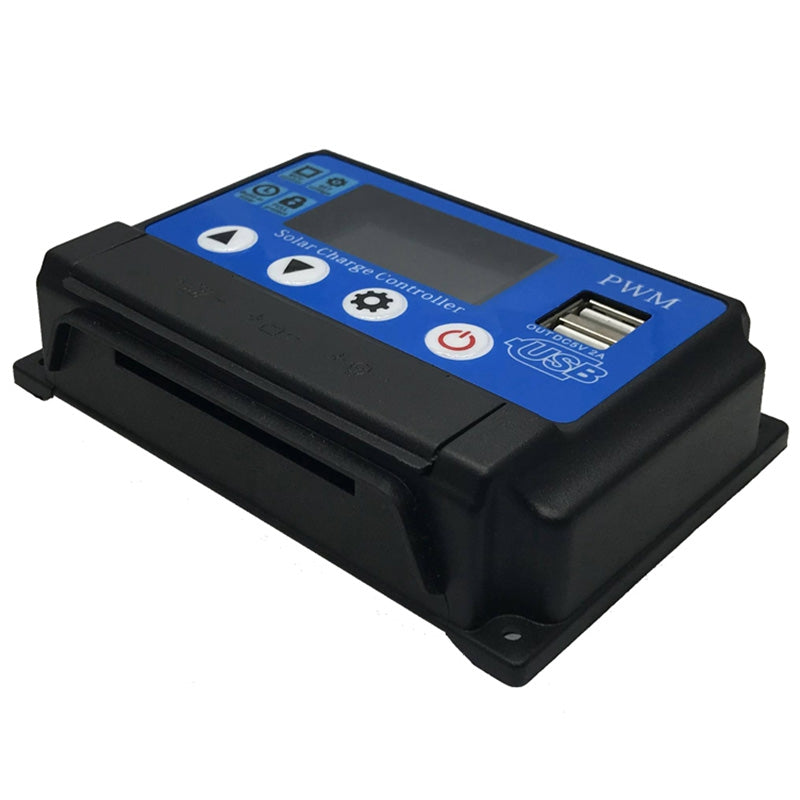

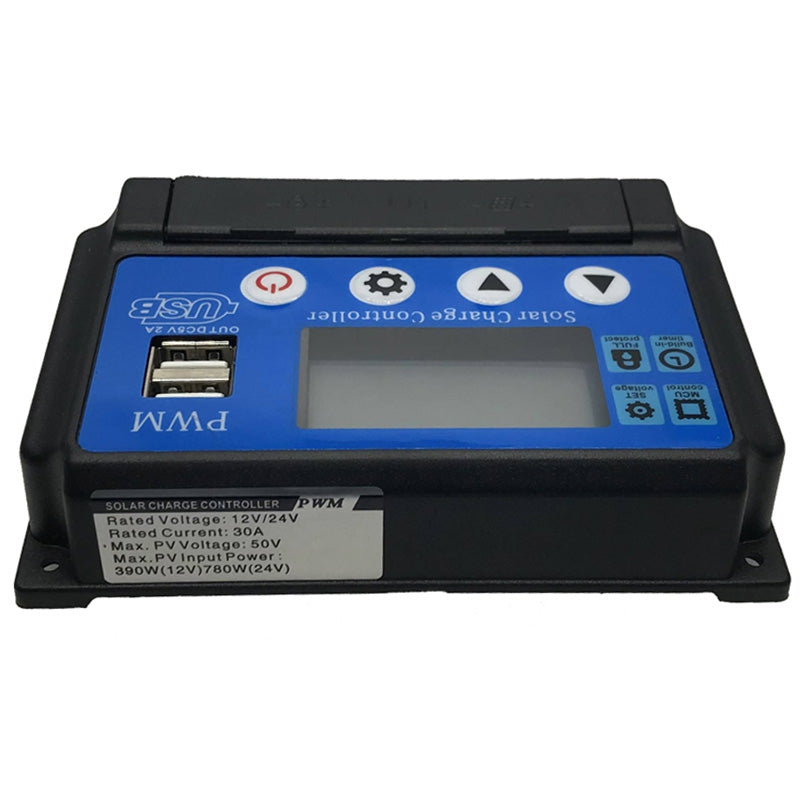

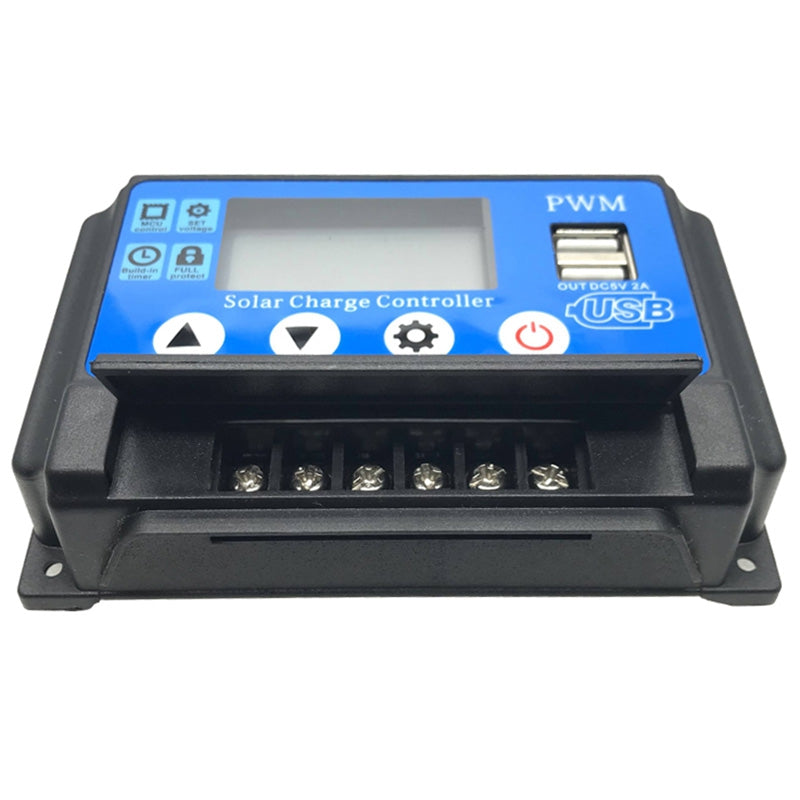

YC-002 Solar Charge Controller PWM 12 / 24V
Availability:
In Stock
|
FREE Shipping on Orders Over $20
ships worldwide |
$22.42
Main Features:
● Industrial-grade main control chip, parameter setting memory function
● Large screen LCD display with adjustable charging and discharging parameters
● Complete 3-stage PWM charge management
● Internal over-current / short-circuit protection, open-circuit protection, reverse connection protection, all self-recovery type, no damage to the controller
● Two-way mosquito tube anti-irrigation circuit, ultra-low heat.
Technical Parameter:
● System voltage: 12 / 24 adaptive
● Solar panel voltage: 12V, 18V solar panel, 24V, 36V solar panel
● Floating charge voltage: 13.7V ( default, adjustment table )
● Discharge cut-off voltage: 10.7V ( default, adjustment table )
● Discharge recovery voltage: 12.6V ( default, adjustment table )
● Standby current: less than 10mA
● USB output: 5V / 2A Max
Tips:
● 10A controller 130W solar panel use
● 20A controller 260W solar panel use
● 30A controller 390W solar panel use
● The controller first connects the battery and then connects the solar panel
● Keep the controller and battery pack away from high temperature and humidity, and keep away from flammable and explosive materials.
● Put the controller in a ventilated place when using it, do not cover the device or install it on the car.
● Industrial-grade main control chip, parameter setting memory function
● Large screen LCD display with adjustable charging and discharging parameters
● Complete 3-stage PWM charge management
● Internal over-current / short-circuit protection, open-circuit protection, reverse connection protection, all self-recovery type, no damage to the controller
● Two-way mosquito tube anti-irrigation circuit, ultra-low heat.
Technical Parameter:
● System voltage: 12 / 24 adaptive
● Solar panel voltage: 12V, 18V solar panel, 24V, 36V solar panel
● Floating charge voltage: 13.7V ( default, adjustment table )
● Discharge cut-off voltage: 10.7V ( default, adjustment table )
● Discharge recovery voltage: 12.6V ( default, adjustment table )
● Standby current: less than 10mA
● USB output: 5V / 2A Max
Tips:
● 10A controller 130W solar panel use
● 20A controller 260W solar panel use
● 30A controller 390W solar panel use
● The controller first connects the battery and then connects the solar panel
● Keep the controller and battery pack away from high temperature and humidity, and keep away from flammable and explosive materials.
● Put the controller in a ventilated place when using it, do not cover the device or install it on the car.
Model: YC-002
Material: PVC
Application: Electronic Components,Hardware Tool,Household Appliances
Material: PVC
Application: Electronic Components,Hardware Tool,Household Appliances
Package weight: 0.215 kg
Product size (L x W x H): 12.50 x 8.40 x 3.50 cm / 4.92 x 3.31 x 1.38 inches
Package size (L x W x H): 13.80 x 9.00 x 3.60 cm / 5.43 x 3.54 x 1.42 inches
Product size (L x W x H): 12.50 x 8.40 x 3.50 cm / 4.92 x 3.31 x 1.38 inches
Package size (L x W x H): 13.80 x 9.00 x 3.60 cm / 5.43 x 3.54 x 1.42 inches
Package Contents: 1 x Solar Controller PWM, 1 x Chinese and English Manual
