HGLRC Toothpick Parrot120 Pro Micro 2-3S FPV Racing Drone F411 Flight Control 13A 4in1 ESC 1106 6000KV Motor
...See More
PRIVACY PROTECTED
SECURE CHECKOUT
HGLRC Toothpick Parrot120 Pro Micro 2-3S FPV Racing Drone F411 Flight Control 13A 4in1 ESC 1106 6000KV Motor
Availability:
In Stock
|
FREE Shipping on Orders Over $20
ships worldwide |
$310.42
Main Features:
● HGLRC Parrot120 Pro Frame Kit
Material: carbon fiber
Wheelbase: 120mm
Type: 2.5 inch frame
Arm thickness: 2.0mm
Standoff height: 23mm
Flight control installation holes: 16 x 16mm
Support camera: 14 x 14mm

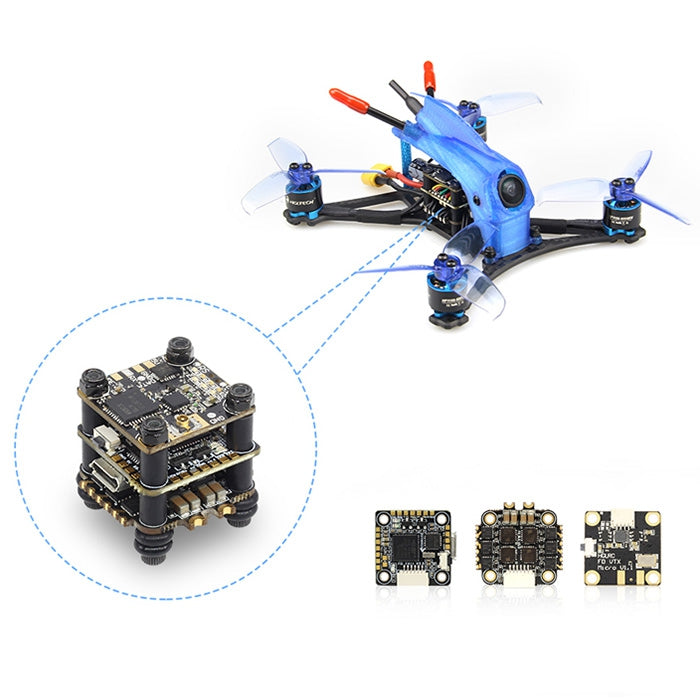

● HGLRC FD411 Flight Controller
MPU: MPU6000-SPI
CPU: STM32F411CEU6
Black box: no
Input voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC output: 5V 2A
Size: 21 x 21mm
Installing hole: 16mm, M2
Support SBUS / PPM / DSMX / iBUS receiver
● HGLRC FD13A 4in1 BLS 2-4S ESC
Input voltage: 2-4S Lipo
Constant current: 13A
Peak current: 15A（5S）
BEC output: no
Size: 23 x 24mm
Installing hole: 16 x 16mm, M2
CPU: SILABS EFM8BB2 48MHZ
MOS tube: TOP QUALITY MOSFET
Support damped mode: DSHOT600 / 300 / 150 / Oneshot125 / 42, MultiShot, PWM
● HGLRC FD VTX Micro 400mW
Output power: PIT / 25mW / 100mW / 200mW / 400mW switchable
Input voltage: DC 5V
PIT: 0dBm - 70mA
25mW: 14dBm - 150mA
100mW: 20dBm - 210mA
200mW: 23dBm - 280mA
400mW: 26dBm - 360mA
Installing hole: 16 x 16mm, M2
Antenna: IPEX
● Caddx.us Turbo Eos2 FPV Camera
Image sensor: 1/3 inch CMOS
Horizontal resolution: 1200 TVL
TV system: NTSC / PAL option
Image: 16:9
Synchronization: internal
Electronic shutter: PAL: 1/50 - 100000
NTSC: 1/60 - 100000
S/N ratio: >52dB ( AGC OFF )
Video output: CVBS
Lens: 2.1mm
Auto gain control: yes
BLC: yes
WDR: global WDR
DNR: 2 DNR
Input power: DC 3.3 - 6V
Working temperature:-20 - 60 Deg.C
Work Humidity:20 - 80pct

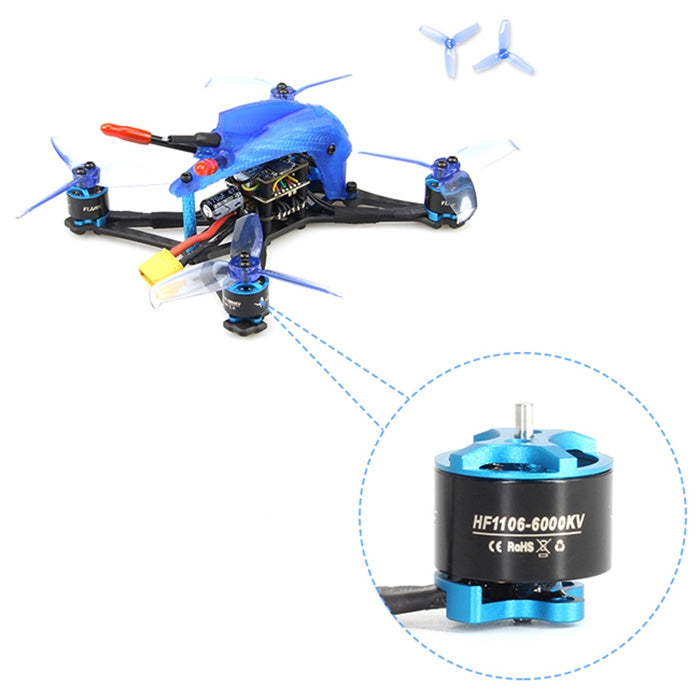

● HGLRC HF1106 6000KV Brushless Motor
Motor: KV 6000KV
Stator diameter: 11mm
Stator thickness: 6mm
No.of Stator Arms: 9S
No.of Rotor poles: 12P
Motor resistance: 120mohm
Max. continuous current: 15.27A
No.of Cells ( Lipo ): 2-3S
ESC: 15A
Recommended prop: 2.5 inch
Wire type: 28AWG x 80mm
● Gemfan 2540 2.5 inch 3-blade Propeller
Quantity: 3 CW / 3 CCW
● HGLRC Parrot120 Pro Frame Kit
Material: carbon fiber
Wheelbase: 120mm
Type: 2.5 inch frame
Arm thickness: 2.0mm
Standoff height: 23mm
Flight control installation holes: 16 x 16mm
Support camera: 14 x 14mm
● HGLRC FD411 Flight Controller
MPU: MPU6000-SPI
CPU: STM32F411CEU6
Black box: no
Input voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC output: 5V 2A
Size: 21 x 21mm
Installing hole: 16mm, M2
Support SBUS / PPM / DSMX / iBUS receiver
● HGLRC FD13A 4in1 BLS 2-4S ESC
Input voltage: 2-4S Lipo
Constant current: 13A
Peak current: 15A（5S）
BEC output: no
Size: 23 x 24mm
Installing hole: 16 x 16mm, M2
CPU: SILABS EFM8BB2 48MHZ
MOS tube: TOP QUALITY MOSFET
Support damped mode: DSHOT600 / 300 / 150 / Oneshot125 / 42, MultiShot, PWM
● HGLRC FD VTX Micro 400mW
Output power: PIT / 25mW / 100mW / 200mW / 400mW switchable
Input voltage: DC 5V
PIT: 0dBm - 70mA
25mW: 14dBm - 150mA
100mW: 20dBm - 210mA
200mW: 23dBm - 280mA
400mW: 26dBm - 360mA
Installing hole: 16 x 16mm, M2
Antenna: IPEX
● Caddx.us Turbo Eos2 FPV Camera
Image sensor: 1/3 inch CMOS
Horizontal resolution: 1200 TVL
TV system: NTSC / PAL option
Image: 16:9
Synchronization: internal
Electronic shutter: PAL: 1/50 - 100000
NTSC: 1/60 - 100000
S/N ratio: >52dB ( AGC OFF )
Video output: CVBS
Lens: 2.1mm
Auto gain control: yes
BLC: yes
WDR: global WDR
DNR: 2 DNR
Input power: DC 3.3 - 6V
Working temperature:-20 - 60 Deg.C
Work Humidity:20 - 80pct
● HGLRC HF1106 6000KV Brushless Motor
Motor: KV 6000KV
Stator diameter: 11mm
Stator thickness: 6mm
No.of Stator Arms: 9S
No.of Rotor poles: 12P
Motor resistance: 120mohm
Max. continuous current: 15.27A
No.of Cells ( Lipo ): 2-3S
ESC: 15A
Recommended prop: 2.5 inch
Wire type: 28AWG x 80mm
● Gemfan 2540 2.5 inch 3-blade Propeller
Quantity: 3 CW / 3 CCW
Brand: HGLRC
Type: One Machine
Type: One Machine
Package weight: 0.161 kg
Product size (L x W x H): 12.00 x 12.00 x 3.50 cm / 4.72 x 4.72 x 1.38 inches
Package size (L x W x H): 16.00 x 14.00 x 6.00 cm / 6.3 x 5.51 x 2.36 inches
Product size (L x W x H): 12.00 x 12.00 x 3.50 cm / 4.72 x 4.72 x 1.38 inches
Package size (L x W x H): 16.00 x 14.00 x 6.00 cm / 6.3 x 5.51 x 2.36 inches
Package Contents: 1 x FD411 Flight Controller, 1 x FD13A 4in1 BLS ESC, 1 x FD VTX Micro, 4 x HF1106 6000KV Brushless Motor, 1 x Parrot120 Pro Frame Kit, 1 x Caddx.us Turbo Eos2 FPV Camera, 6 x Gemfan 2540 Propeller, 1 x IPEX Antenna, 1 x Receiver
