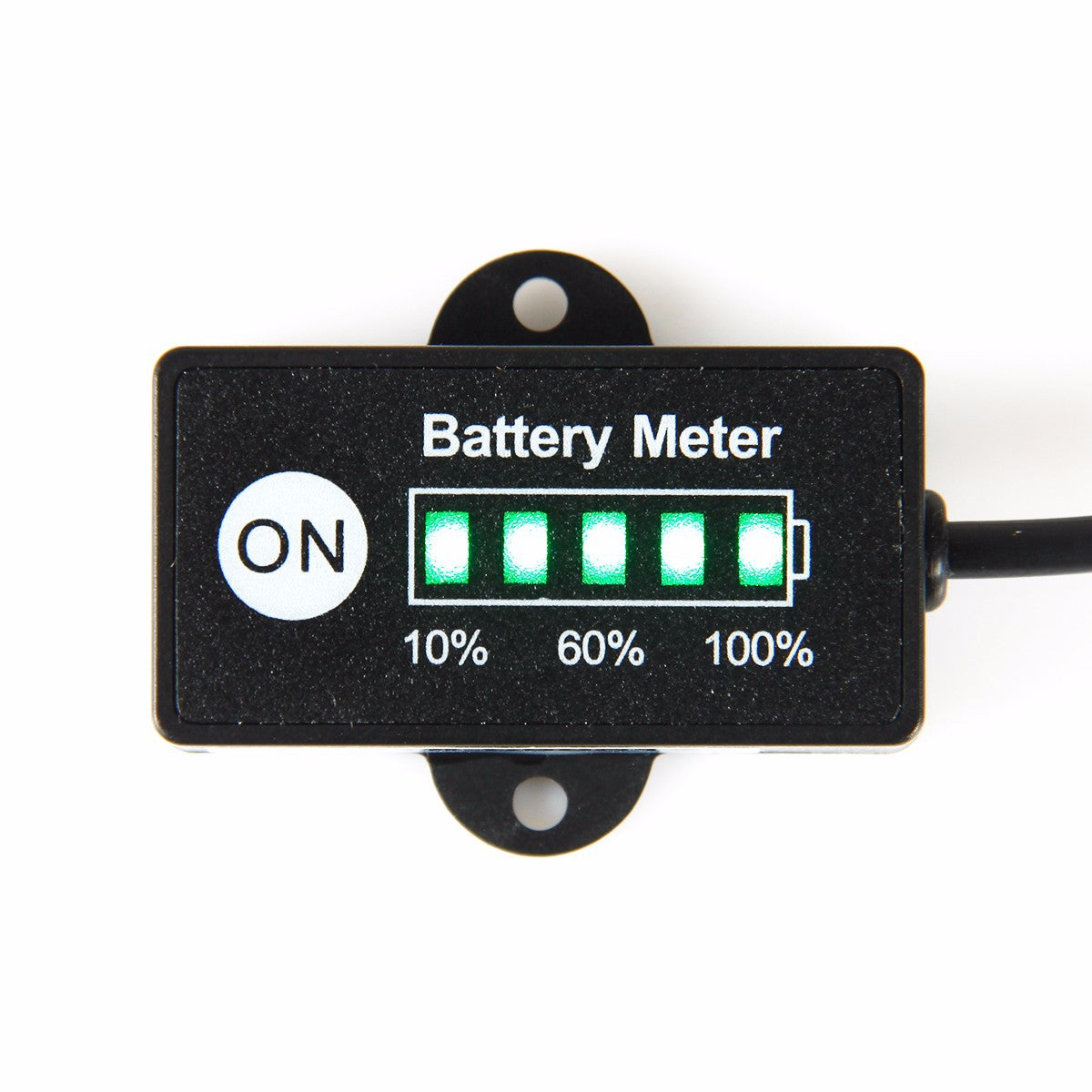

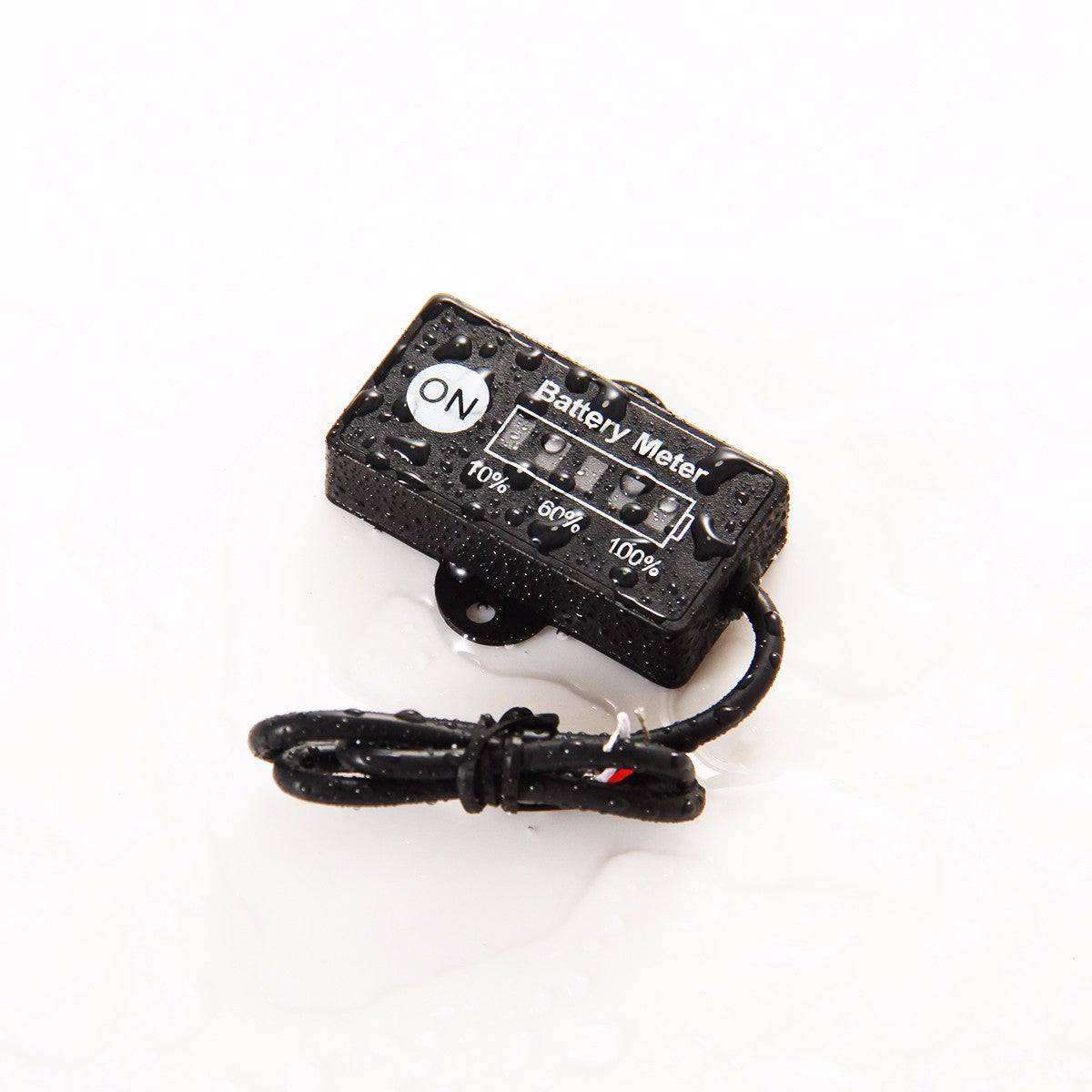

Features: -It can work on general 12V/24V lead acid storage battery. -It has a powerful battery level testing system and unique design. -Battery level testing system including:5 LED real-time display,automatic sleep,etc. -Unique Design: Easy installed by screws or zip ties,waterproof Rate IP65,etc. -This meter has 5 segment LED bar graph. Every segment will display in two methods, light flashing or lit. -This battery meter suit for 12V/24V lead acid storage battery. And voltage 12V/24V will automatically identified according to battery's voltage. No need operation by user. l -This battery meter will be automatically sleep after 30 seconds no operation. This design will help save more energy. -This gauge is designed for discharge and idle condition usage. It is not recommended for charging condition. (If you want to know the charged power, please remove the charger and wait 3~5 minutes) -CE/ROHS identification
Item Specifications: -Model Name: 12V battery indicator -Item Function: Test voltage of battery -Voltage accuracy:about 5% -Operating Temperature: -10 to 50C -Rating Input Voltage: DC 12V/24V -Rating Input Current: below 100mA -Power-off Leakage Current: below 0.5mA -Dimension: 44mm * 33.5mm * 11mm -Storage Temperature: -40 to 70C -Vibration Resistance: 5MM/50HZ/600S -Individual Packing:White box -Weight: 10g/pcs -Color: Black -Used on: Motorcycle, golf carts, car, marine, ATV, all 12/24 Volt Lead-Acid Batteries,etc.
