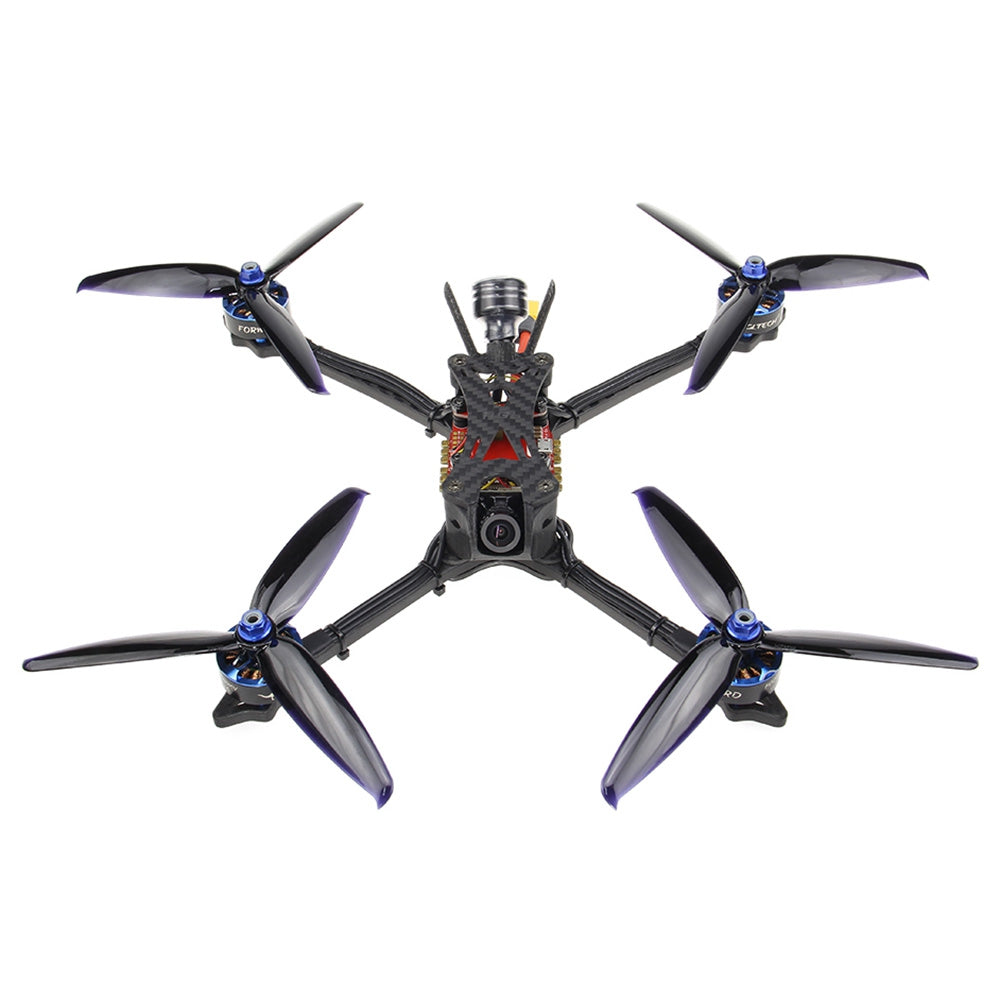

HGLRC Wind6 6S 2408 1700KV Motor FPV RC Racing Drone F7 Dual Flight Control / 65A 4-in-1 ESC
...See More
PRIVACY PROTECTED
SECURE CHECKOUT
HGLRC Wind6 6S 2408 1700KV Motor FPV RC Racing Drone F7 Dual Flight Control / 65A 4-in-1 ESC
Availability:
In Stock
|
FREE Shipping on Orders Over $20
ships worldwide |
$643.42
HGLRC Wind6 Hybrid Frame Kit:
Model: Wind6

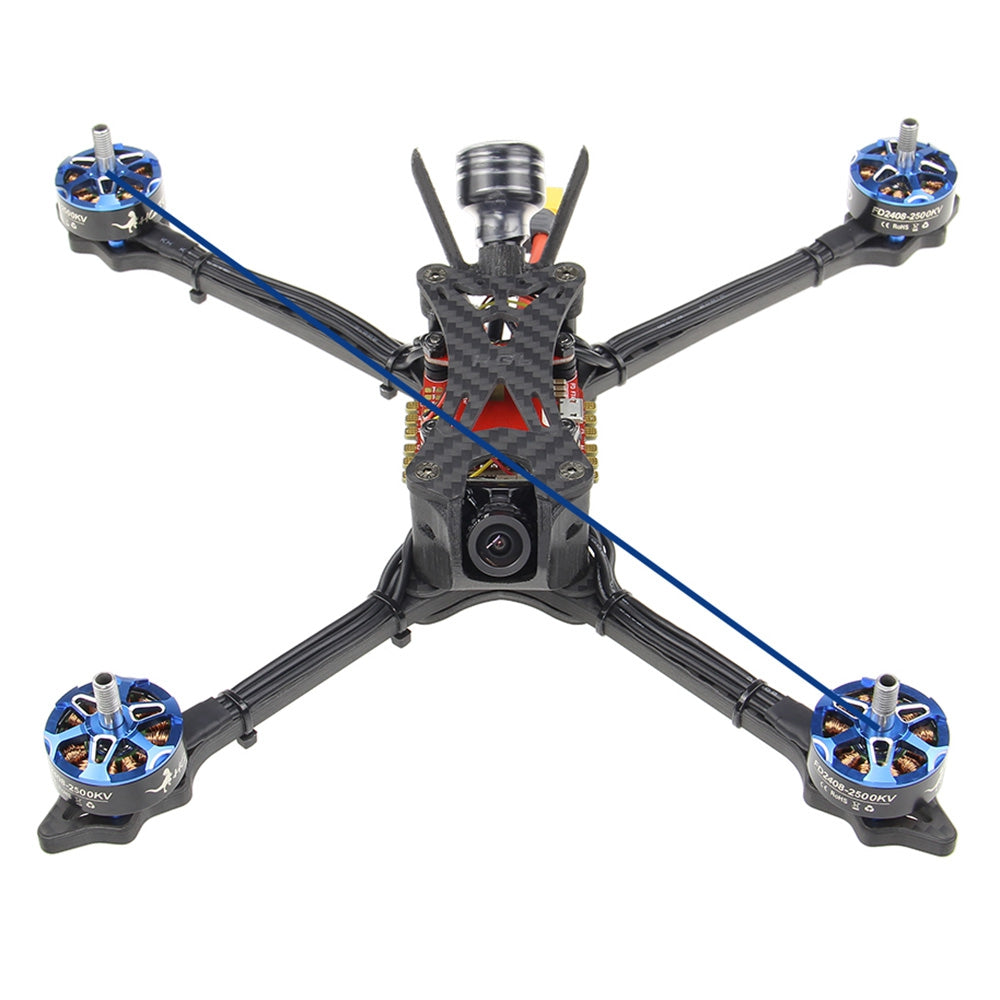

Wheelbase: 267mm
Type: 6 inch Frame
Arm thickness: 6mm
Standoff height: 28mm
Flight control installation holes: 20 x 20mm & 30 x 30mm chute type
Support camera: 19mm
Material: carbon fiber
Weight: 101g

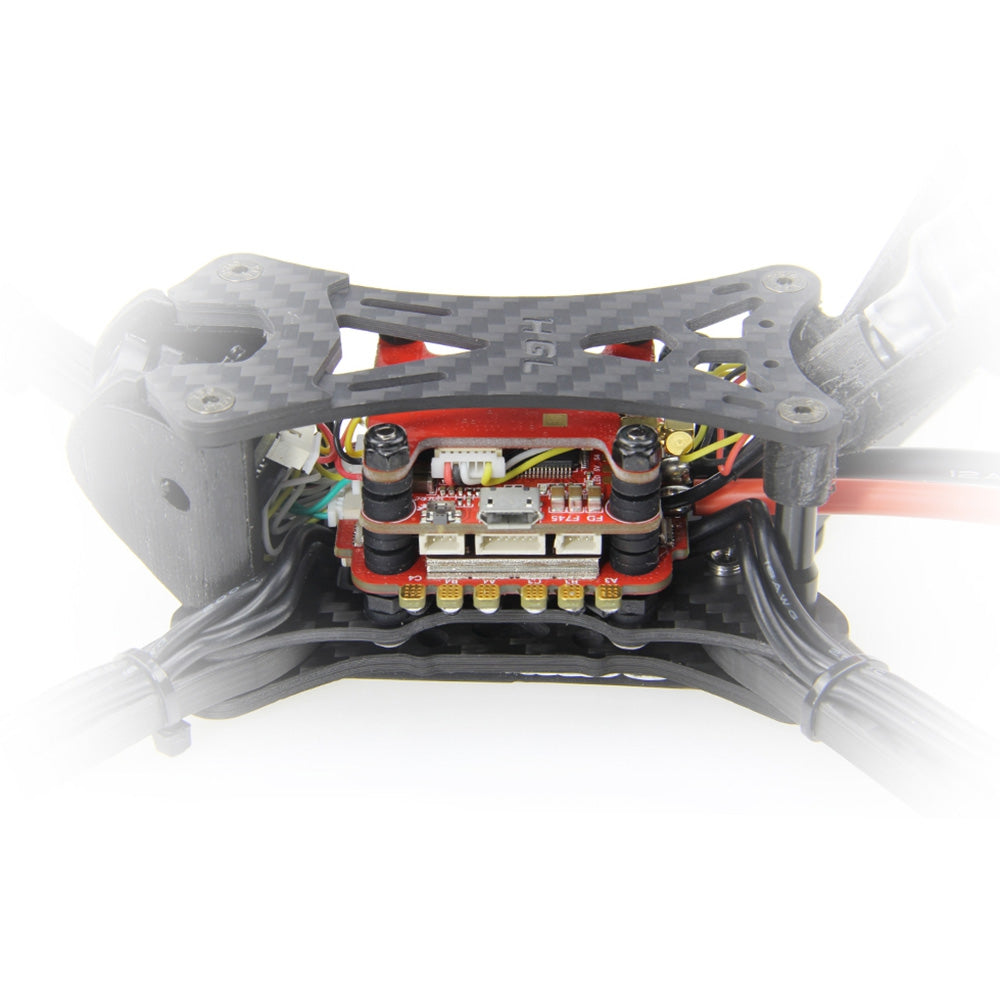

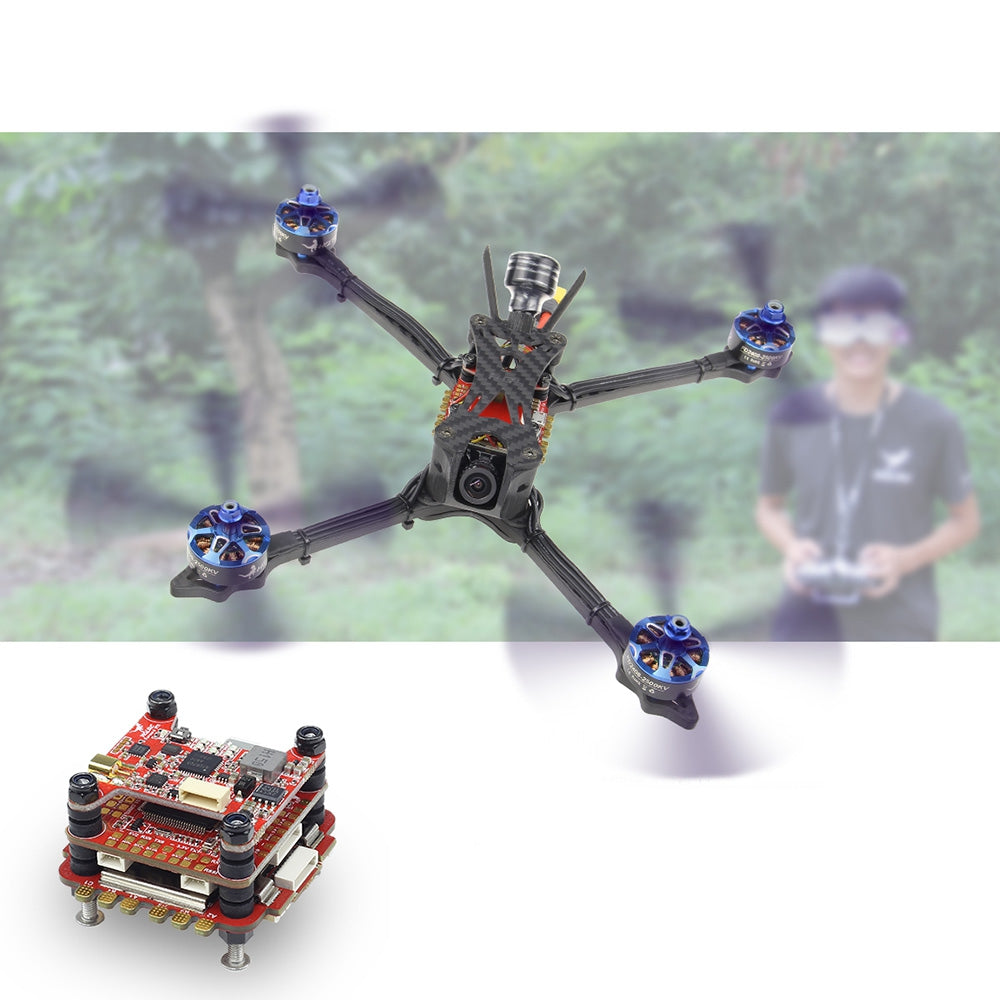

FD F7 Dual Flight Control:
MPU: ICM20608 ( 32K ) & MPU6000 - SPI
CPU: STM32F745VGT6, 32K + 16K
Input voltage: 3 - 6S LiPo
Built-in BetaFlight OSD to adjust PID
BEC output: 5V at 3A, 8V at 1.5A
LED output: 5V at 3A
Size: 37 x 37mm, 30.5mm mounting holes
Weight: 10.2g
FD 65A 3 - 6S L431 BLHeli - 32 4-in-1 ESC:
CPU: STM32L431
Input voltage: 3 - 6S LiPo
BLHELI32 firmware
Steady current: 65A
Peak current: 75A
BEC: no
Supported protocols: Dshot 1200 / 600 / 300 / 150, OneShot 125 / 42, MultiShot
Size: 46 x 45 x 6mm
Weight: 23.6g
FD VTX:
Output power: PIT / 25mW / 50mW / 100mW / 200mW / 400mW
Control mode: BFOSD control ( RX ) / button
Input: DC7 28V
BEC: 5V 1A
Video system: NTSC / PAL
Antenna: MMCX
Frequency: 5.8GHz 6 bands 48 channels with Raceband: 5362 - 5945MHz
Size: 36 x 36 x 5mm
Hole: 30.5 x 30.5mm
Weight: 5.2g

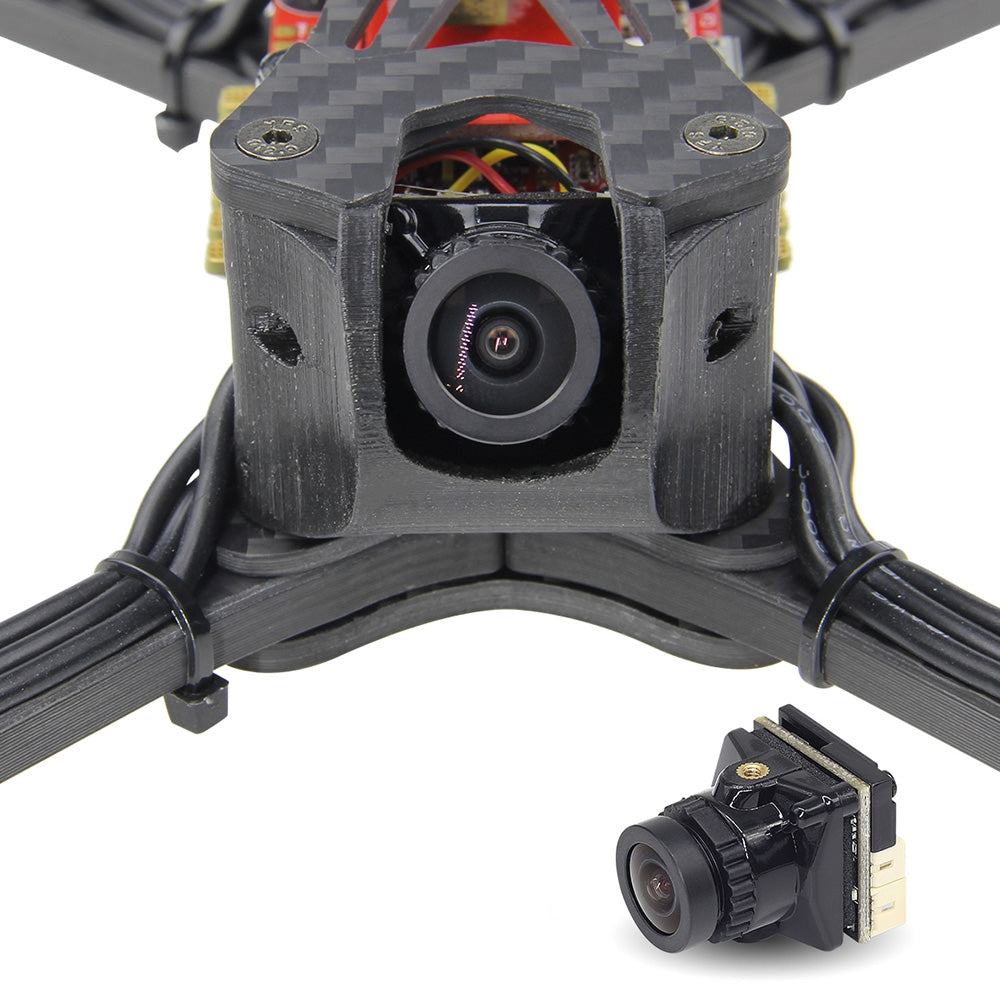

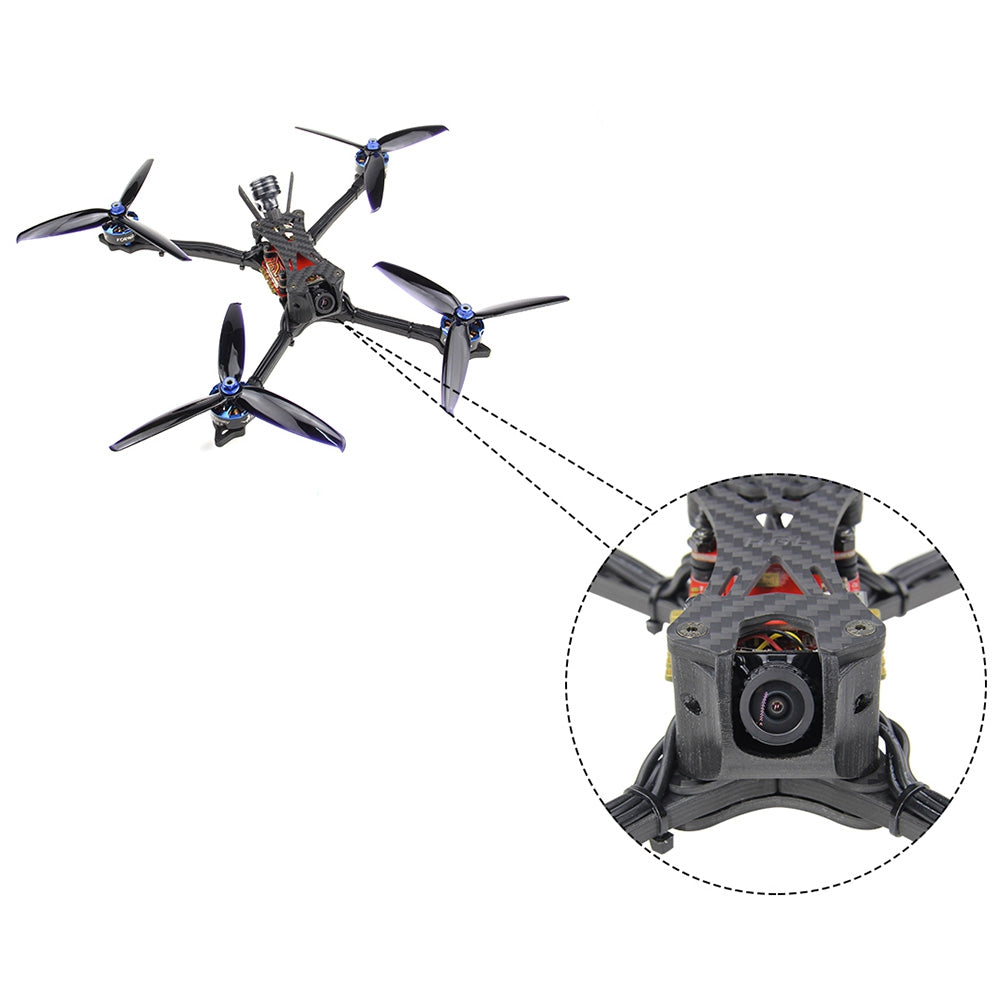

AURORA V2 FPV Camera 1200TVL:
Image sensor: 1/2.7 inch 1200TVL CMOS
TV system: PAL / NTSC switchable
Lente: 2.1mm
Min. illumination: color: 0. 05lux; BW: 0.001lux ( F1.2, 50IRE, AGC ON )
WDR: support
Lanuage: Chinese / English / Italian / Russian
OSD programming board: support
Input power: DC5V - 30V
Working temperature: - 10 ℃ - + 50 ℃
Storage temperature: - 40°C - + 60°C
Dimensions: 19mm x 19mm x 27mm
Net weight: 8.9g

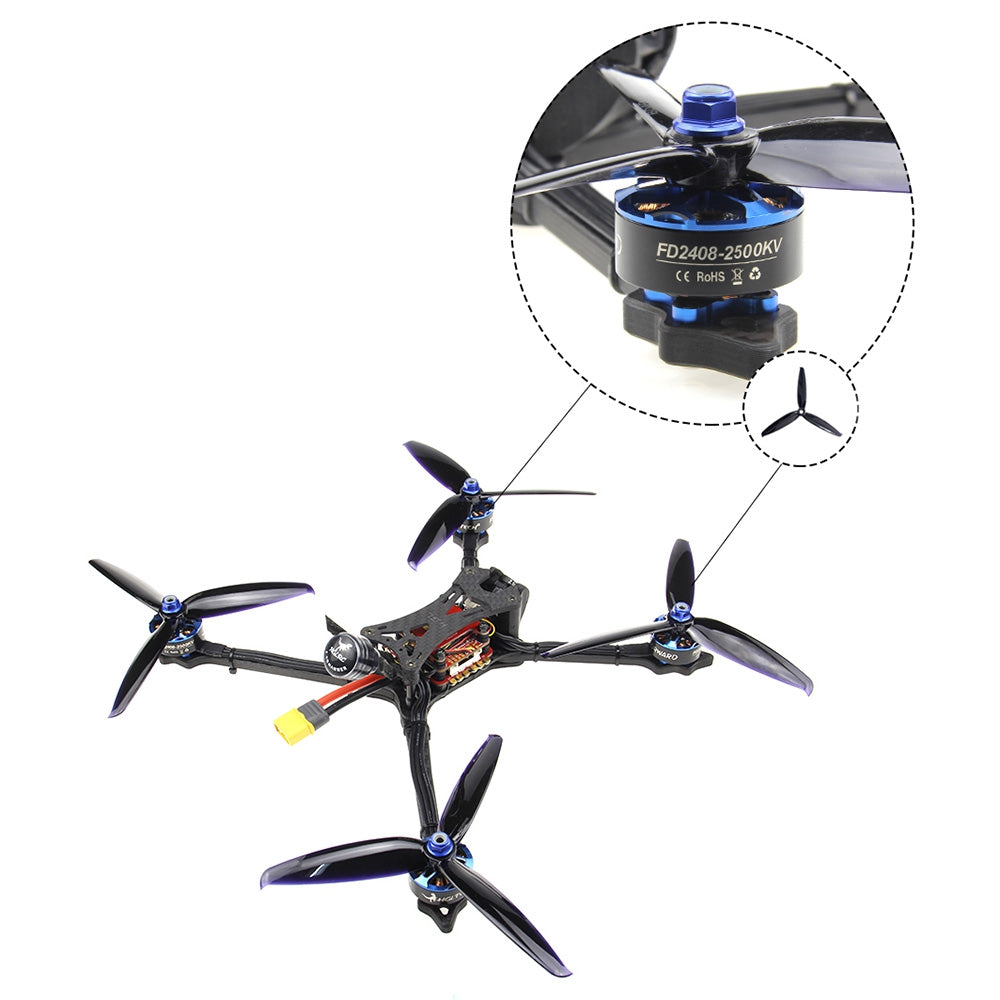

FD2408 1700KV Brushless Motor:
Motor: 1700KV
Maximum current ( A ): 46.70
Internal resistance ( mΩ ): 65
Maximum power ( W ): 1117.0
Stator diameter ( mm ): 24
Overall dimension ( mm ): Φ28.7 x 18.6
Stator height ( mm ): 8
Shaft diameter ( mm ): Φ5
No.of stator slots: 12
Lead wire size: 18AWG x 150mm
No.of rotor poles: 14
ESC: 40 - 50A
Shaft style: stainless steel SUS420
Iron core: kawasaki silicon steel sheets 0.2mm
Magnet: sintered NdFeB N45SH
Magnet wire: class H 180°C enameled wire
Rotor runout ( mm ): ≤ 0.1
Rated voltage ( V ) : 24 ( 6S )
Dynamic balance ( mg ): ≤ 10
Weight ( without wire ): 36.6g
Gemfan 6042 6 inch 3-blade Propeller:
Quantity: 3 CW & 3 CCW
Model: Wind6
Wheelbase: 267mm
Type: 6 inch Frame
Arm thickness: 6mm
Standoff height: 28mm
Flight control installation holes: 20 x 20mm & 30 x 30mm chute type
Support camera: 19mm
Material: carbon fiber
Weight: 101g
FD F7 Dual Flight Control:
MPU: ICM20608 ( 32K ) & MPU6000 - SPI
CPU: STM32F745VGT6, 32K + 16K
Input voltage: 3 - 6S LiPo
Built-in BetaFlight OSD to adjust PID
BEC output: 5V at 3A, 8V at 1.5A
LED output: 5V at 3A
Size: 37 x 37mm, 30.5mm mounting holes
Weight: 10.2g
FD 65A 3 - 6S L431 BLHeli - 32 4-in-1 ESC:
CPU: STM32L431
Input voltage: 3 - 6S LiPo
BLHELI32 firmware
Steady current: 65A
Peak current: 75A
BEC: no
Supported protocols: Dshot 1200 / 600 / 300 / 150, OneShot 125 / 42, MultiShot
Size: 46 x 45 x 6mm
Weight: 23.6g
FD VTX:
Output power: PIT / 25mW / 50mW / 100mW / 200mW / 400mW
Control mode: BFOSD control ( RX ) / button
Input: DC7 28V
BEC: 5V 1A
Video system: NTSC / PAL
Antenna: MMCX
Frequency: 5.8GHz 6 bands 48 channels with Raceband: 5362 - 5945MHz
Size: 36 x 36 x 5mm
Hole: 30.5 x 30.5mm
Weight: 5.2g
AURORA V2 FPV Camera 1200TVL:
Image sensor: 1/2.7 inch 1200TVL CMOS
TV system: PAL / NTSC switchable
Lente: 2.1mm
Min. illumination: color: 0. 05lux; BW: 0.001lux ( F1.2, 50IRE, AGC ON )
WDR: support
Lanuage: Chinese / English / Italian / Russian
OSD programming board: support
Input power: DC5V - 30V
Working temperature: - 10 ℃ - + 50 ℃
Storage temperature: - 40°C - + 60°C
Dimensions: 19mm x 19mm x 27mm
Net weight: 8.9g
FD2408 1700KV Brushless Motor:
Motor: 1700KV
Maximum current ( A ): 46.70
Internal resistance ( mΩ ): 65
Maximum power ( W ): 1117.0
Stator diameter ( mm ): 24
Overall dimension ( mm ): Φ28.7 x 18.6
Stator height ( mm ): 8
Shaft diameter ( mm ): Φ5
No.of stator slots: 12
Lead wire size: 18AWG x 150mm
No.of rotor poles: 14
ESC: 40 - 50A
Shaft style: stainless steel SUS420
Iron core: kawasaki silicon steel sheets 0.2mm
Magnet: sintered NdFeB N45SH
Magnet wire: class H 180°C enameled wire
Rotor runout ( mm ): ≤ 0.1
Rated voltage ( V ) : 24 ( 6S )
Dynamic balance ( mg ): ≤ 10
Weight ( without wire ): 36.6g
Gemfan 6042 6 inch 3-blade Propeller:
Quantity: 3 CW & 3 CCW
Brand: HGLRC
Type: One Machine
Type: One Machine
Package weight: 0.532 kg
Package size (L x W x H): 28.30 x 26.00 x 7.70 cm / 11.14 x 10.24 x 3.03 inches
Package size (L x W x H): 28.30 x 26.00 x 7.70 cm / 11.14 x 10.24 x 3.03 inches

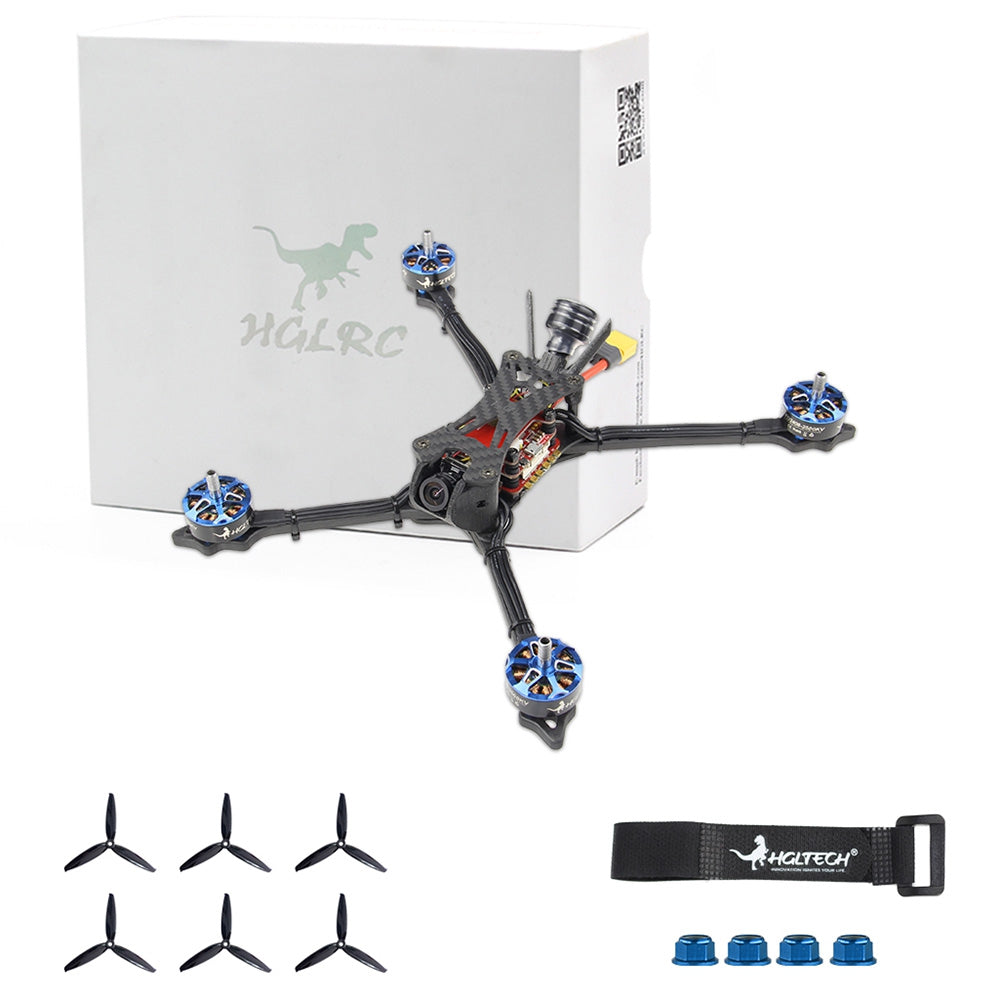

Package Contents: 1 x FD F7 Dual Flight Control, 1 x ESC, 1 x Camera, 1 x Wind6 Hybrid Frame Kit, 4 x FD2408 1700KV Motor, 6 x GF6042 Propeller, 1 x Hammer RHCP 5.8G Antenna, 1 x Battery Strap
