Descriptions: Many accidents are caused by a flat tire. As a motorcycle owner, the safety of driving is the first thing. To reduce such accidents, the installation of tire pressure monitoring system is necessary. Our product is a brand-new device, which is based on advanced Bluetooth technology. Installing these sensors, we can keep the tire working within the specified pressure and temperature range at any time to reduce the damage of the tire for safe driving.
Main features: - Advanced Bluetooth technology: The information of tire will be transmitted to the APP downloaded on your phone or tablet through Bluetooth transmission, stable and reliable.
- Real-time monitoring: Your phone will automatically transmit real-time voice alarm and display the tire status to remind you when it receives abnormal signals.

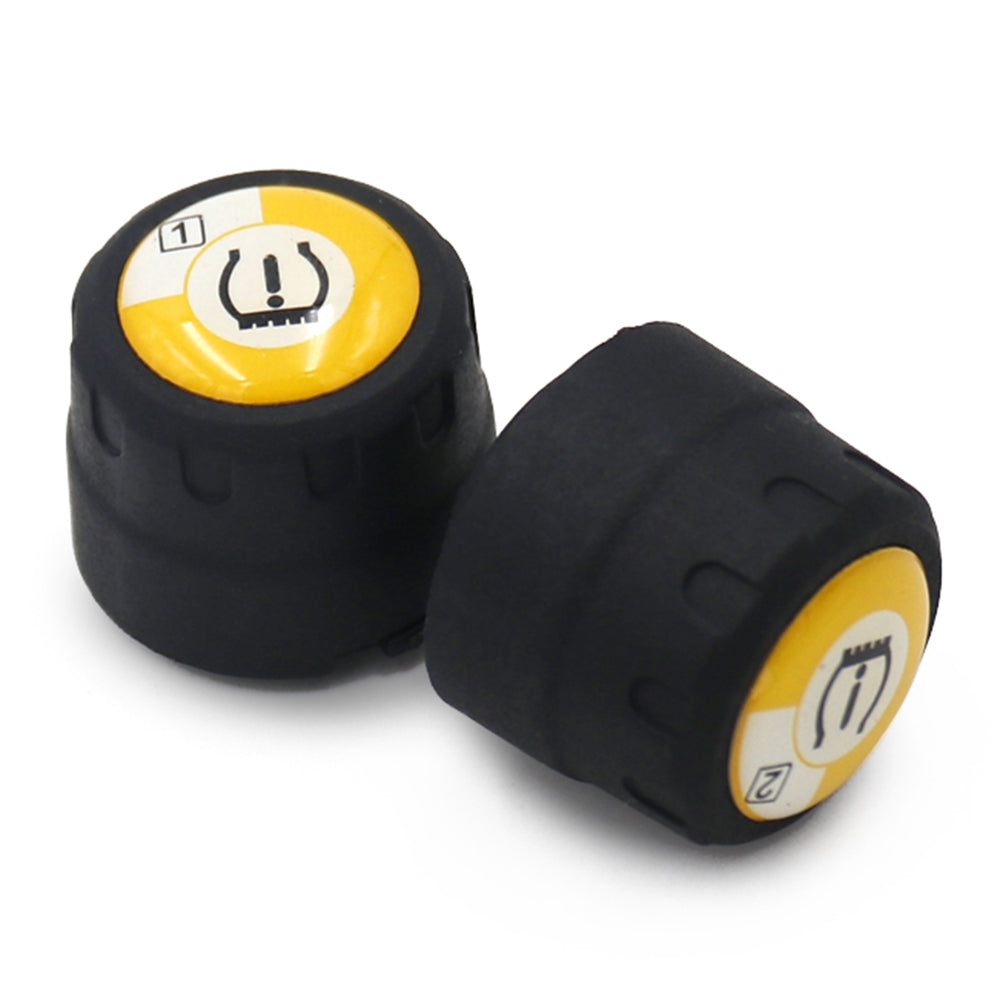

- Powerful sensors: These 2pcs external sensors are with the IP67 waterproof grade, suitable for all weathers. Besides, they are in high sensitivity and good accuracy for measuring pressure and temperature.
- Wide application: They are widely suitable for most motorcycles with 2 tires, rather easy to install, no complicated tool needed.
Specifications: - Battery: built-in 140mAh button cell - Battery service life: 3 - 5 years - Working voltage: 3V - Respond time: 5s and less - Working frequency: 2.4GHz - Working humidity: 95 percent and less - Storage temperature: minus 30 - plus 85 Deg.C - Working temperature: minus 30 - plus 80 Deg.C - Temperature accuracy: plus or minus 3 Deg.C - Monitoring range: 100 - 1300 kPa - Pressure accuracy: plus or minus 10 kPa - Waterproof grade: IP67
Package weight: 0.128 kg Product Size(L x W x H): 2.00 x 2.00 x 2.00 cm / 0.79 x 0.79 x 0.79 inches Package Size(L x W x H): 10.00 x 10.00 x 3.00 cm / 3.94 x 3.94 x 1.18 inches

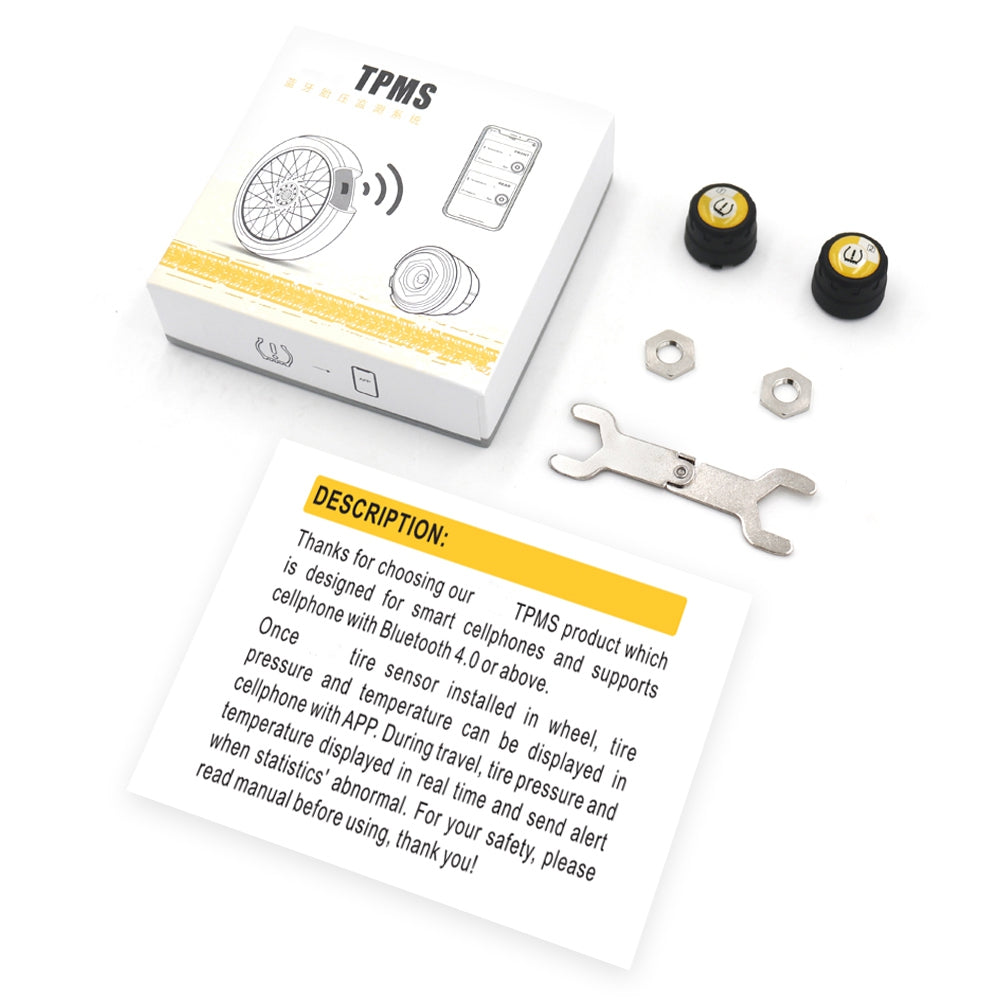

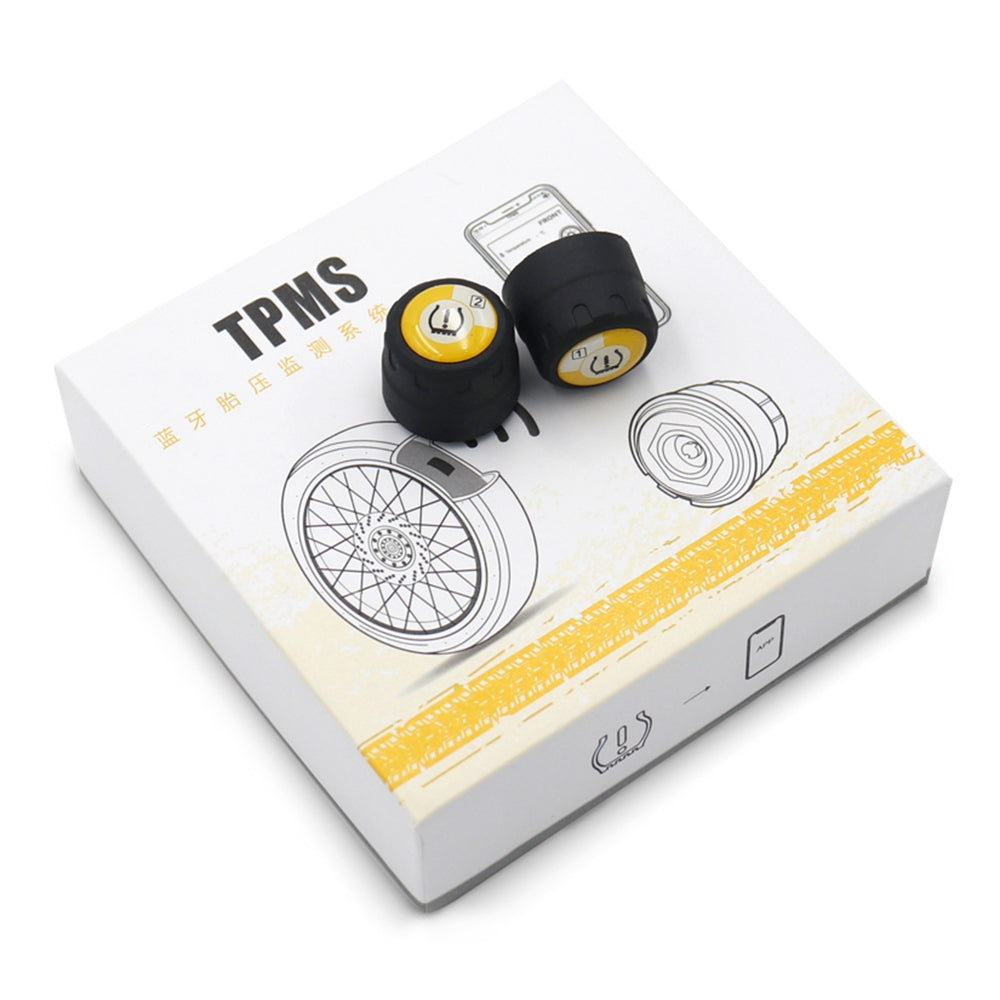

Package Contents: 2 x External Sensor, 1 x Wrench, 2 x Mounting Nut, 1 x Bilingual User Manual in Chinese and English
IPXX Rating Chart
The IP Code (or International Protection Rating, sometimes also interpreted as Ingress Protection Rating*) consists of the letters IP followed by two digits and an optional letter. As defined in international standard IEC 60529, it classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures. The standard aims to provide users more detailed information than vague marketing terms such as waterproof.
The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. For example, an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. IP22 or 2X are typical minimum requirements for the design of electrical accessories for indoor use.
