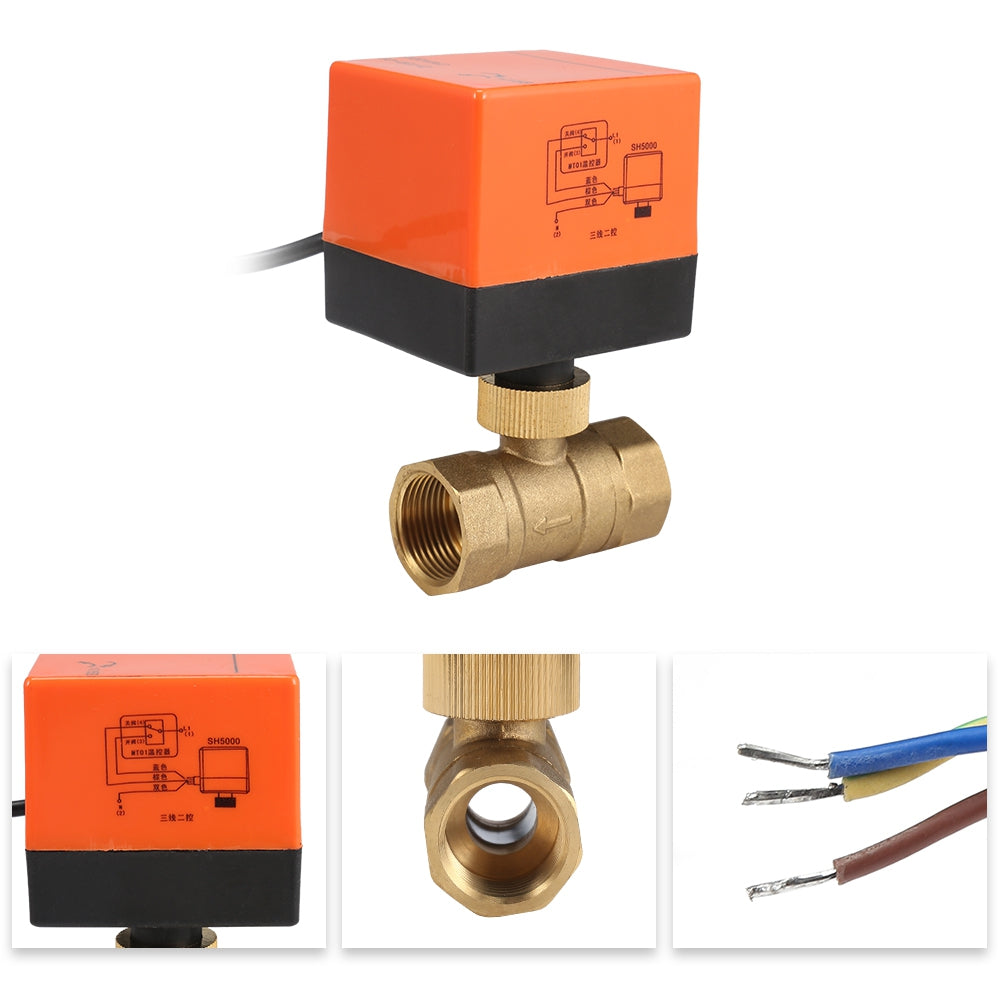

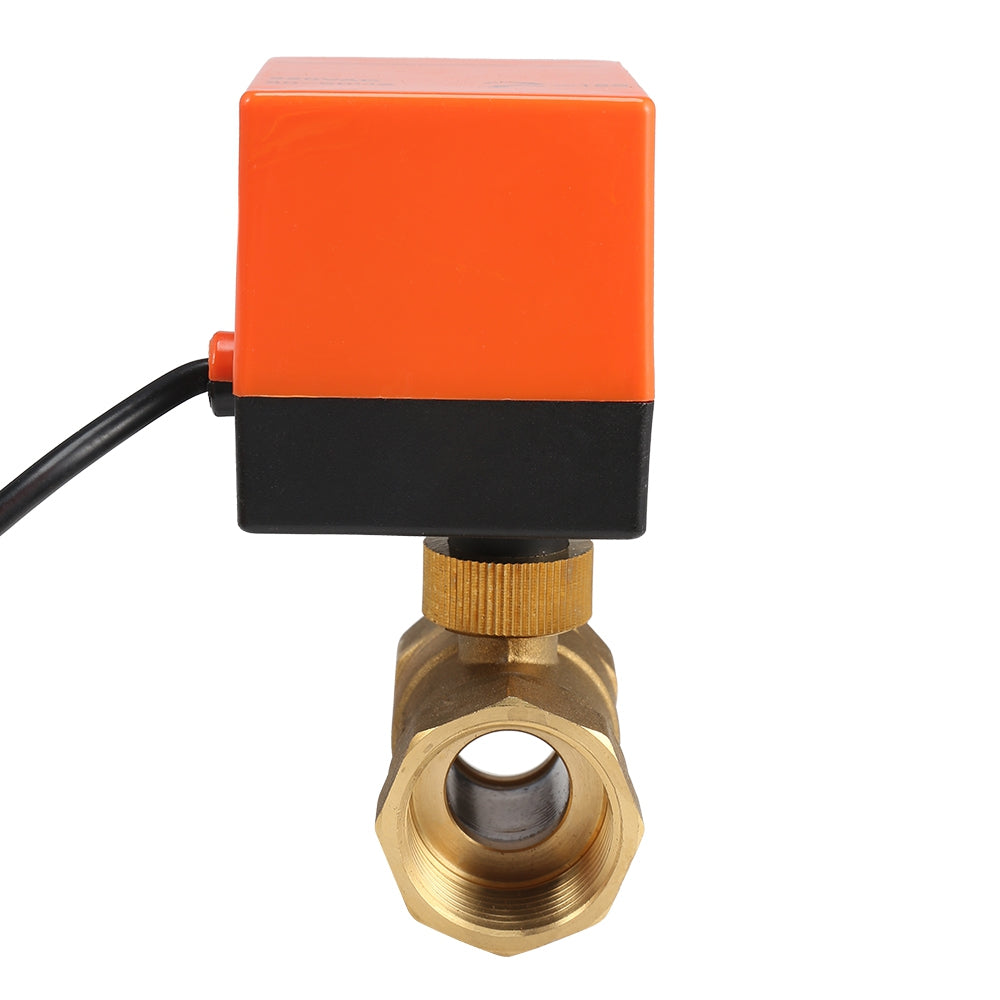

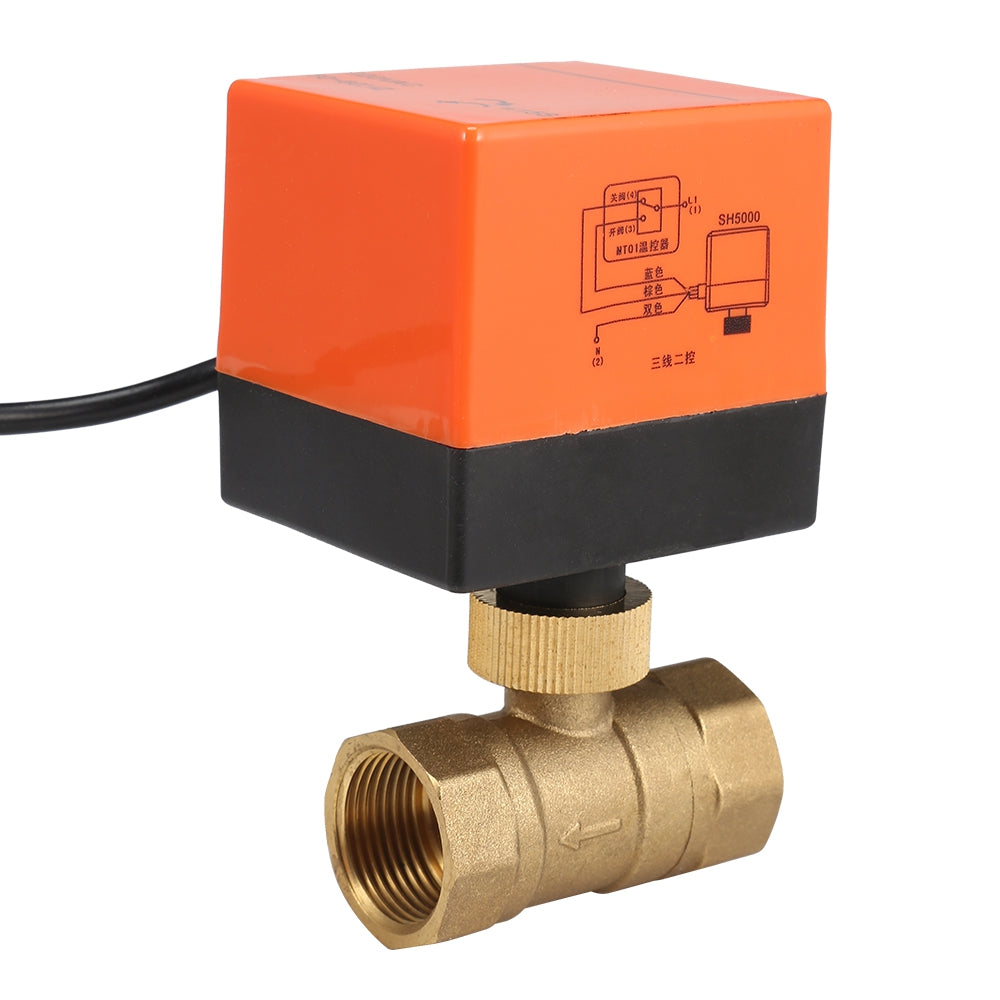

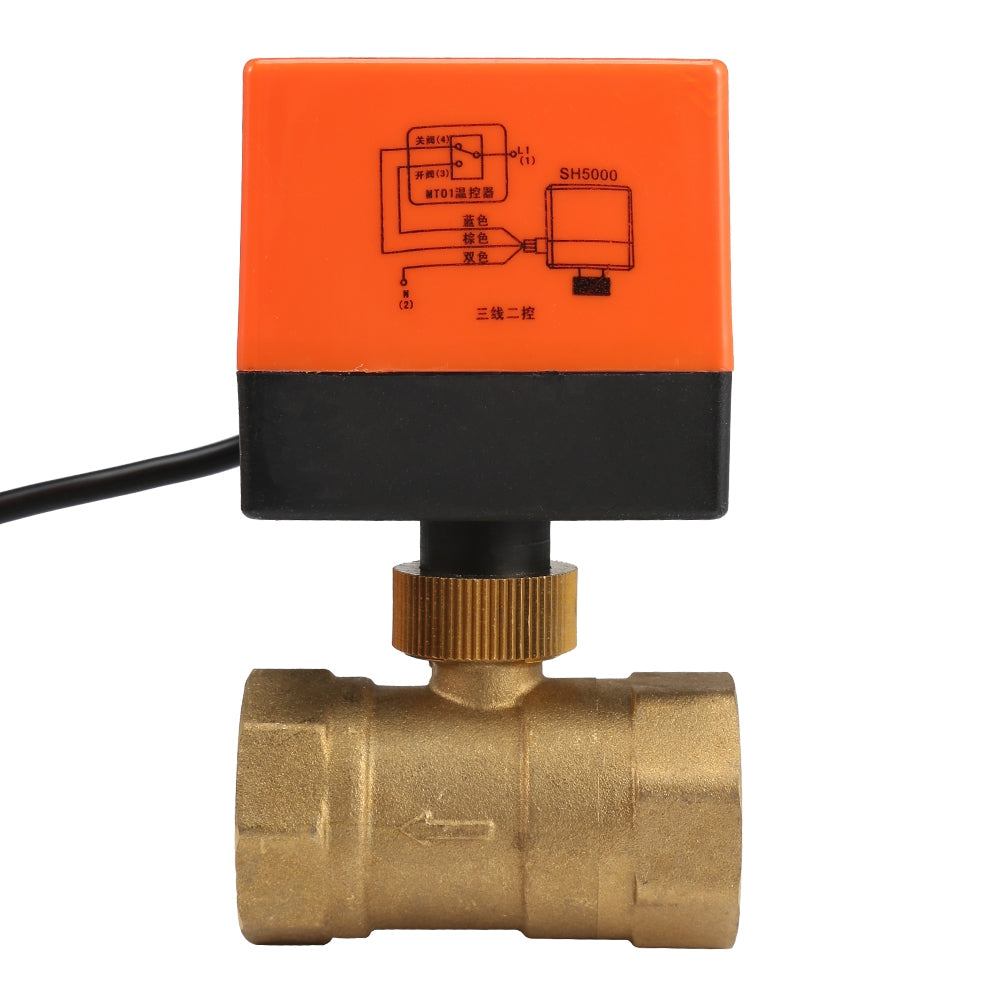

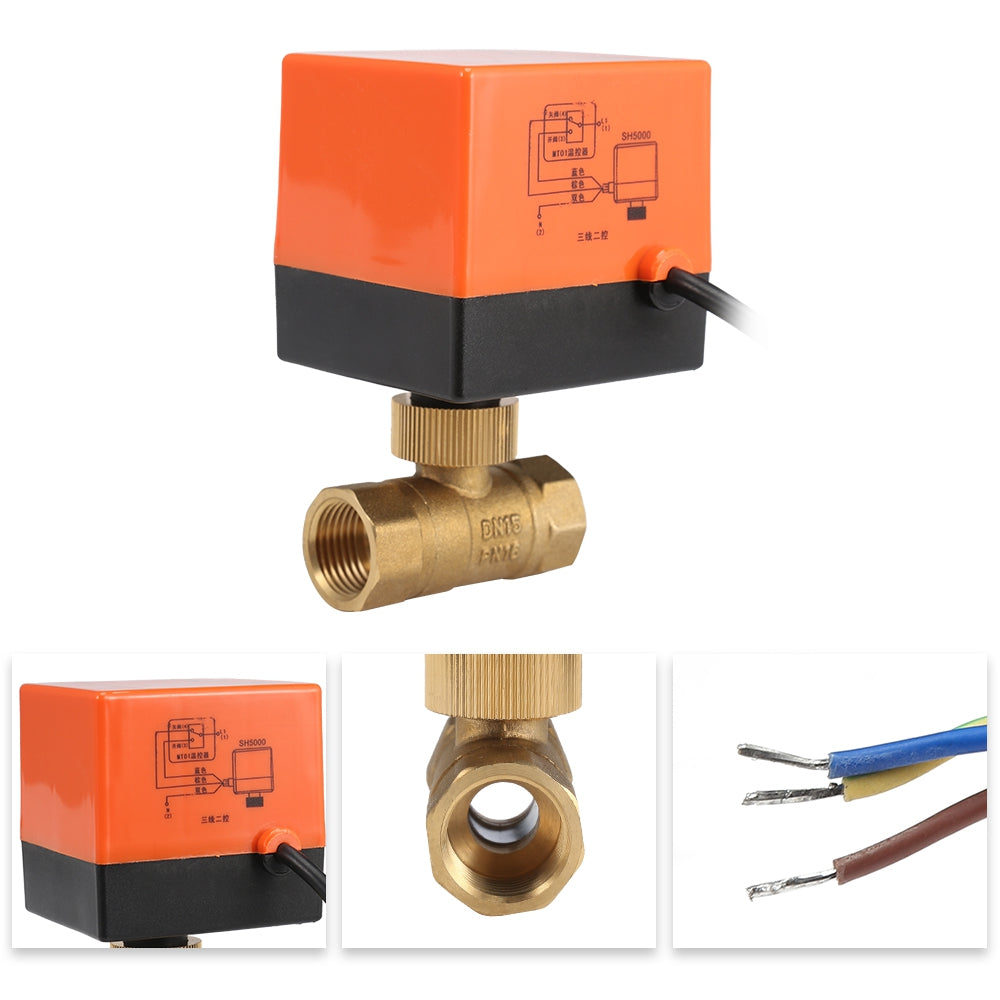

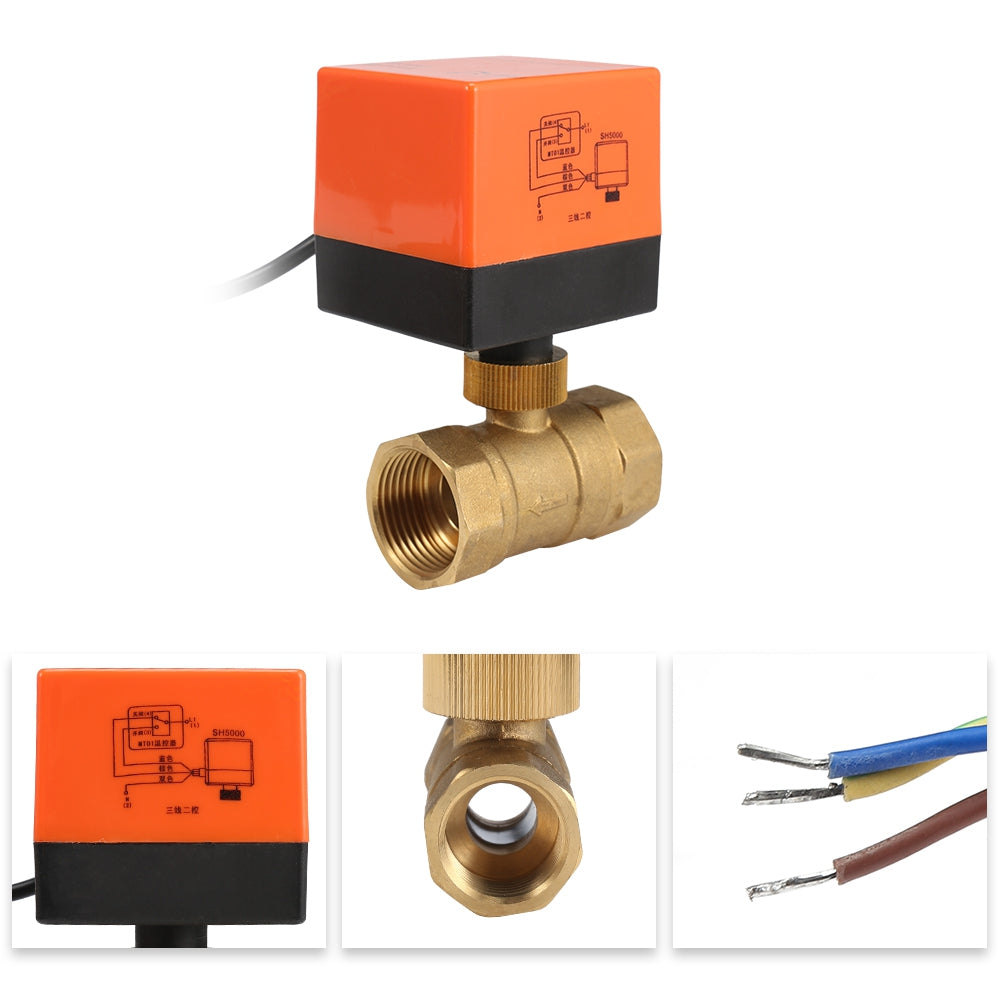

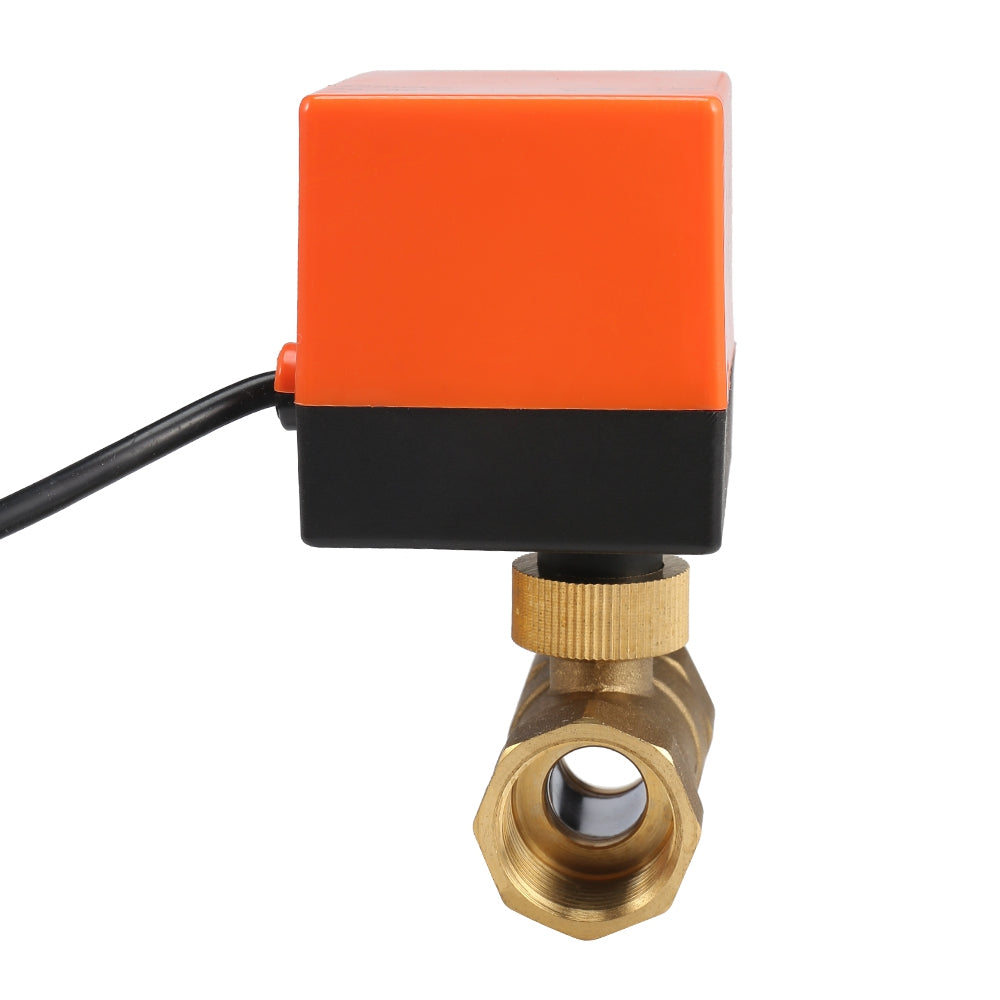

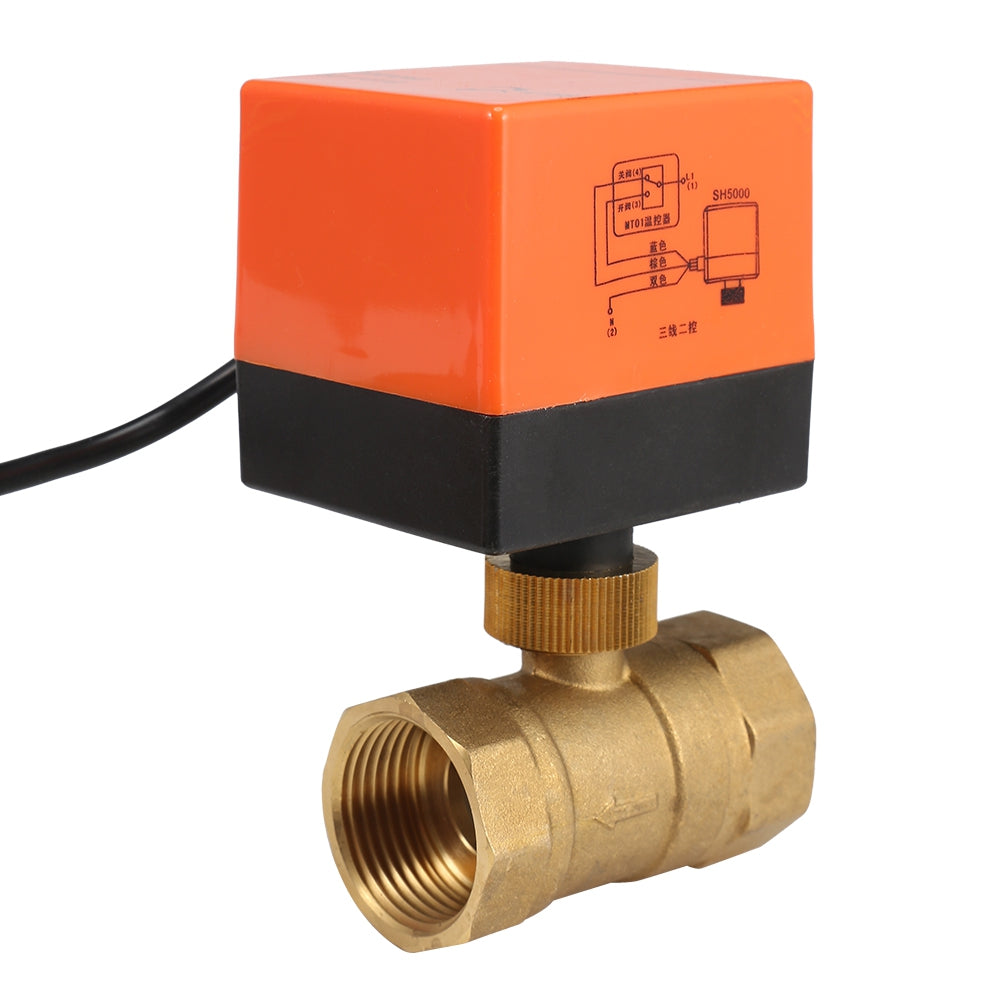

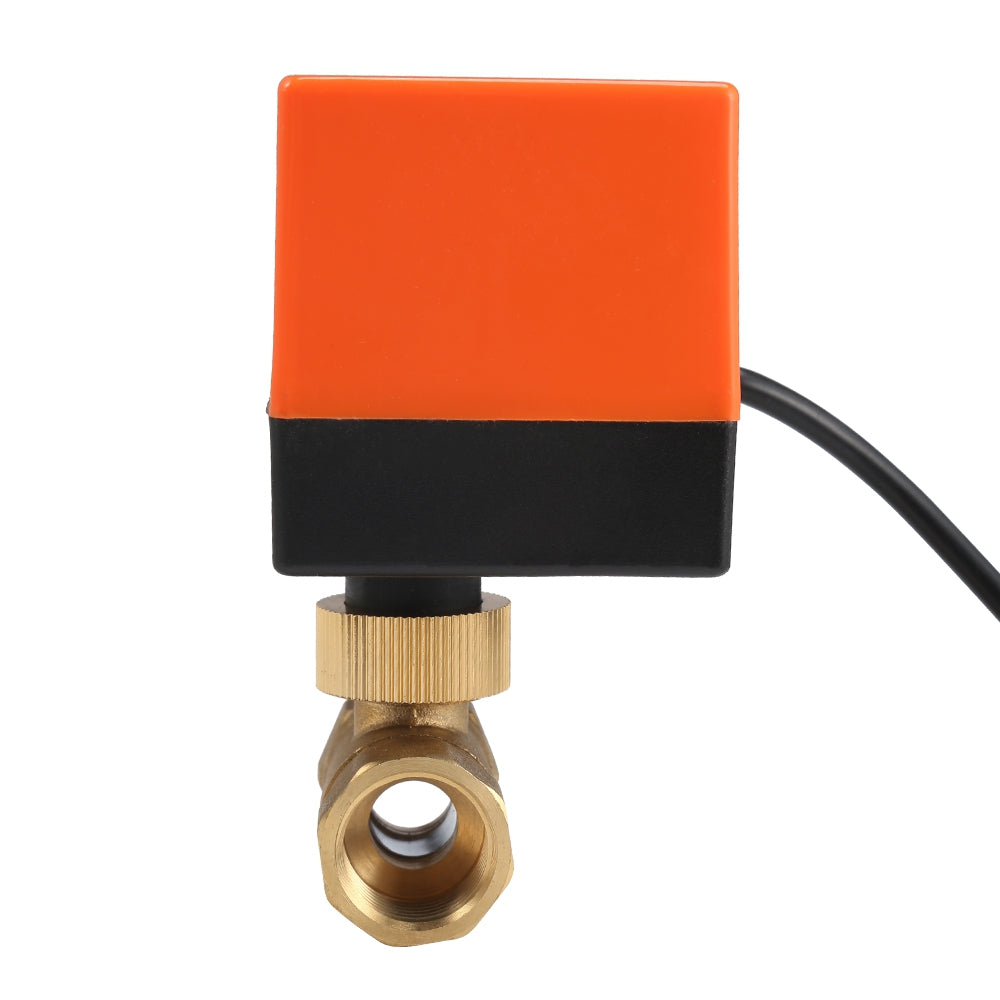

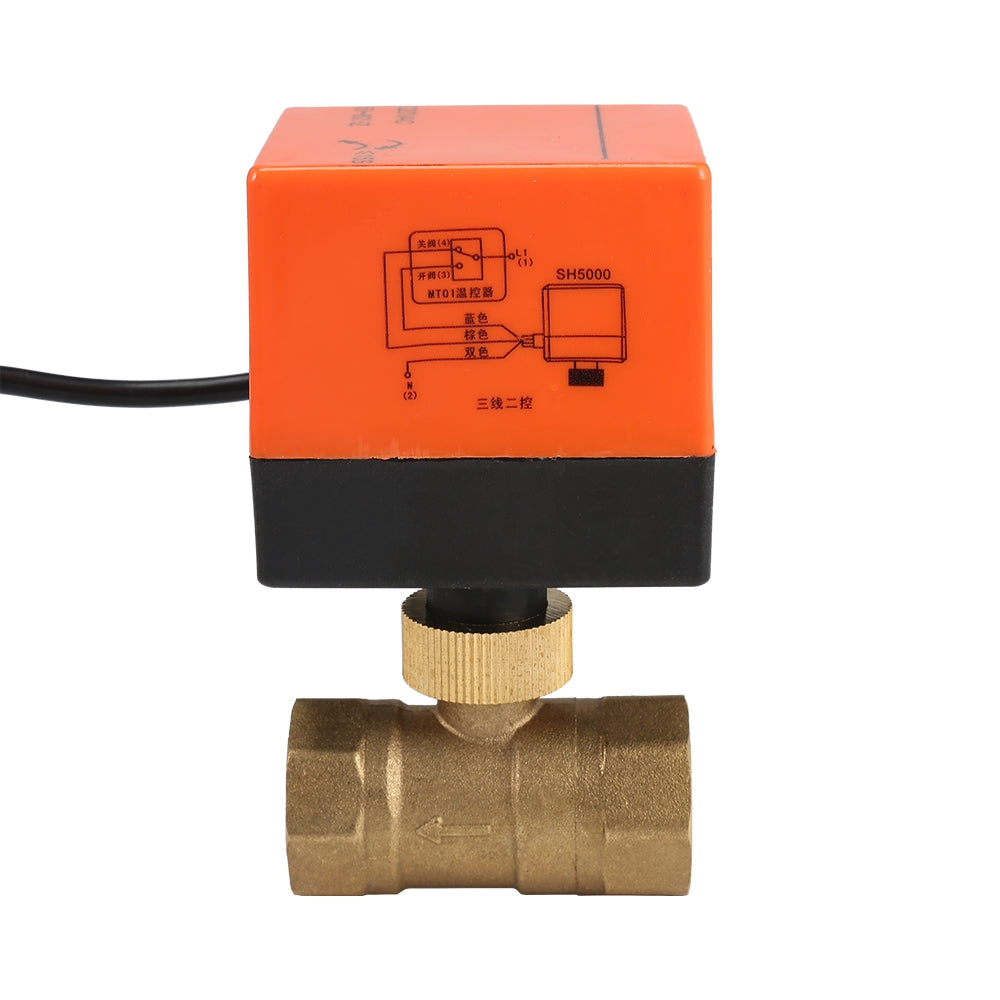

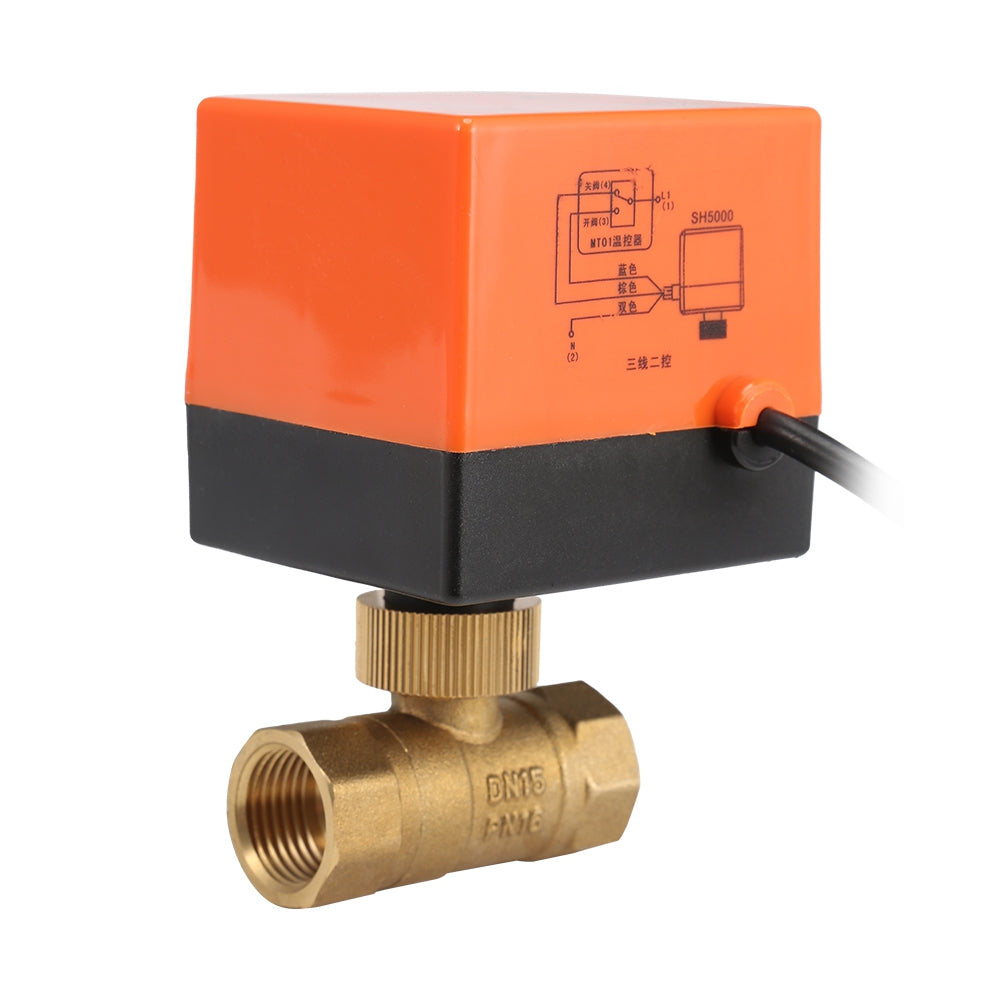

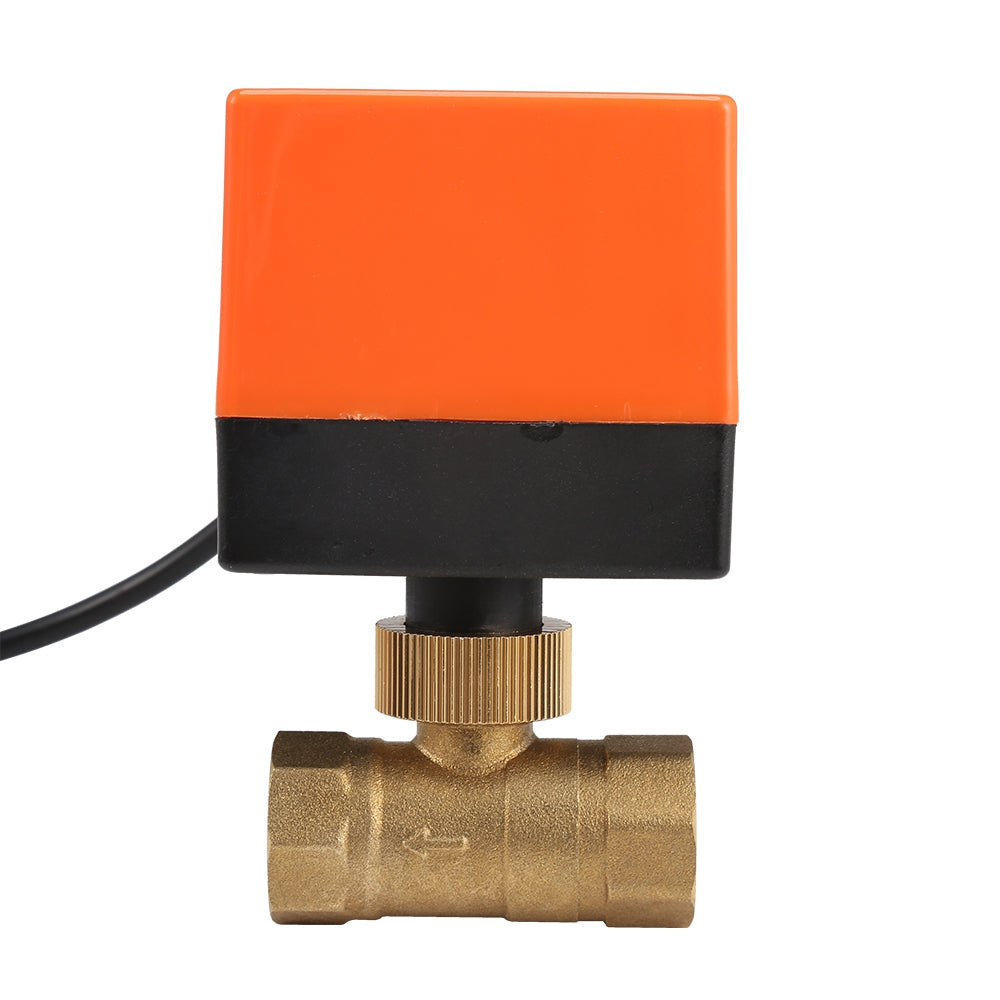

220V Electric Motorized Thread Ball Valve Air-conditioning Water System Controller 2-way 3-wire
Package size (L x W x H): 13.50 x 9.50 x 7.50 cm / 5.31 x 3.74 x 2.95 inches
Package weight: 0.469 kg
...See More
PRIVACY PROTECTED
SECURE CHECKOUT
220V Electric Motorized Thread Ball Valve Air-conditioning Water System Controller 2-way 3-wire
Availability:
In Stock
FREE Shipping on Orders Over $20
ships worldwide |
$22.42
Features:
● Electric two-way ball valve consists of an actuator and brass valve.
● Made of fine quality brass with stable performance.
● The actuator features with low noise, durability.
● Straight flow, large flow, avoid the problem of block.
● Support three wires two controls.
● Wiring is flexible and convenient, it can be installed close to the wall.
● It is easy to debug and maintain the system. It can be controlled manually.
● Easy to disassemble and assemble, it also can be installed after the equipment and pipes are installed.
● DN15, DN20 and DN25 three models for you to choose.
Specification:
Body material: forged brass, stainless steel
Valve ball material: stainless steel
Stem material: brass
Seat material: PTFE
Medium: cold water, hot water, 60% ethylene glycol
Medium temperature: 2 - 95℃
Operating temperature: -10 - 120℃
Power supply voltage: 230V
Running time: 5 - 15 seconds
Nominal pressure: 1.6MPa
Max pressure: 1.0MPa
Level of protection: IP65
Thread type: G
● Electric two-way ball valve consists of an actuator and brass valve.
● Made of fine quality brass with stable performance.
● The actuator features with low noise, durability.
● Straight flow, large flow, avoid the problem of block.
● Support three wires two controls.
● Wiring is flexible and convenient, it can be installed close to the wall.
● It is easy to debug and maintain the system. It can be controlled manually.
● Easy to disassemble and assemble, it also can be installed after the equipment and pipes are installed.
● DN15, DN20 and DN25 three models for you to choose.
Specification:
Body material: forged brass, stainless steel
Valve ball material: stainless steel
Stem material: brass
Seat material: PTFE
Medium: cold water, hot water, 60% ethylene glycol
Medium temperature: 2 - 95℃
Operating temperature: -10 - 120℃
Power supply voltage: 230V
Running time: 5 - 15 seconds
Nominal pressure: 1.6MPa
Max pressure: 1.0MPa
Level of protection: IP65
Thread type: G
Package size (L x W x H): 13.50 x 9.50 x 7.50 cm / 5.31 x 3.74 x 2.95 inches
Package Contents: 1 x Electric Motorized Thread Ball Valve
