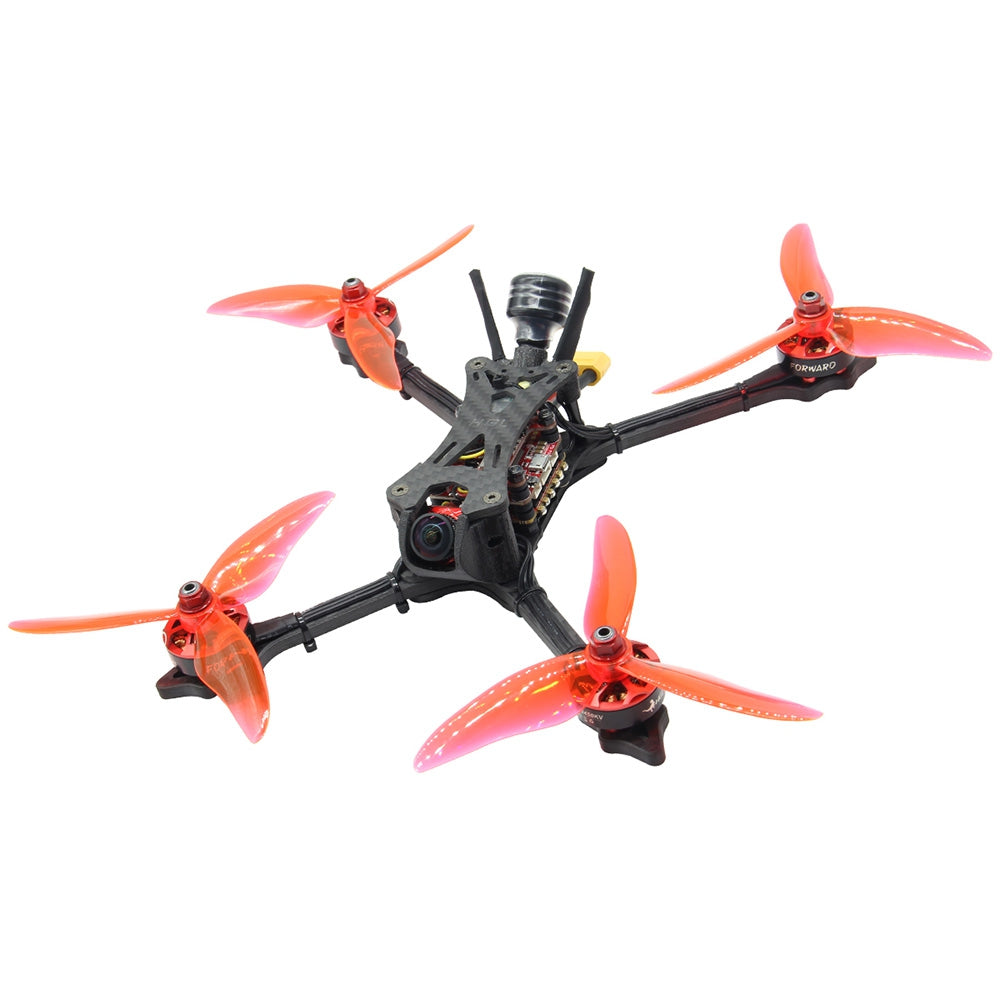

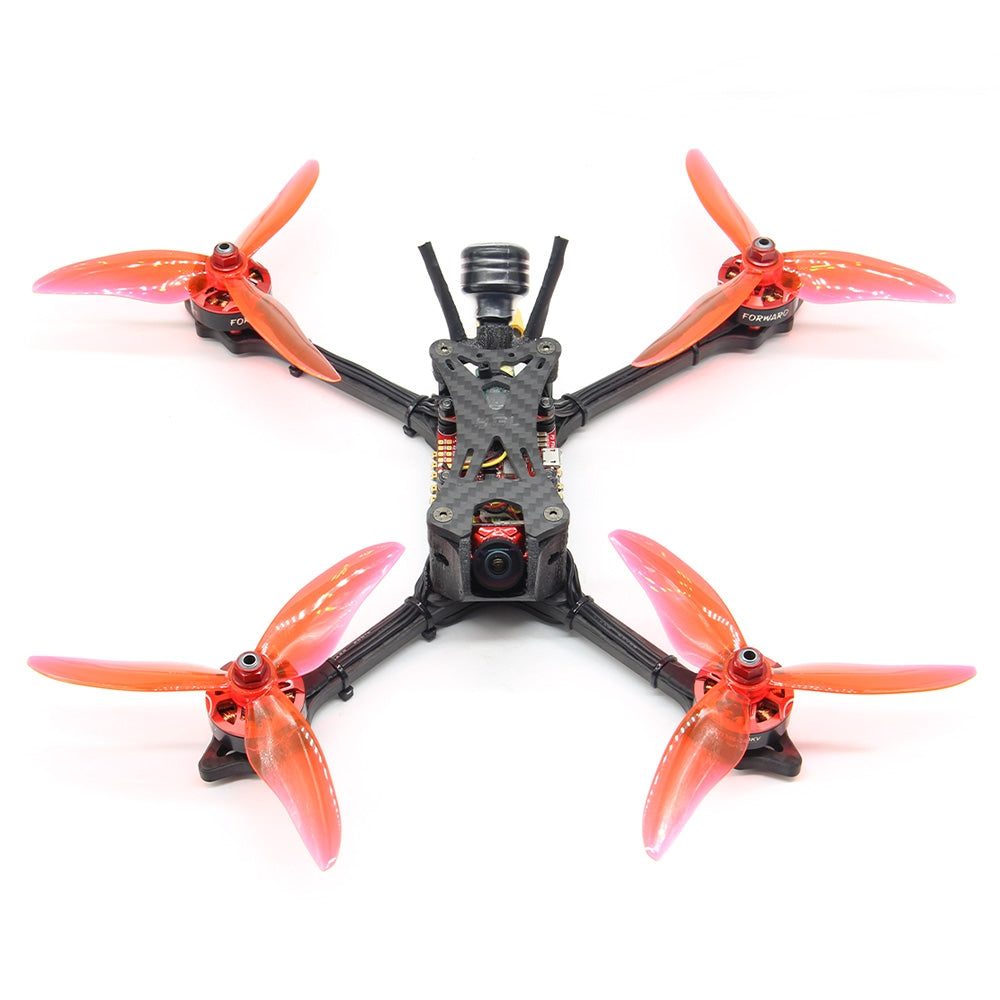

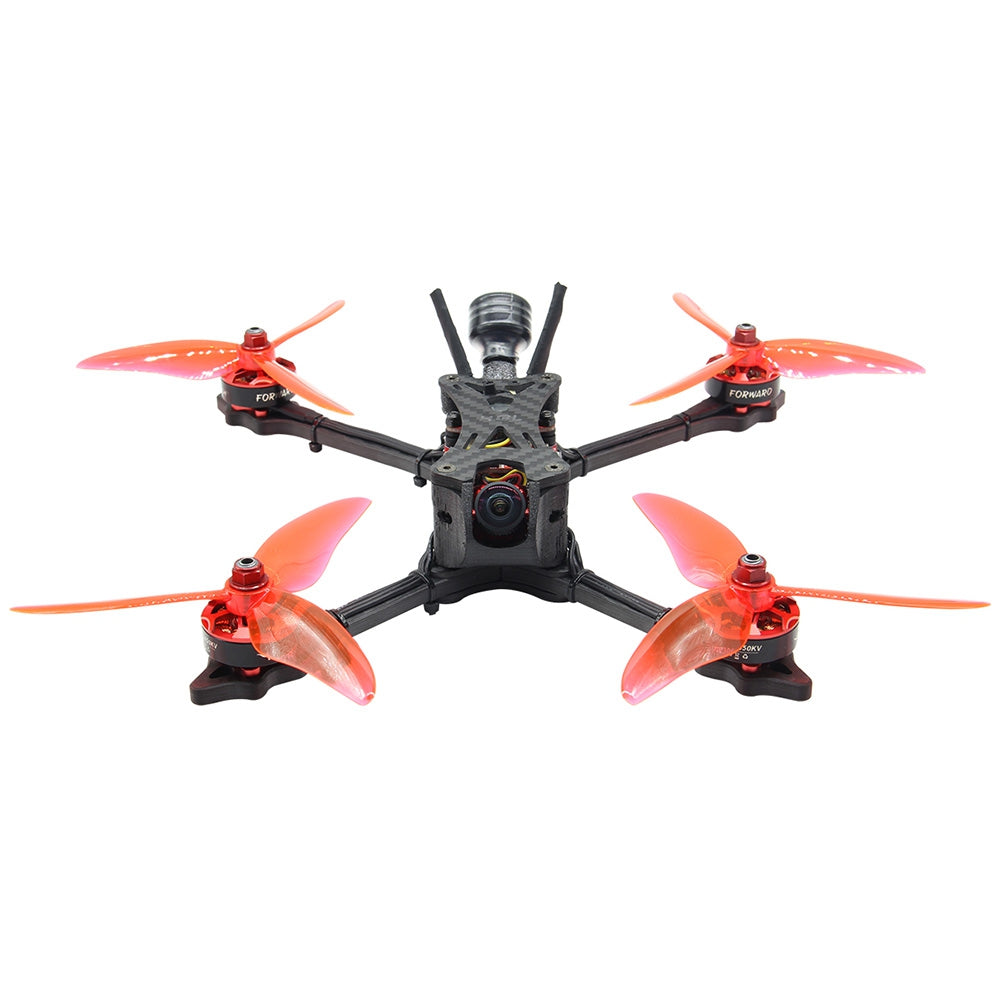

HGLRC Wind5 6S Brushless FPV Racing Drone with F7 Flight Control / 60A 4-in-1 ESC / 2306 Motor
Product size (L x W x H): 21.00 x 27.00 x 8.00 cm / 8.27 x 10.63 x 3.15 inches
Package size (L x W x H): 22.00 x 22.00 x 9.00 cm / 8.66 x 8.66 x 3.54 inches
Package weight: 0.774 kg
...See More
PRIVACY PROTECTED
SECURE CHECKOUT
HGLRC Wind5 6S Brushless FPV Racing Drone with F7 Flight Control / 60A 4-in-1 ESC / 2306 Motor
Availability:
In Stock
FREE Shipping on Orders Over $20
ships worldwide |
$604.42
Specifications:
Material: carbon fiber
Arm plate thickness: 6mm
Standoff height: 28mm
Type: 5 inch frame
Flight control installation holes: 20 x 20mm, 30 x 30mm chute type
Weight: 98.4g

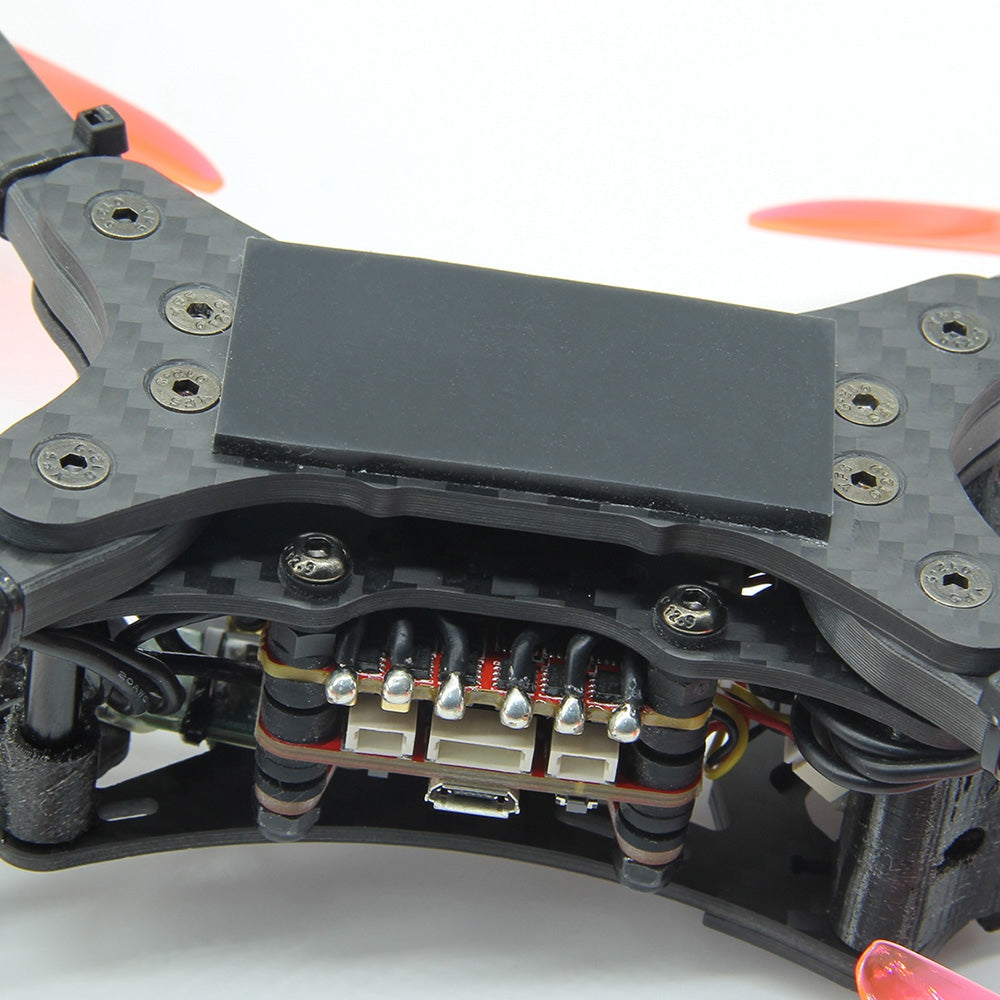

Forward F7 Dual Flight Control:
MPU: ICM20608 ( 32K ) & MPU6000 - SPI
CPU: STM32F745VGT6, 32K + 16K
Black box: no dataflash chip found
Input voltage: 3 - 6S LiPo
Built-in BetaFlight OSD to adjust PID
BEC output: 5V at 3A, 8V at 1.5A
LED output: 5V at 3A
Weight: 10.2g
Size: 37 x 37mm board, 30.5mm mounting holes
Support SBUS / PPM / DSMX receiver
Dinoshot 60A Blheli_32 3-6S 4in1 ESC:
Input voltage: 3 - 6S LiPo battery
Constant current: 60A 4S / 50A 5S / 40A 6S
Peak current: 70A
BEC output: no
Firmware: 32bit ESC with BLHeli - 32 firmware
Size: 36 x 36mm ( main board ), 40 x 48mm ( including pad )
Installing hole: 30.5 x 30.5mm, M3
Weight: 12.9g
CPU: STM32F051
MOS tube: top quality mosfet
Protocol: DSHOT1200 / 600 / 300 / 150 / Oneshot125 / 42, MultiShot damped mode
Forward VTX 5.8G 48CH FPV Transmitter:
Output power: PIT / 25mW / 100mW / 200mW / 400mW switchable
Control mode: BFOSD control ( RX ) / button
BAT: 7 - 28V, BEC 5V - 1A
Video system: NTSC / PAL
Antenna: MMCX
Frequency: 5.8GHz 6 bands 48 channels, with raceband: 5362 - 5945MHz
Size: 20 x 38mm
Hole: 30.5 x 30.5mm
Weight: 5.2g
Caddx Ratel Camera:
Lens: 1.66mm
Image sensor: 1/1.8 inch starlight HDR sensor
Horizontal resolution: 1200TVL
FOV: 180 degree
Min. latency: 8ms
TV system: NTSC & PAL ( changeable )
Image: 16:9 & 4:3 ( changeable )
WDR: super WDR ( HDR )
Min. illumination: starlight
Synchronization: internal
Electronic shutter: PAL: 1/50 - 100000; NTSC: 1/60 - 100000
S/N ratio: > 60dB ( AGC OFF )
Video output: CVBS
Camera OSD: separate OSD
DNR: 3 - DNR
Language: ENG / FRANCE / RUS / SPA / PU / KOREA / CHN / JAPAN
Day / night: auto / color / B & W / EXT
Dimensions: 19mm x 19mm x 19mm
Wide power input: DC 5 - 40V
Work temperature: -20 - + 60 Deg.C
Work humidity: 20 - 80%
Forward FD2306 1600KV Brushless Motor:
Internal resistance: 93mΩ
Stator diameter: 23mm
Stator height: 6mm
No.of stator slots: 12S
No.of rotor poles: 14P
Max continuous current: 23.44A ( 60S )
Max continuous power: 866.7W
Shaft diameter: 5mm
Overall dimension: 27.9 x 30.7mm
Lead wire size: 20AWG x 150 mm
ESC: 50A
No.of cells ( LiPo ): 25.2V ( 6S )
Weight: 32g
Item name: Gemfan 51499 3-blade propeller
Quantity: 3 CW & 3 CCW
Material: carbon fiber
Arm plate thickness: 6mm
Standoff height: 28mm
Type: 5 inch frame
Flight control installation holes: 20 x 20mm, 30 x 30mm chute type
Weight: 98.4g
Forward F7 Dual Flight Control:
MPU: ICM20608 ( 32K ) & MPU6000 - SPI
CPU: STM32F745VGT6, 32K + 16K
Black box: no dataflash chip found
Input voltage: 3 - 6S LiPo
Built-in BetaFlight OSD to adjust PID
BEC output: 5V at 3A, 8V at 1.5A
LED output: 5V at 3A
Weight: 10.2g
Size: 37 x 37mm board, 30.5mm mounting holes
Support SBUS / PPM / DSMX receiver
Dinoshot 60A Blheli_32 3-6S 4in1 ESC:
Input voltage: 3 - 6S LiPo battery
Constant current: 60A 4S / 50A 5S / 40A 6S
Peak current: 70A
BEC output: no
Firmware: 32bit ESC with BLHeli - 32 firmware
Size: 36 x 36mm ( main board ), 40 x 48mm ( including pad )
Installing hole: 30.5 x 30.5mm, M3
Weight: 12.9g
CPU: STM32F051
MOS tube: top quality mosfet
Protocol: DSHOT1200 / 600 / 300 / 150 / Oneshot125 / 42, MultiShot damped mode
Forward VTX 5.8G 48CH FPV Transmitter:
Output power: PIT / 25mW / 100mW / 200mW / 400mW switchable
Control mode: BFOSD control ( RX ) / button
BAT: 7 - 28V, BEC 5V - 1A
Video system: NTSC / PAL
Antenna: MMCX
Frequency: 5.8GHz 6 bands 48 channels, with raceband: 5362 - 5945MHz
Size: 20 x 38mm
Hole: 30.5 x 30.5mm
Weight: 5.2g
Caddx Ratel Camera:
Lens: 1.66mm
Image sensor: 1/1.8 inch starlight HDR sensor
Horizontal resolution: 1200TVL
FOV: 180 degree
Min. latency: 8ms
TV system: NTSC & PAL ( changeable )
Image: 16:9 & 4:3 ( changeable )
WDR: super WDR ( HDR )
Min. illumination: starlight
Synchronization: internal
Electronic shutter: PAL: 1/50 - 100000; NTSC: 1/60 - 100000
S/N ratio: > 60dB ( AGC OFF )
Video output: CVBS
Camera OSD: separate OSD
DNR: 3 - DNR
Language: ENG / FRANCE / RUS / SPA / PU / KOREA / CHN / JAPAN
Day / night: auto / color / B & W / EXT
Dimensions: 19mm x 19mm x 19mm
Wide power input: DC 5 - 40V
Work temperature: -20 - + 60 Deg.C
Work humidity: 20 - 80%
Forward FD2306 1600KV Brushless Motor:
Internal resistance: 93mΩ
Stator diameter: 23mm
Stator height: 6mm
No.of stator slots: 12S
No.of rotor poles: 14P
Max continuous current: 23.44A ( 60S )
Max continuous power: 866.7W
Shaft diameter: 5mm
Overall dimension: 27.9 x 30.7mm
Lead wire size: 20AWG x 150 mm
ESC: 50A
No.of cells ( LiPo ): 25.2V ( 6S )
Weight: 32g
Item name: Gemfan 51499 3-blade propeller
Quantity: 3 CW & 3 CCW
Brand: HGLRC
Type: One Machine
Type: One Machine
Product size (L x W x H): 21.00 x 27.00 x 8.00 cm / 8.27 x 10.63 x 3.15 inches
Package size (L x W x H): 22.00 x 22.00 x 9.00 cm / 8.66 x 8.66 x 3.54 inches

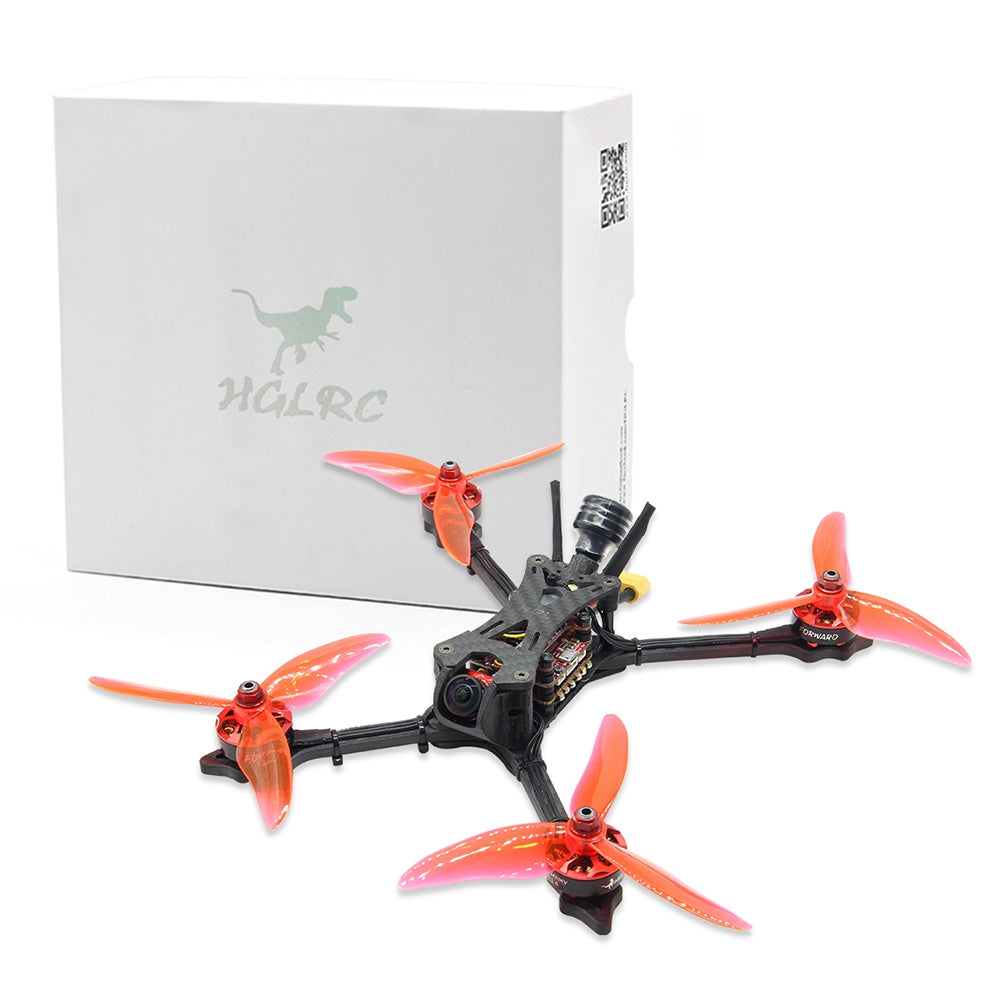

Package Contents: 1 x Frame Kit, 1 x Flight Control, 1 x 4-in-1 ESC, 1 x FPV Transmitter, 1 x Caddx Ratel Camera, 4 x Brushless Motor, 6 x GF51499 Propeller, 1 x 10CM SMA Pigtail W/IPEX Connector, 1 x Hammer 5.8G Antenna, 1 x Receiver
