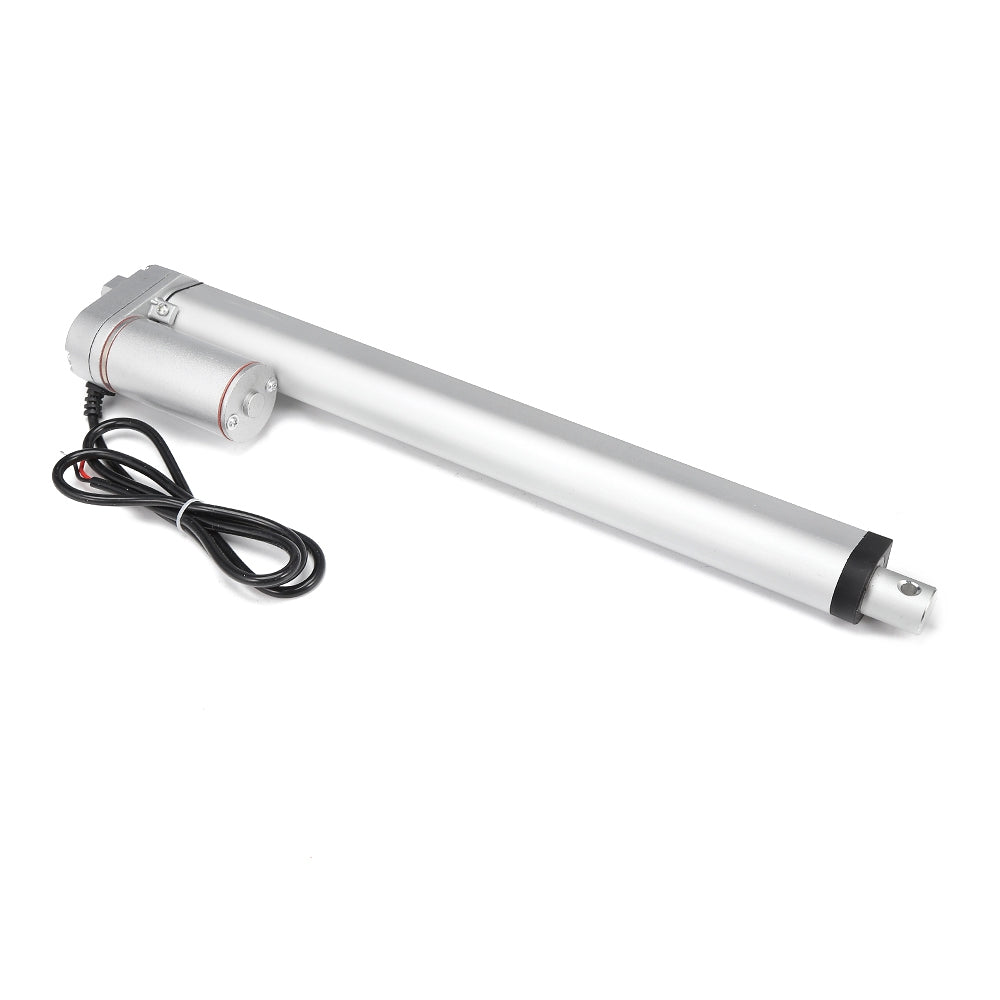

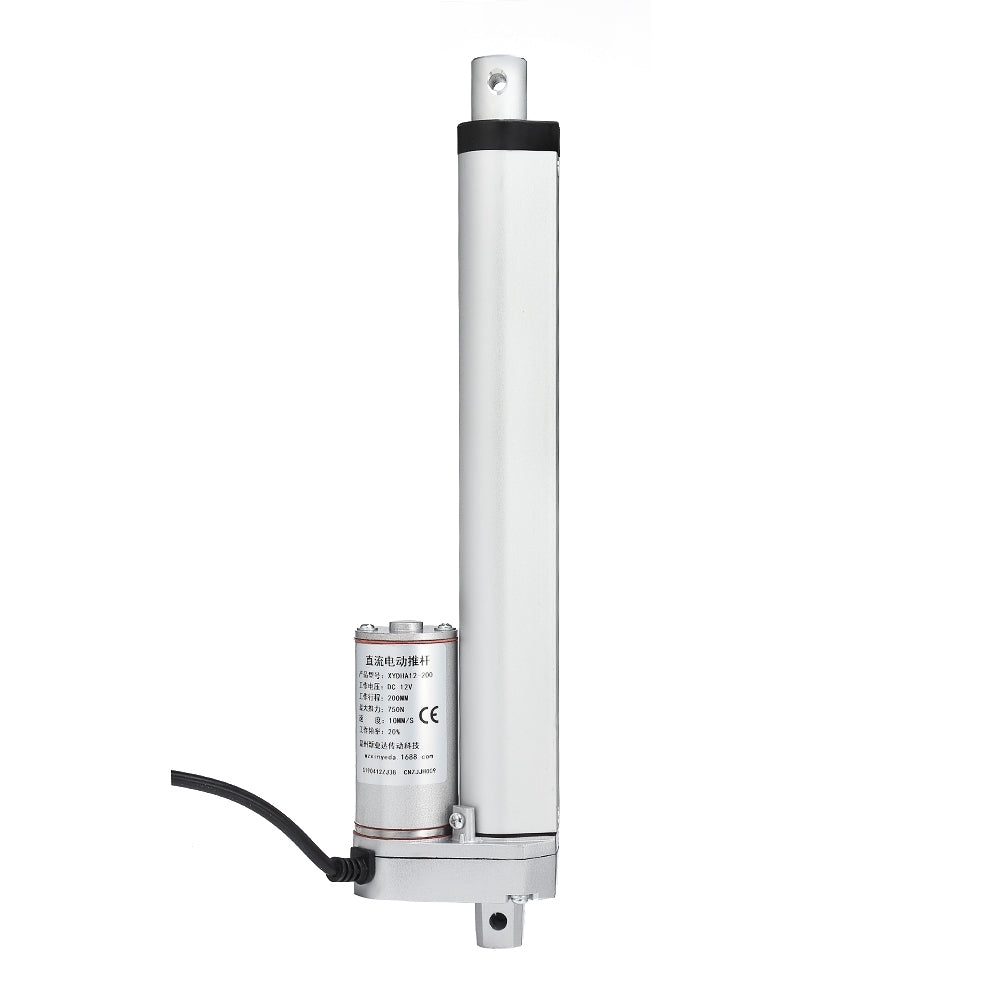

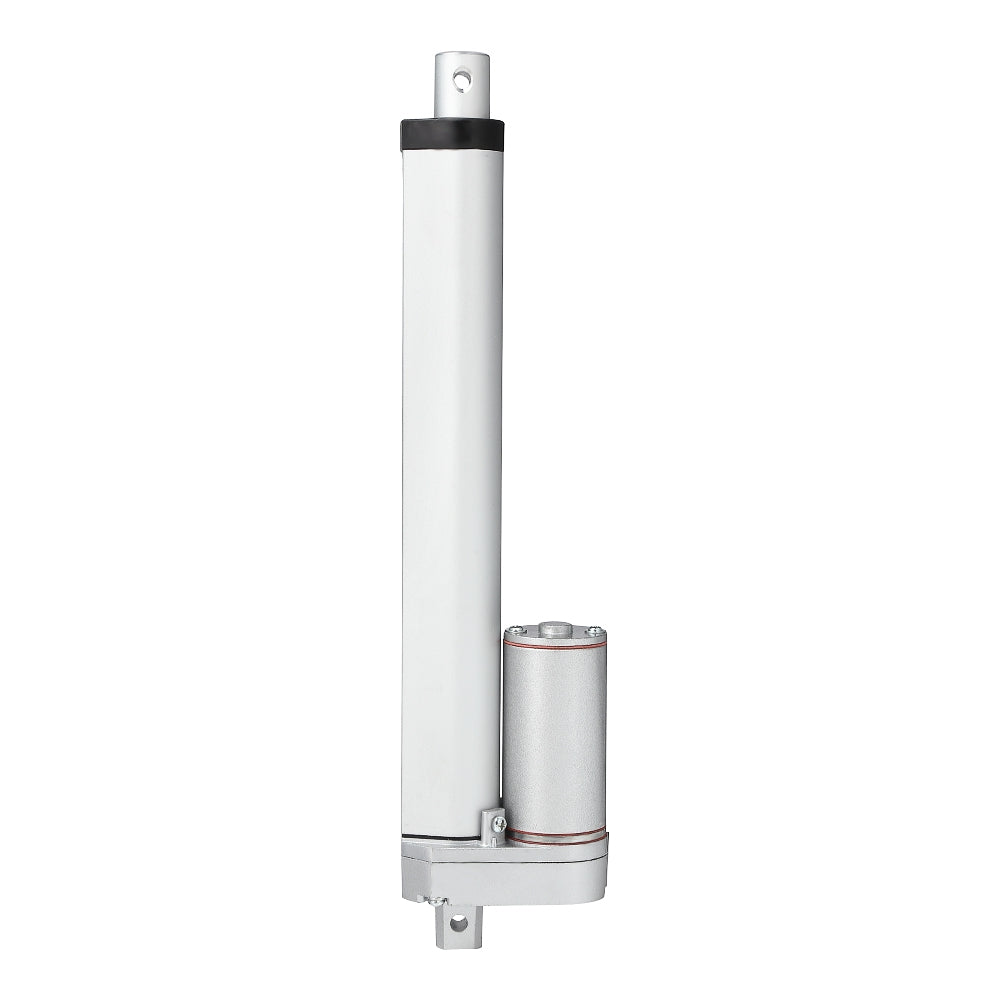

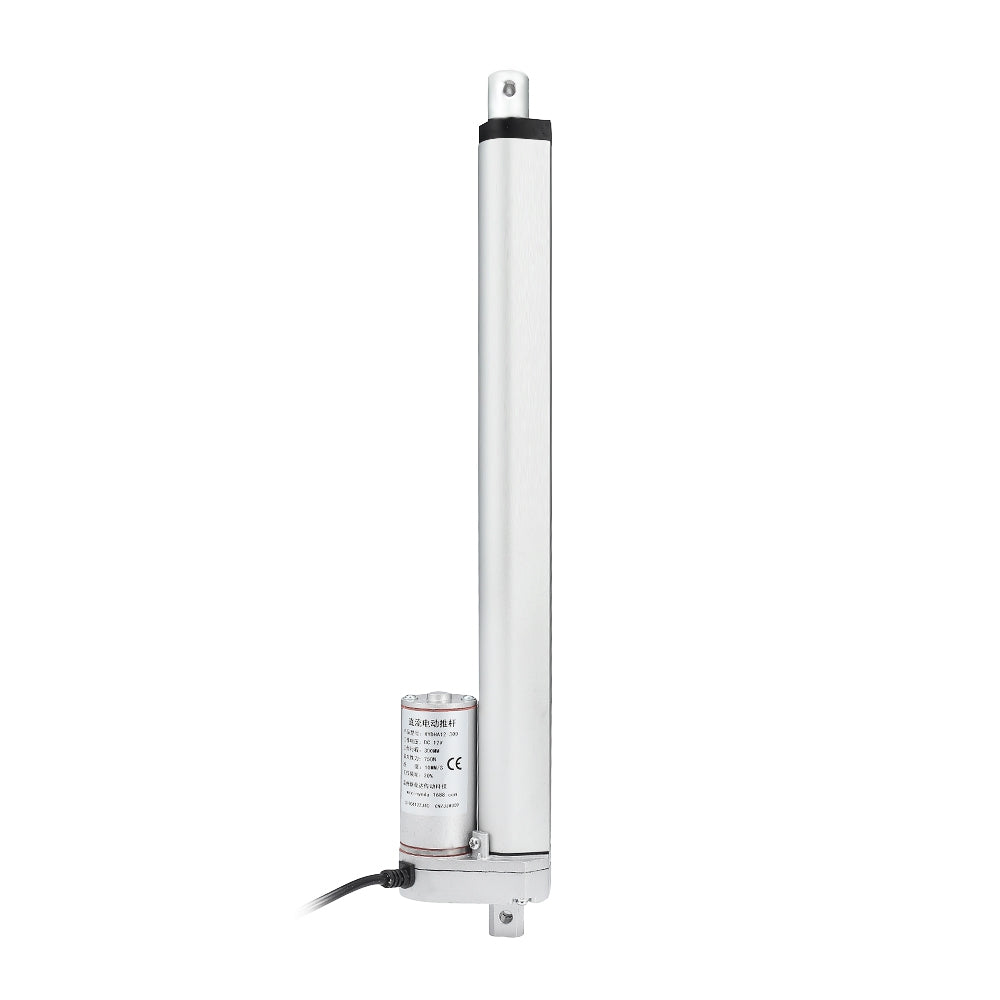

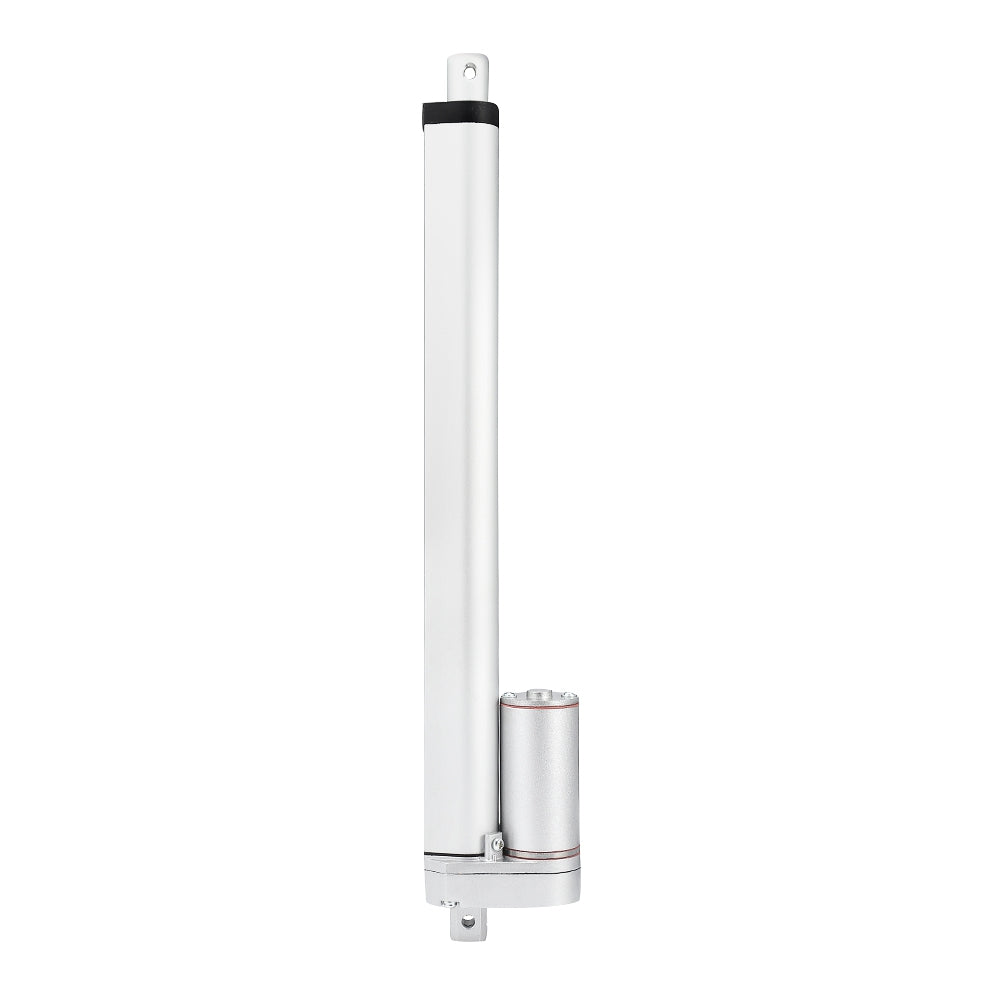

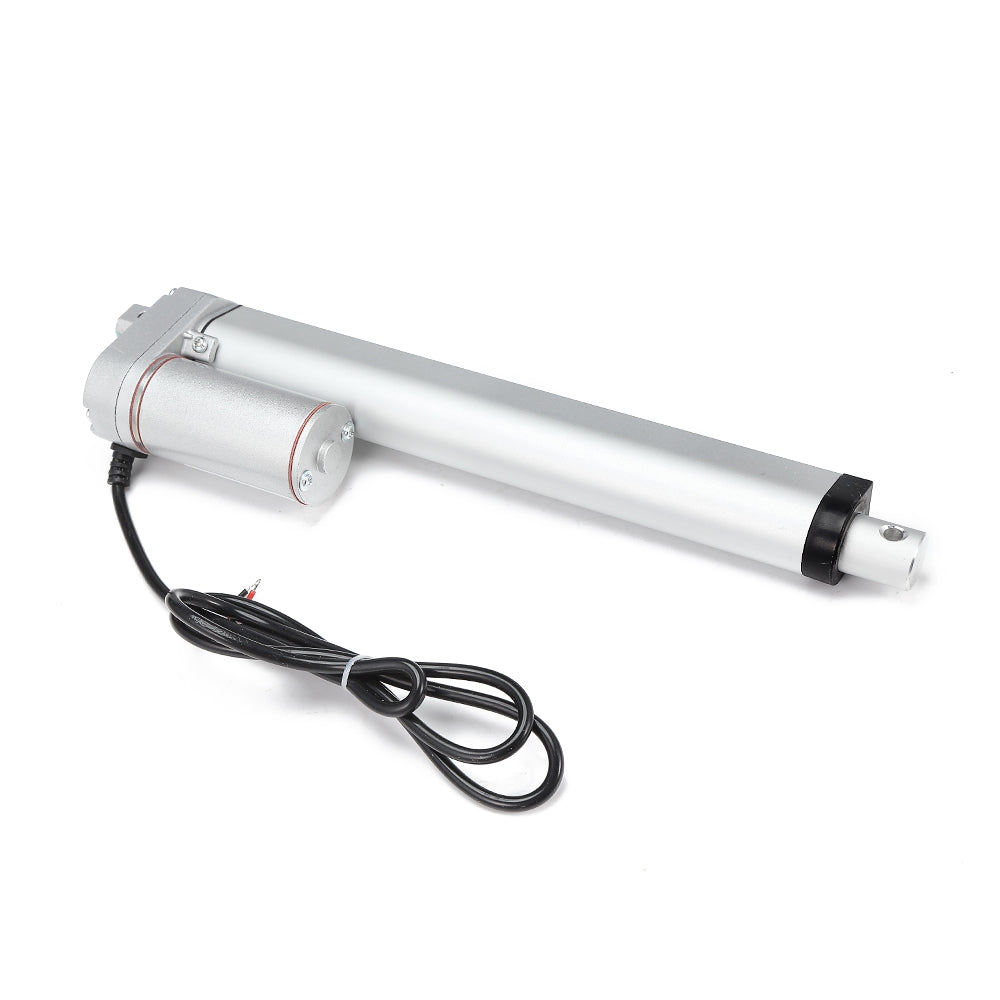

Description: This actuator is an electric driving device that makes furniture equipment and industrial equipment realize reciprocating motion. Typical applications include driving electric gates, automatic windows and other home automation assemblies.
Main Features: - High-grade metal shell, water-resistant and sealed against dust for rugged durability. - With high-performance motor, built-in limit switch, reliable performance, low noise, sensitive action and stable running. - The linear actuator can be controlled with a double pole, double throw switch or with the built-in position sensor and optional linear actuator programmable controller. - Widely used in automotive, medical devices, engineering industry, agricultural machinery, stage control system, industrial electric lifting system. Such as medical electric bed, surgical bed, traction bed, electric sofa, electric lifting lever, electric booth, electric sunroof, electric wheelchair, etc.

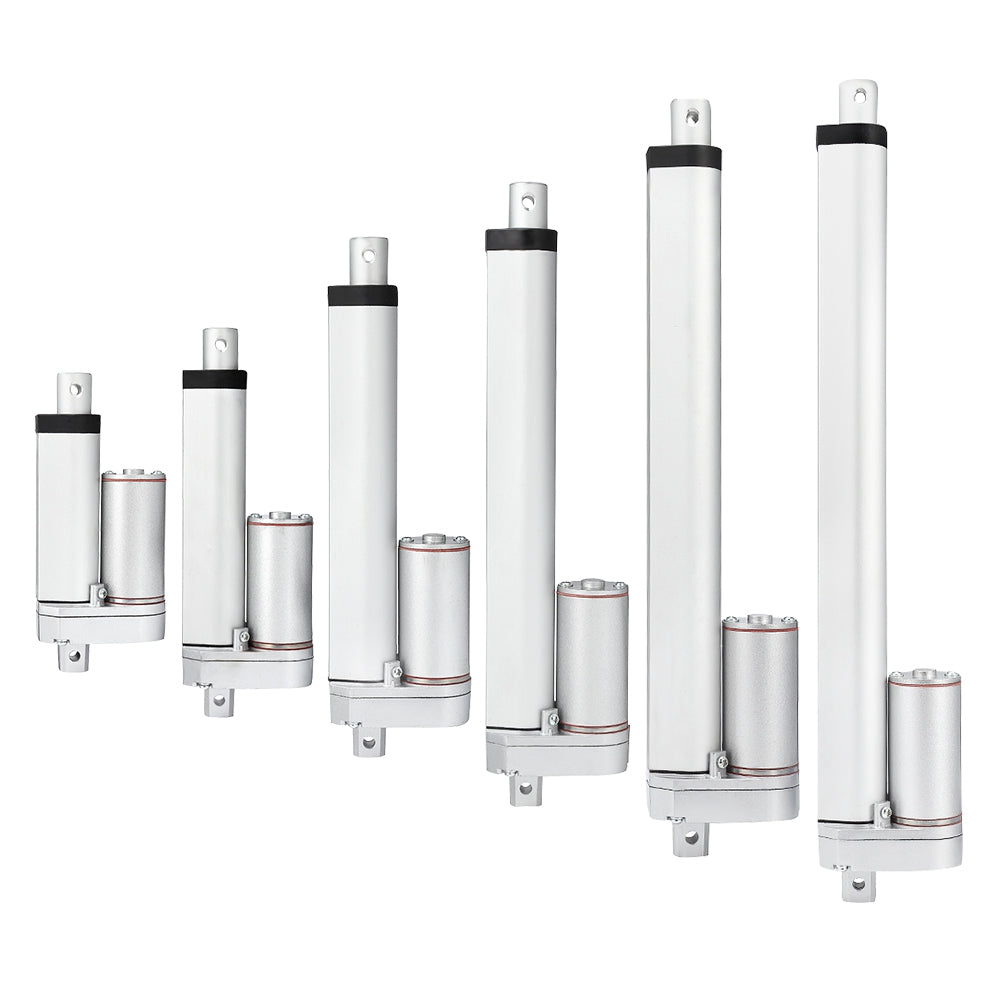

Parameters: Working voltage: DC 12V Maximum load: 750N Optional stroke length: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm No-load speed: 10mm/s Duty ratio: 20% Environment temperature: -10°C to 50°C Limit switch: built-in
Package weight: 1.122 kg Package Size(L x W x H): 34.50 x 8.00 x 5.50 cm / 13.58 x 3.15 x 2.17 inches
Package Contents: 1 x Electric Stroke Linear Actuator
