Makerfire BLHeli-S 4-in-1 rc ESC 12A 2-3s lipo Electroic Speed Controller Support Dshot 150/300/600 for FPV Drone quadcopter
...See More
PRIVACY PROTECTED
SECURE CHECKOUT
Makerfire BLHeli-S 4-in-1 rc ESC 12A 2-3s lipo Electroic Speed Controller Support Dshot 150/300/600 for FPV Drone quadcopter
Availability:
In Stock
|
FREE Shipping on Orders Over $20
ships worldwide |
$37.42
Specification:

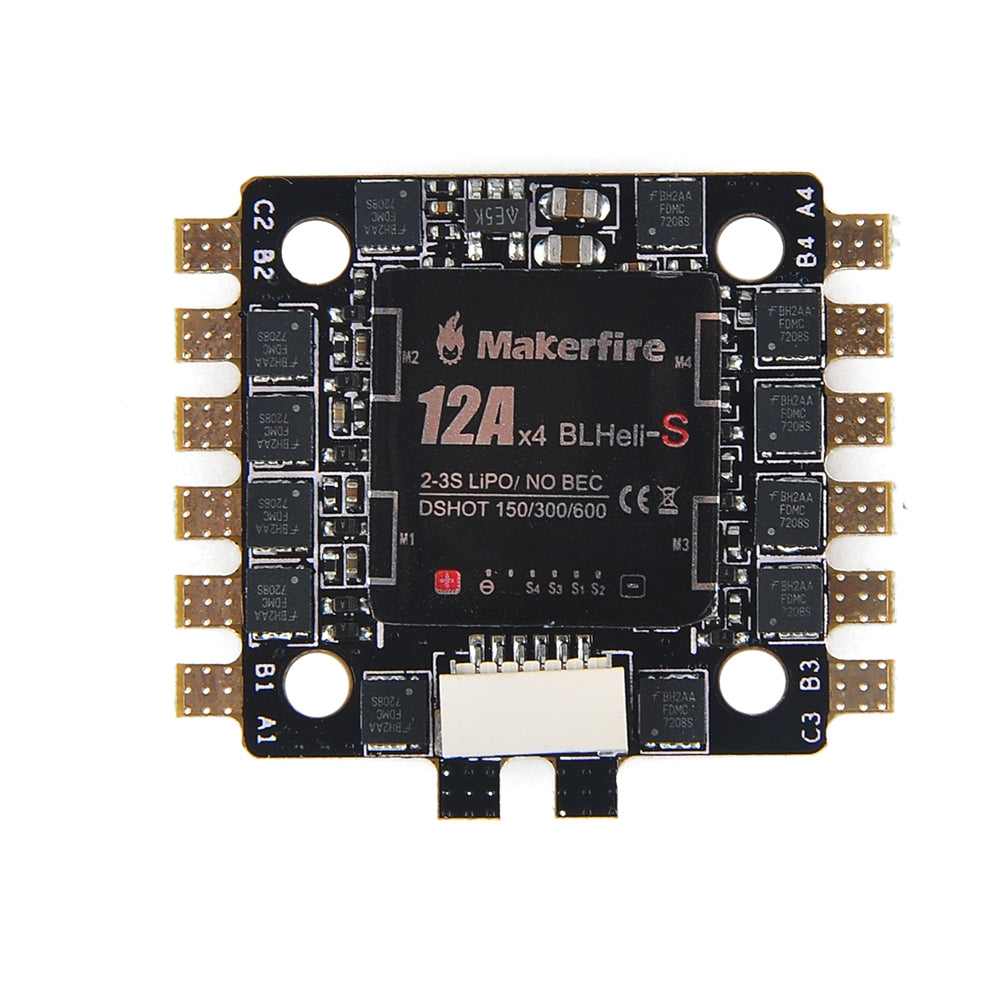

Item: BLHELI-S 4-in-1 12A ESC
Con.Current: 12A
Peak Current(10s):15A
BEC: NO
Lipo: 2-3S
Programming: YES
Weight: About 7.5g
Size(PCB): 27x27mm
M3 mounting hole:20mm x 20mm
Features:
Chips on EFM8BB21F16, 48MHZ Greatest.
BLHeli_S firmware is the next generation code, following the base BLHeli code.
BLHeli_S is designed for superior performance in multirotors, and uses hardware generated motor pwm for smooth throttle response and silent operation.
Small size combined with light weight for easy installation.
The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) , Multishot (5-25us) and Dshot.
The input signal is automatically detected by the ESC upon power up.
All codes use damped light mode.Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
The code supports features to prevent sync loss. There are tuneable parameters that can make the code run well even in the most demanding situations, although default settings will work.
Excellently in normal operating environments.
The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts.
Item: BLHELI-S 4-in-1 12A ESC
Con.Current: 12A
Peak Current(10s):15A
BEC: NO
Lipo: 2-3S
Programming: YES
Weight: About 7.5g
Size(PCB): 27x27mm
M3 mounting hole:20mm x 20mm
Features:
Chips on EFM8BB21F16, 48MHZ Greatest.
BLHeli_S firmware is the next generation code, following the base BLHeli code.
BLHeli_S is designed for superior performance in multirotors, and uses hardware generated motor pwm for smooth throttle response and silent operation.
Small size combined with light weight for easy installation.
The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) , Multishot (5-25us) and Dshot.
The input signal is automatically detected by the ESC upon power up.
All codes use damped light mode.Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
The code supports features to prevent sync loss. There are tuneable parameters that can make the code run well even in the most demanding situations, although default settings will work.
Excellently in normal operating environments.
The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts.
Type: ESC
Compatible with: Support Dshot 150/300/600 for FPV Racing Drone Multirotor
Compatible with: Support Dshot 150/300/600 for FPV Racing Drone Multirotor
Package weight: 0.063 kg
Package size (L x W x H): 10.00 x 8.00 x 0.50 cm / 3.94 x 3.15 x 0.2 inches
Package size (L x W x H): 10.00 x 8.00 x 0.50 cm / 3.94 x 3.15 x 0.2 inches

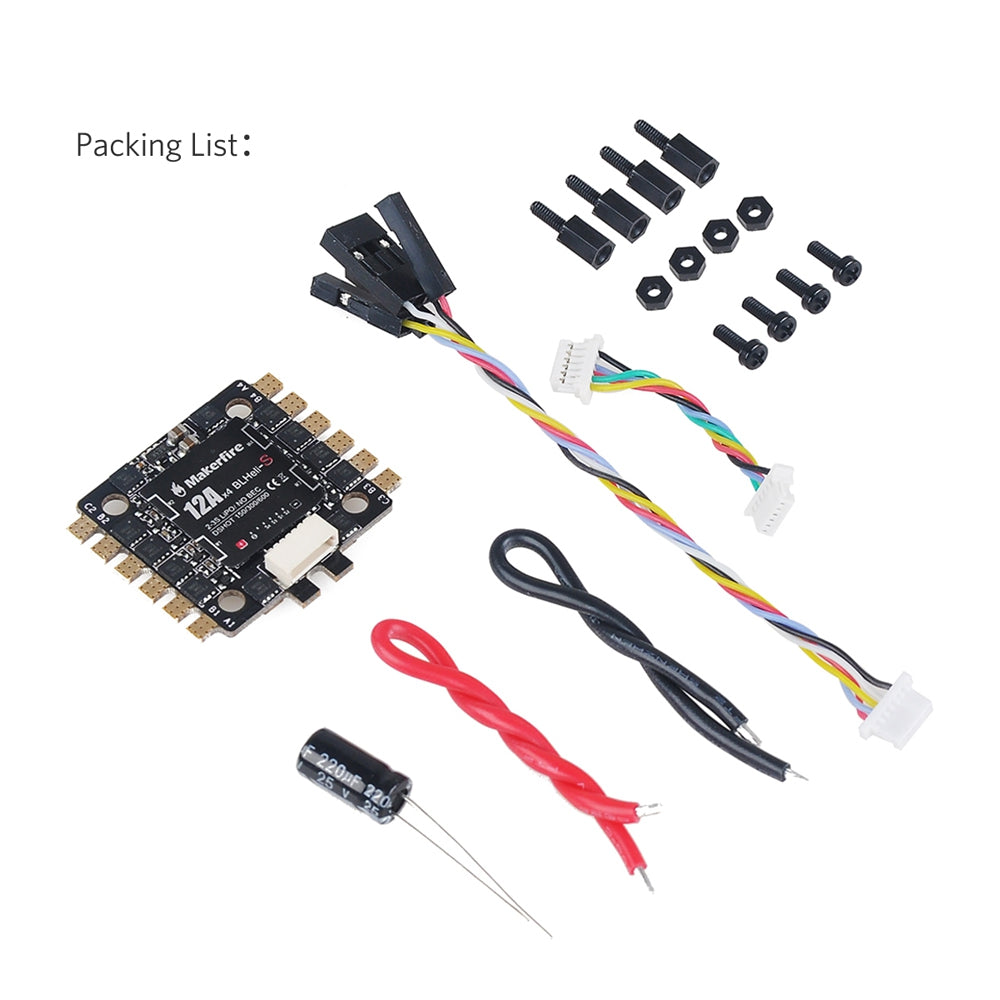

Package Contents: 1xBLHeli-S 4-in-1 12A ESC
