What Is BLE TPMS Bluetooth Low Energy Tire Pressure Monitoring System, also called BLE TPMS, uses pressure monitoring sensors within each tire to monitor specific pressure levels. Combined with the users' smart phone, it lets driver get the real-time tire pressure data, temperature data and status, warning messages without the need for extra cables or an extra display device.
What You Will Get - BLE TPMS App offers the real-time tire pressure data, temperature data and status - Non-stop monitor always keeps an eye on your car's performance - Show four wheels' tire pressure and temperature simultaneously - Reliable alarm system delivers audio alerts whenever an unusual situation occurs - High and low tire pressure alarm - Air leakage condition alarm - No signal alarm - Low power alarm
Intelligent Alarm 1. Fast Leakage Alert It will start when the tire pressure leakage over 5kPa in 5s 2. Low Leakage Alert It will start to warn when the tire pressure is under the presupposed lower limit 3. High Pressure Alert It will start to warn when the tire pressure is over the upper limit 4. Low Pressure Alert It will start to warn when the tire pressure is under the lower limit 5. High Temperature Alert It will start to warn when the inner tire temperature is over the upper limit 6. No Signal Alert It will start to warn when the tire condition can not be detected over time 7. Lower Power Alert It will start to warn when the battery voltage is under the presupposed limit
Specification Brand: ZEEPIN Model: VC601B Category: BLE TPMS Display way: App App Name: BLE TPMS Input voltage: DC 3V Optional pressure units: Psi, kPa, Bar Optional temperature units: Deg.C, Deg.F Operating frequency: 2.4GHz Tire pressure detection range: 100 - 1300kPa Tire pressure detection accuracy: + / - 10kPa Working humidity: 95 percent max Tire temperature accuracy: + / - 3 Deg.C Storage temperature: -45 Deg.C - 125 Deg.C Operating temperature: -40 Deg.C - 85 Deg.C Operating current: 100uA Static current: 2.2uA and less Sensor battery supply: CR1632 battery Sensor battery capacity: 345mAh Battery life: 5 - 8 years Waterproof rate: IP67
Package weight: 0.210 kg Package Size(L x W x H): 16.10 x 10.10 x 3.00 cm / 6.34 x 3.98 x 1.18 inches

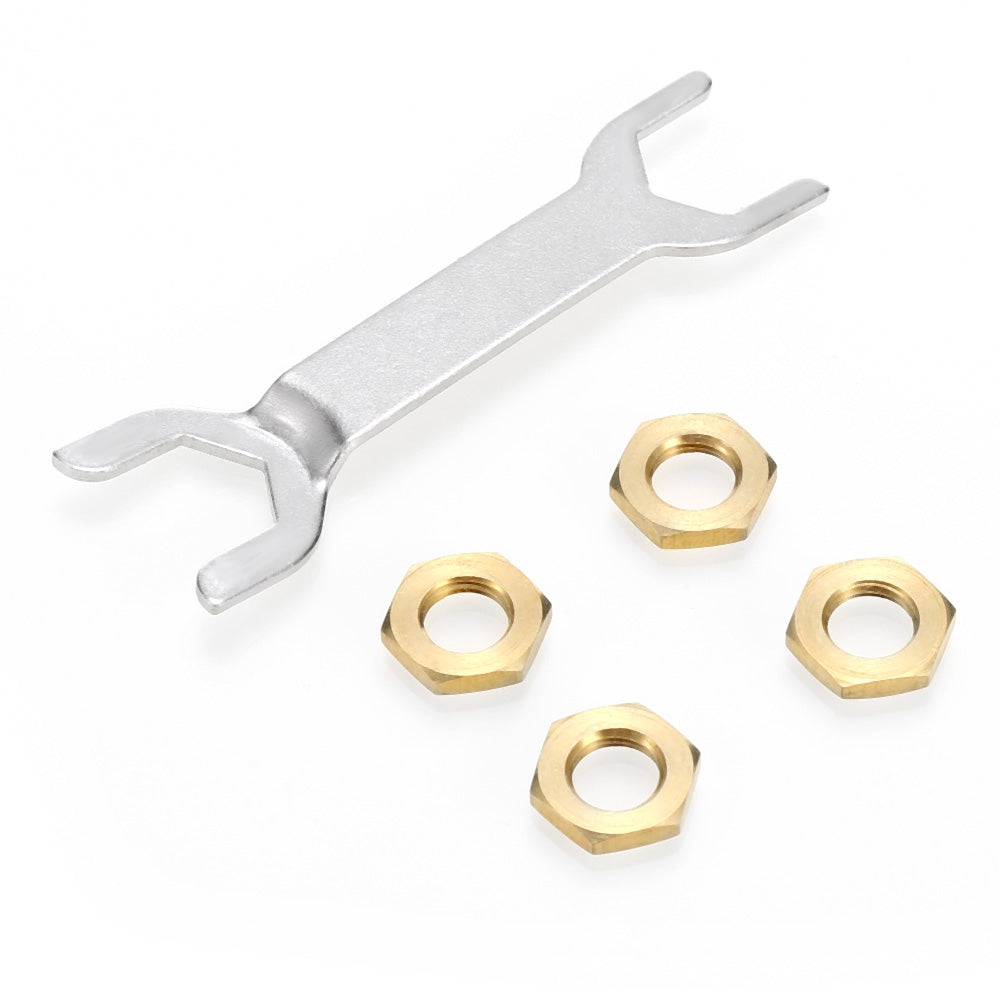

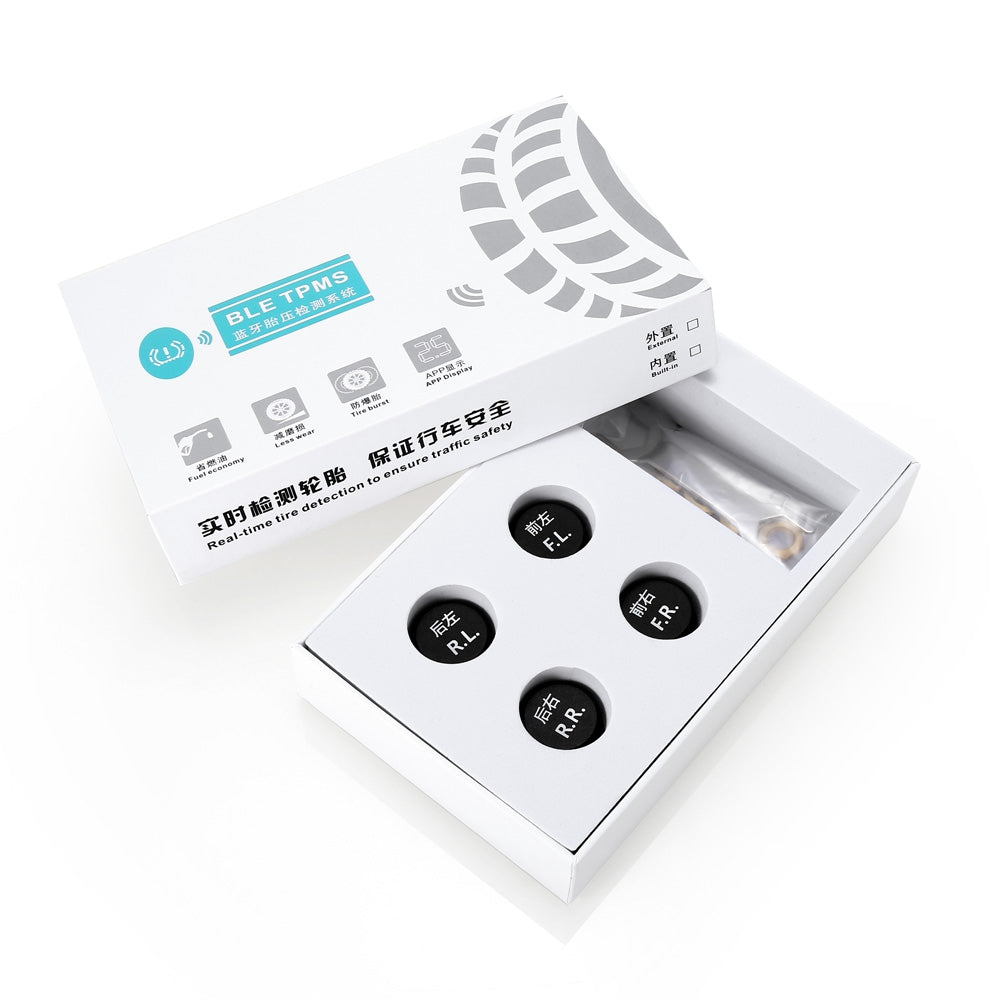

Package Contents: 4 x BLE TPMS, 1 x Bag of Accessories
IPXX Rating Chart
The IP Code (or International Protection Rating, sometimes also interpreted as Ingress Protection Rating*) consists of the letters IP followed by two digits and an optional letter. As defined in international standard IEC 60529, it classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures. The standard aims to provide users more detailed information than vague marketing terms such as waterproof.
The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. For example, an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. IP22 or 2X are typical minimum requirements for the design of electrical accessories for indoor use.
