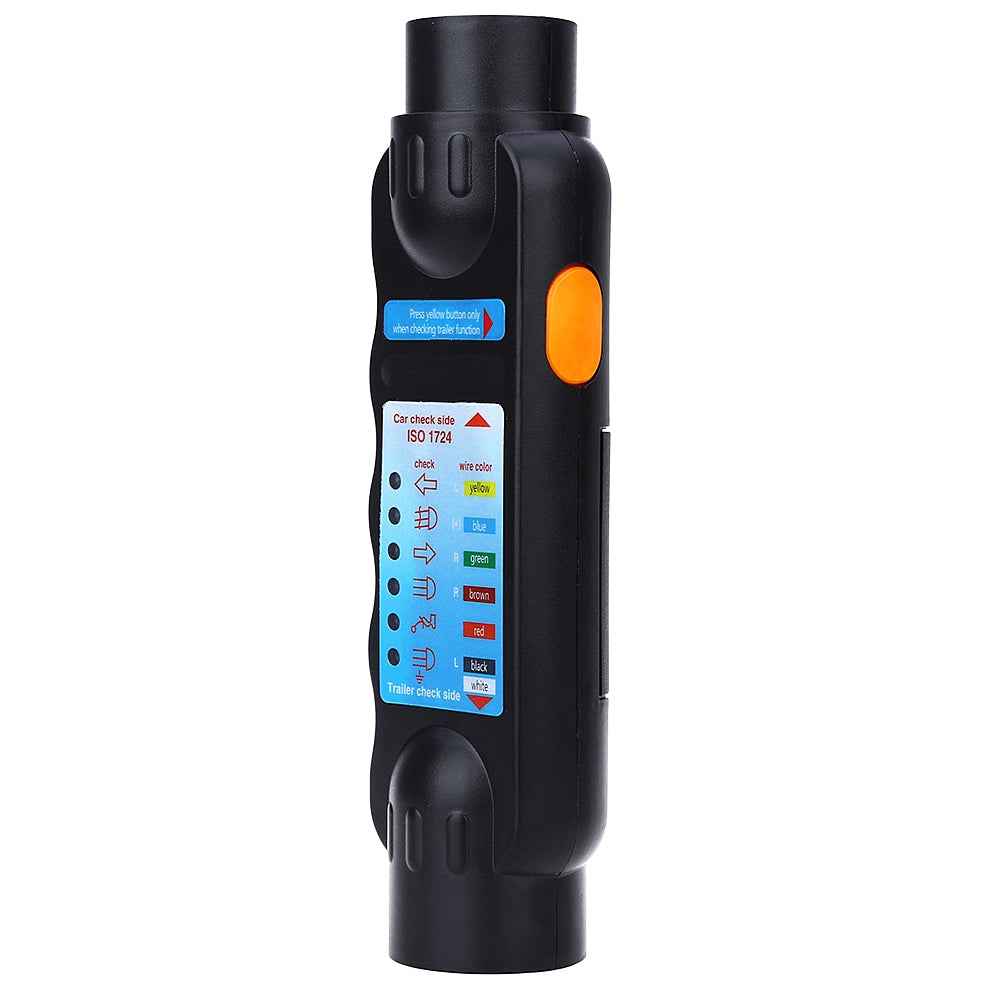

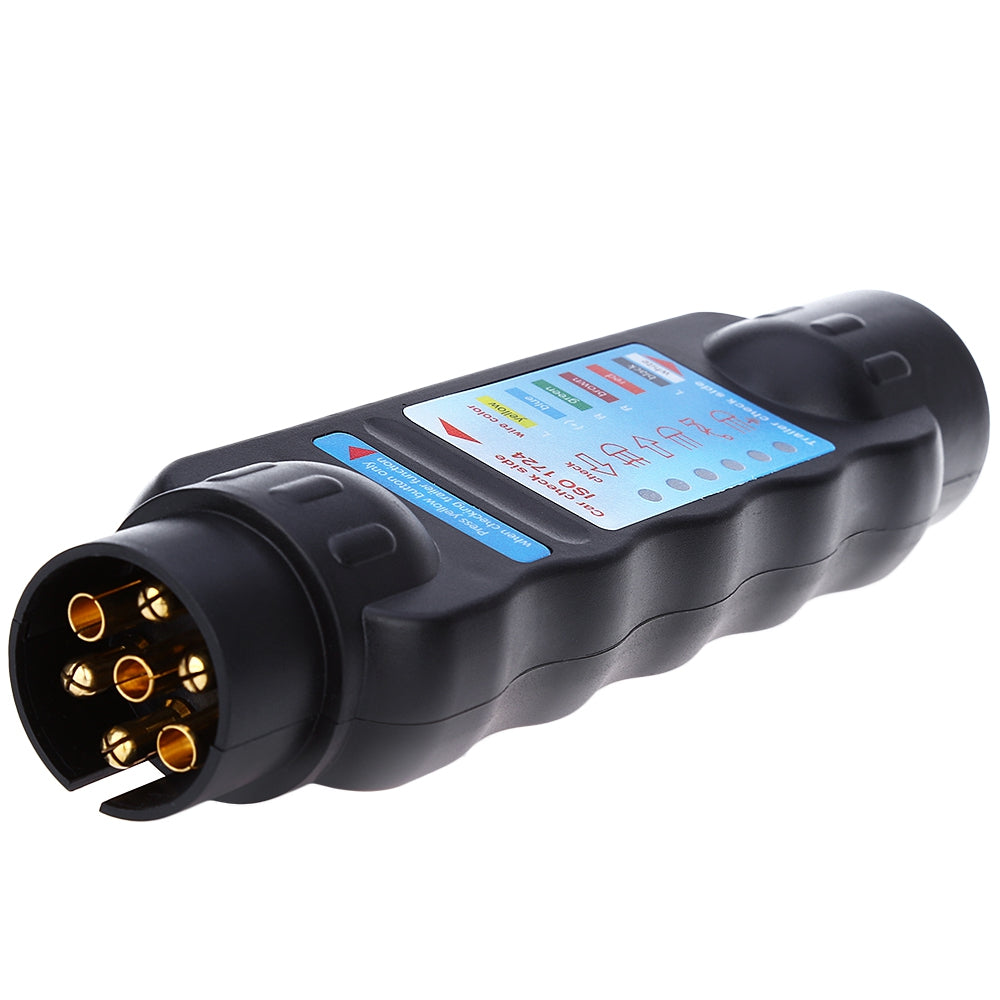

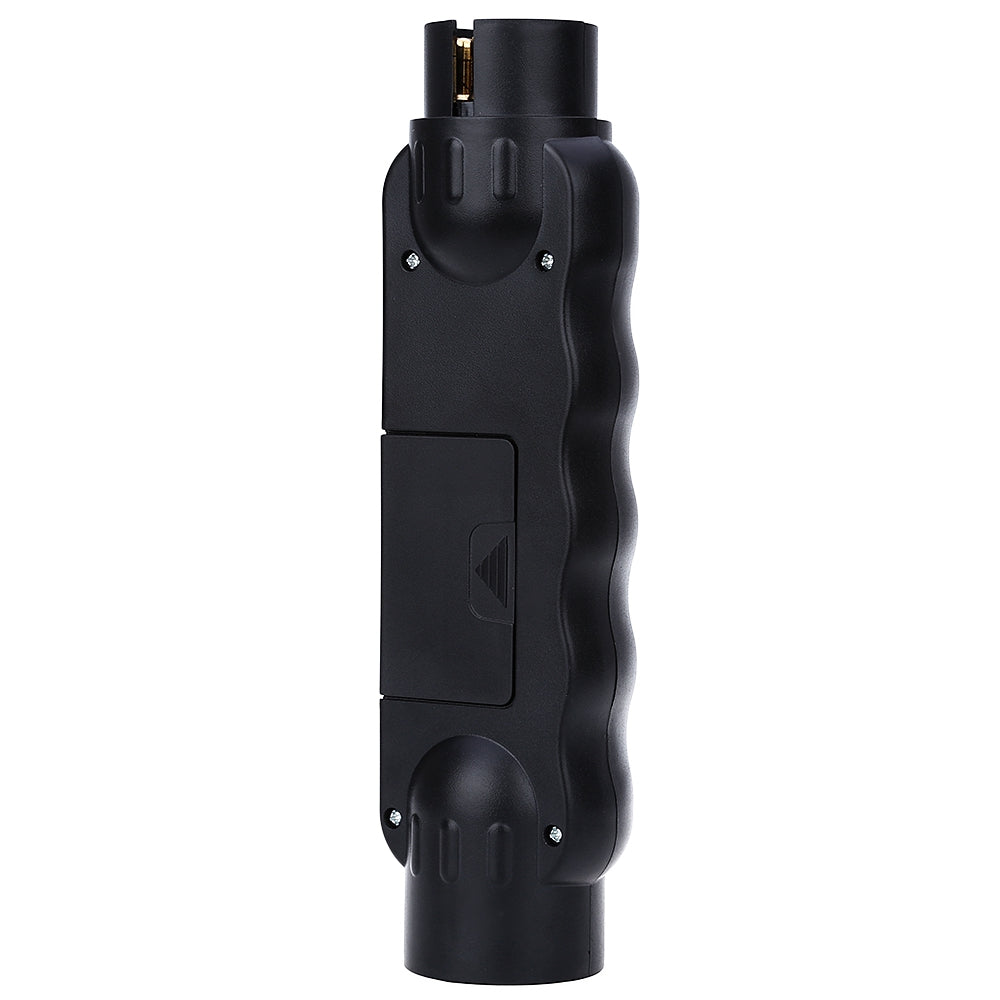

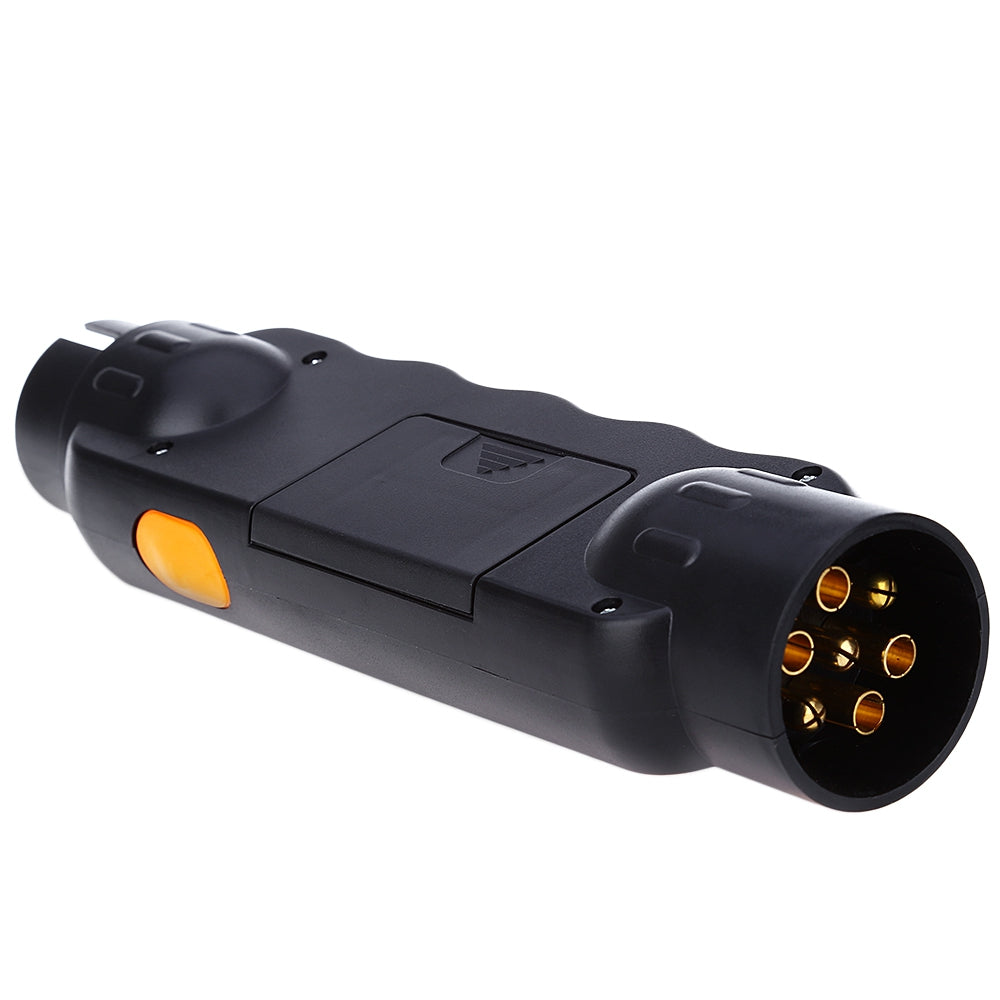

T22773 7 Pin 12V 12N Plastic European Standard Round Hole Trailer Plug Battery Tester N Type
Availability:
In Stock
|
FREE Shipping on Orders Over $20
ships worldwide |
$14.92
Highlights:
- Suitable for European standard trailer, vehicle, etc.
- Supplies power to your caravan, towing and truck.
- Connect trucks and power, be applicable to the trailer lights display.
- The size of the cross slot is easier to control.
- Brass pins in a durable housing, more safe.

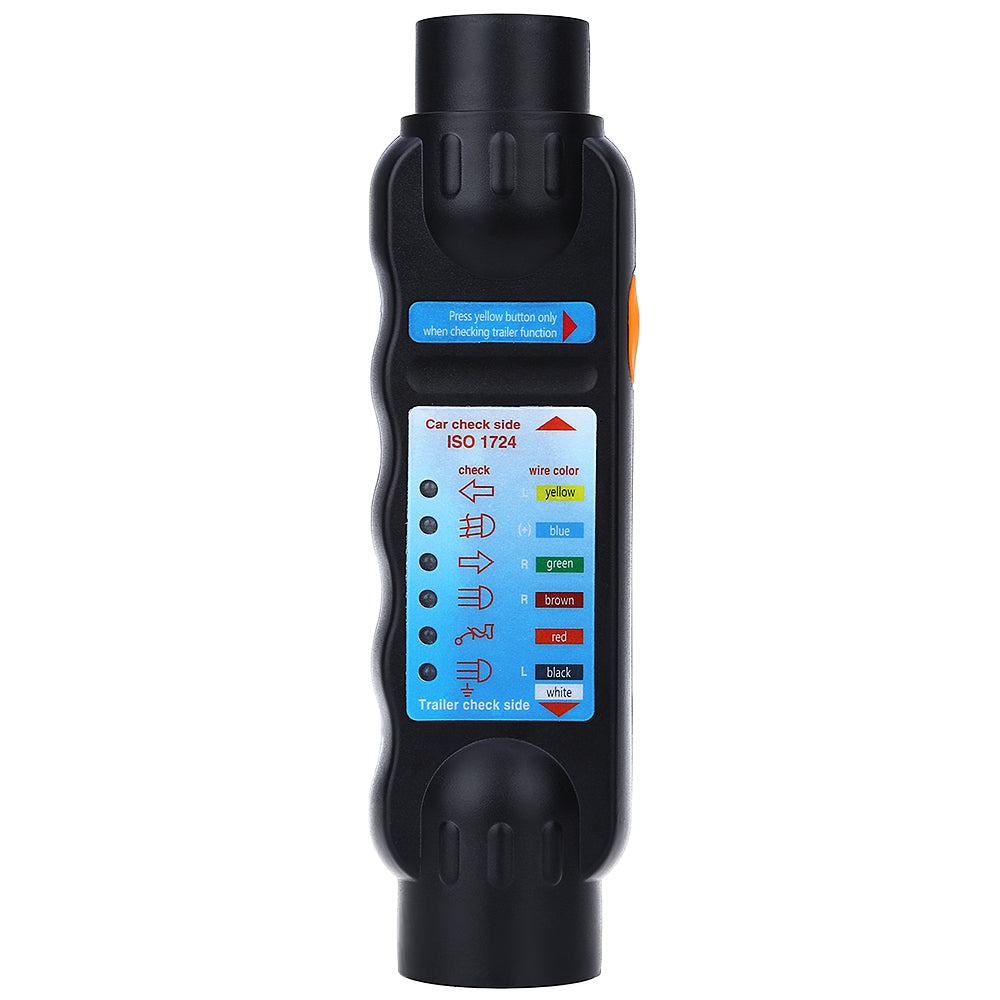

- Tester lights will quickly show whether truck or car coil is connected properly.
- Water resistant, for all road and weather conditions.

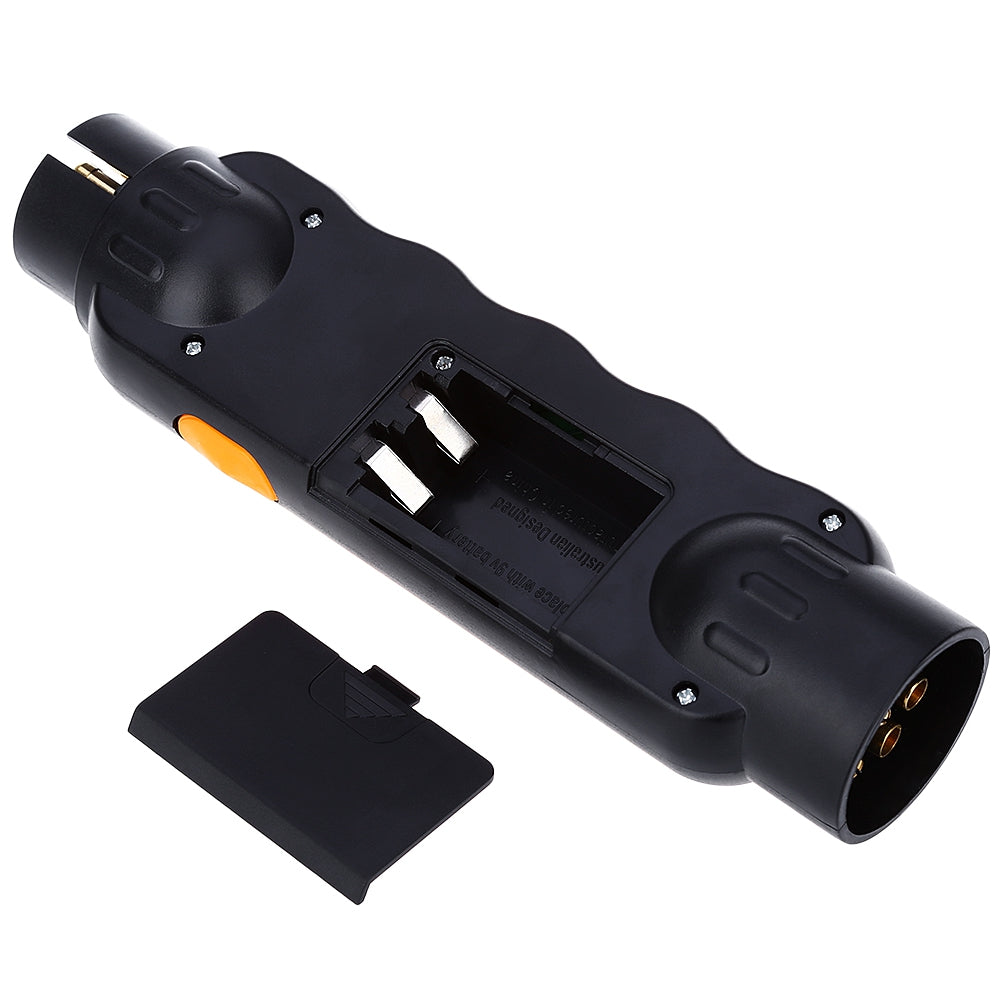

- Can powered by 9V battery. ( not included )
Wiring Configuration:
PIN 1 - Yellow Wire ( left hand direction indicator )
PIN 2 - Blue Wire ( rear fog lamp )
PIN 3 - White Wire ( earth return )
PIN 4 - Green Wire ( right hand direction indicator )
PIN 5 - Brown Wire ( right hand tail and plate lamp )
PIN 6 - Red Wire ( stop lamp )
PIN 7 - Black Wire ( left hand tail and plate lamp )
PIN 8 - Pink Wire ( reversing light )
PIN 9 - Orange Wire ( 12V permanent power from battery )
PIN10 - Gray Wire（12V ignition on battery charging or fridge )
PIN11 - White / Black Wire ( earth for terminal 10 )
PIN12 - White / Blue Wire ( not usually used )
PIN13 - White / Red Wire ( earth for terminal 9 )
- Suitable for European standard trailer, vehicle, etc.
- Supplies power to your caravan, towing and truck.
- Connect trucks and power, be applicable to the trailer lights display.
- The size of the cross slot is easier to control.
- Brass pins in a durable housing, more safe.
- Tester lights will quickly show whether truck or car coil is connected properly.
- Water resistant, for all road and weather conditions.
- Can powered by 9V battery. ( not included )
Wiring Configuration:
PIN 1 - Yellow Wire ( left hand direction indicator )
PIN 2 - Blue Wire ( rear fog lamp )
PIN 3 - White Wire ( earth return )
PIN 4 - Green Wire ( right hand direction indicator )
PIN 5 - Brown Wire ( right hand tail and plate lamp )
PIN 6 - Red Wire ( stop lamp )
PIN 7 - Black Wire ( left hand tail and plate lamp )
PIN 8 - Pink Wire ( reversing light )
PIN 9 - Orange Wire ( 12V permanent power from battery )
PIN10 - Gray Wire（12V ignition on battery charging or fridge )
PIN11 - White / Black Wire ( earth for terminal 10 )
PIN12 - White / Blue Wire ( not usually used )
PIN13 - White / Red Wire ( earth for terminal 9 )
Manufacturer Part Number: T22773
Package weight: 0.226 kg
Product Size(L x W x H): 19.50 x 5.00 x 2.80 cm / 7.68 x 1.97 x 1.1 inches
Package Size(L x W x H): 21.00 x 6.00 x 4.50 cm / 8.27 x 2.36 x 1.77 inches
Product Size(L x W x H): 19.50 x 5.00 x 2.80 cm / 7.68 x 1.97 x 1.1 inches
Package Size(L x W x H): 21.00 x 6.00 x 4.50 cm / 8.27 x 2.36 x 1.77 inches

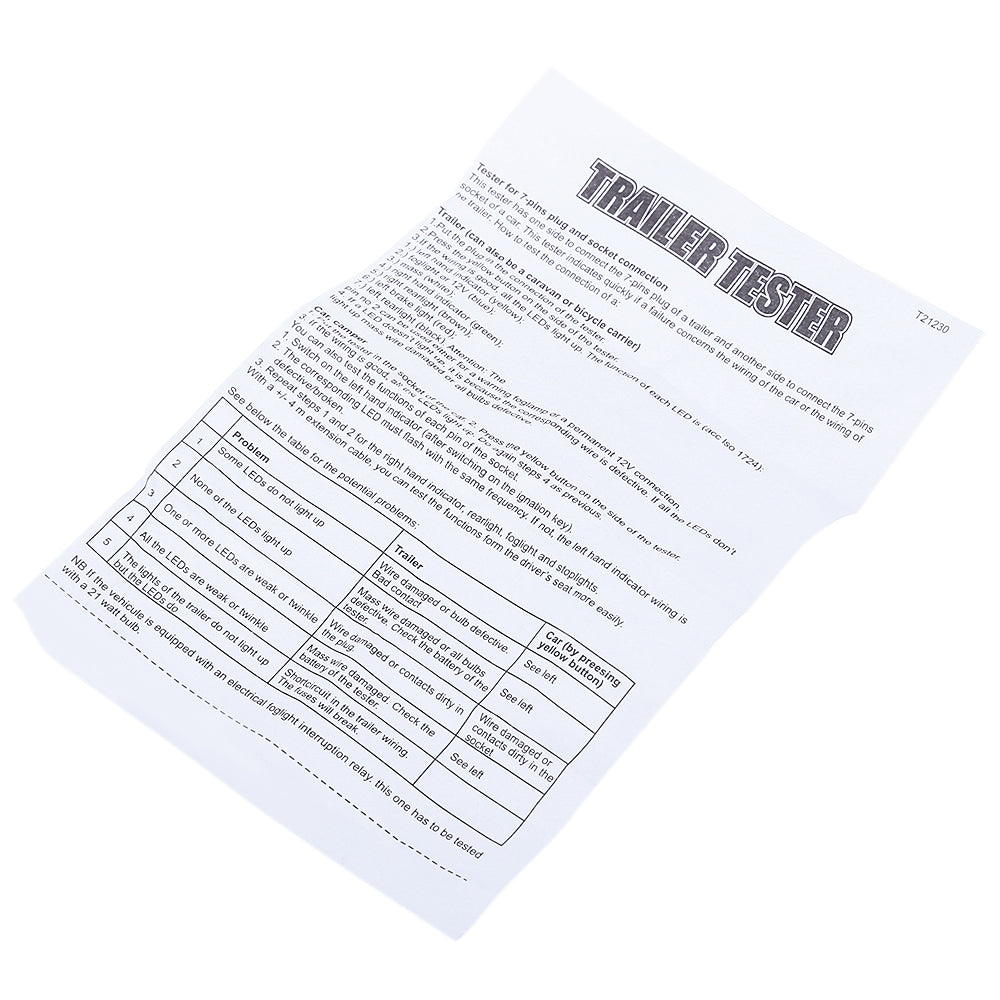

Package Contents: 1 x Trailer Plug, 1 x English Product Manual
