Portable LCD Vector Network Analyzer 50kHz - 1000MHz

Portable LCD Vector Network Analyzer 50kHz - 1000MHz

Availability: In Stock
FREE Shipping on Orders Over $20
ships worldwide
$298.42

Earn 2984 mint points. Learn more...
60 Days Buyer Protection
Money Back Guaranty
Features:
● Adopted 4.3" IPS TFT LCD screen, with a larger view angle, it can be seen clearly in strong outdoor light

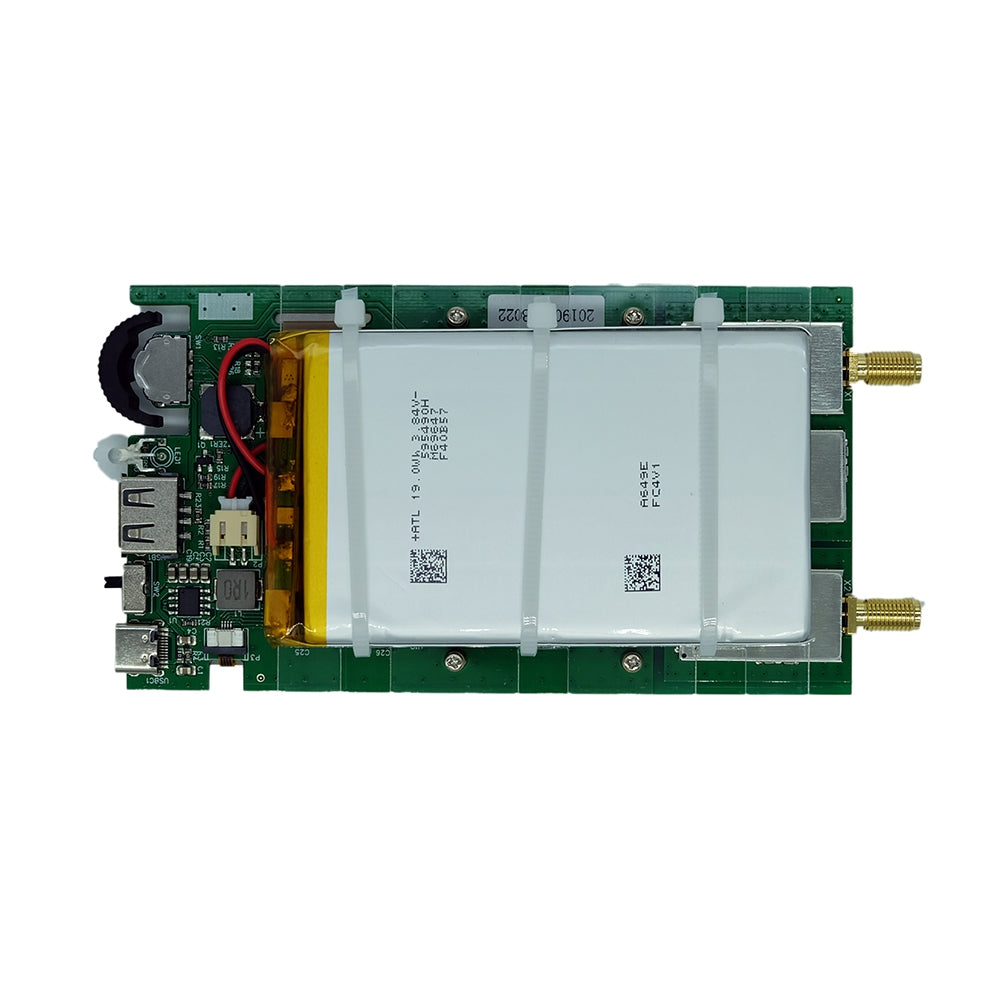

● Built-in 5000mAh lithium battery, with long standby time

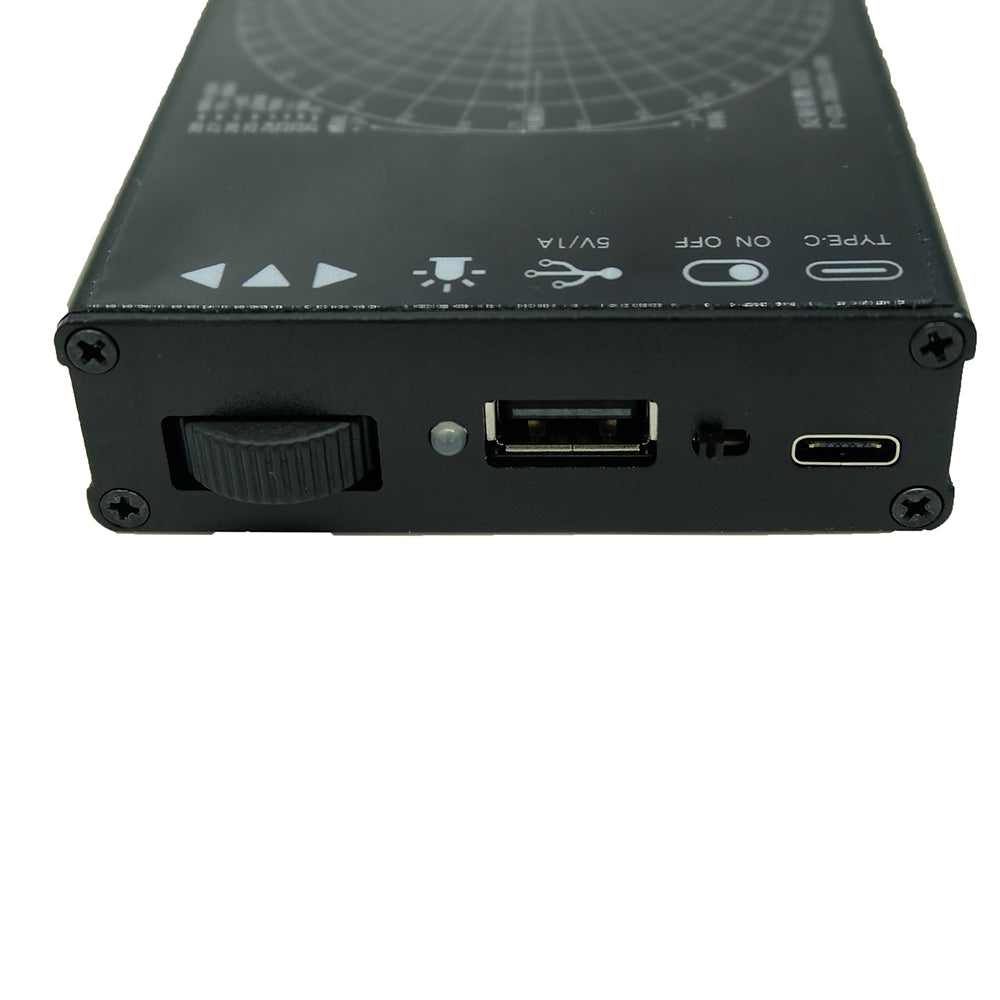

● With an expanded USB interface, when the analyzer is not used, it also can be used as a power bank to recharge your phone
● The IC is charged by high current 2A, and the charging time will be shortened
● Support Chinese and English menu switching
● It can upgrade the user program by virtual U disk

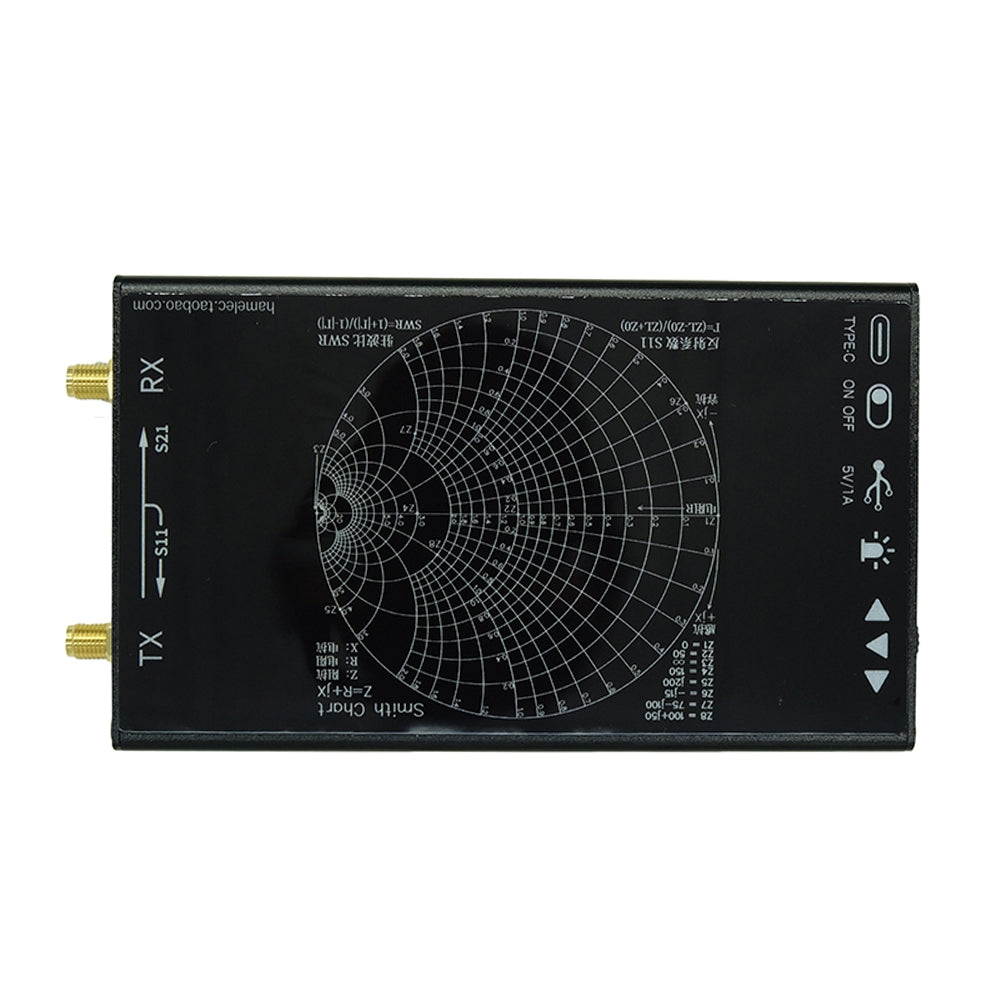

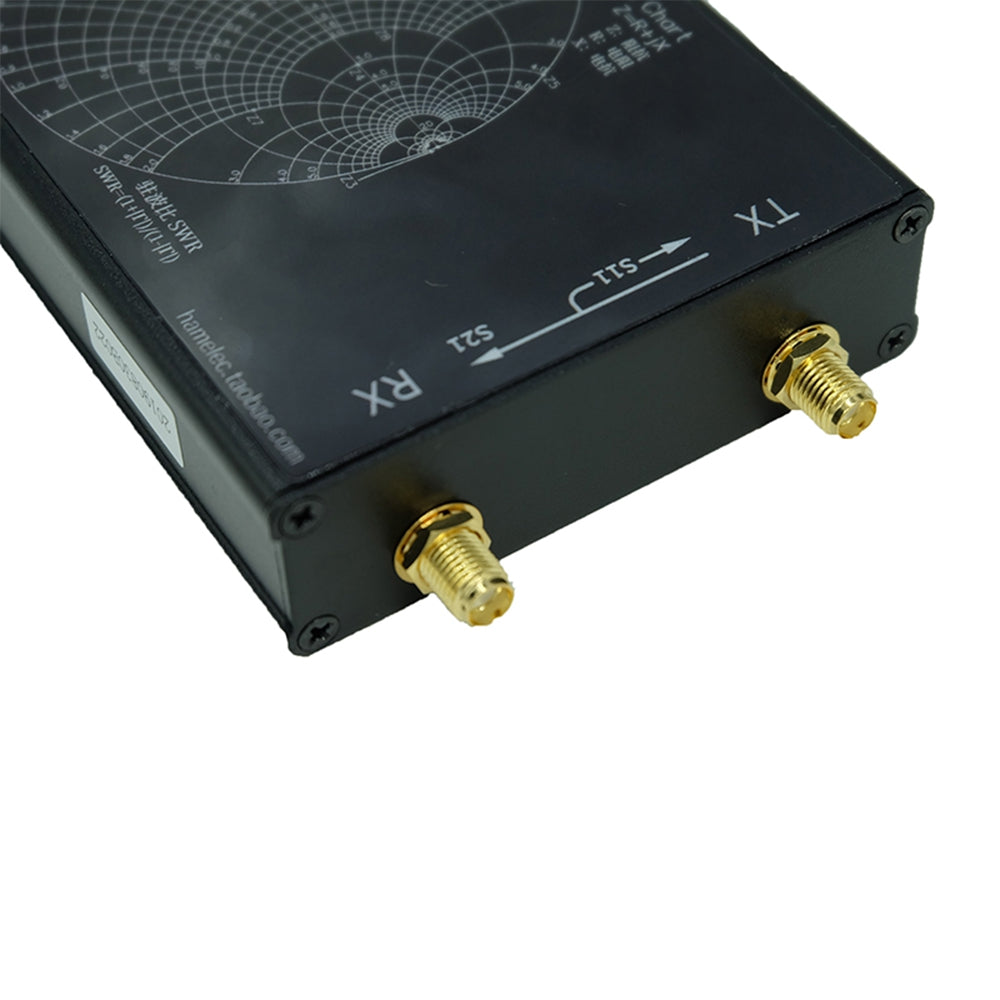

● Standard aluminum shell to protect SMA head and reduce the interference of external electromagnetic waves to the analyzer

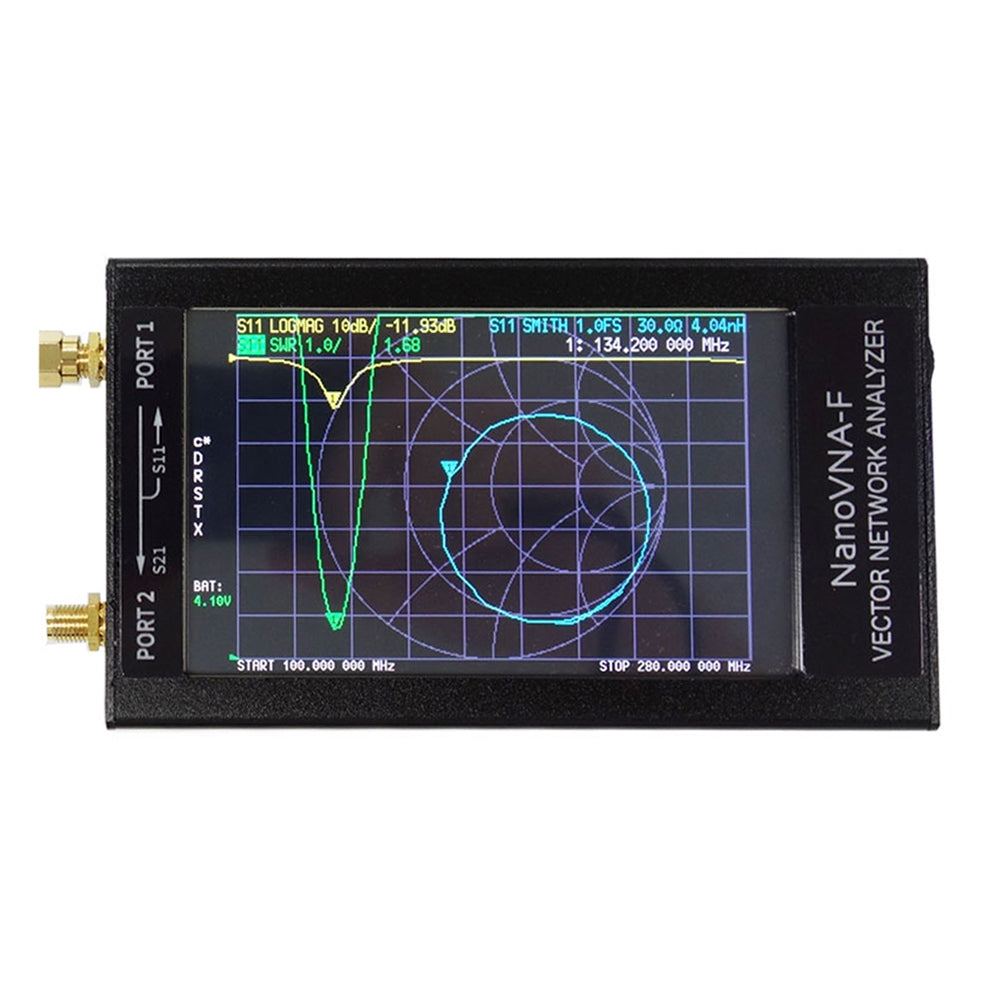

● It can measure S parameters, voltage standing wave ratio SWR, phase map, group delay, Smith chart and so on

Parameter:
● Measurement frequency: 50kHz ~ 1000MHz
● RF output: - 13 dBm (maximum: -9 dBm)
● Frequency accuracy: less than 0.5ppm
● Port SWR: less than 1.1
● Display: 4.3 inch IPS TFT (display resolution: 800 x 480)
● USB interface: USB
● Type-C communication mode: CDC (serial)
● Power consumption: USB 5V 200mA
● Battery: 3.7V 5000mAh lithium battery (built-in)
● Theoretical battery life: 18 hours
● Maximum charging current: 2A
● Output capacity: 5V / 1A, available for Android and iOS devices
● Number of calibration points: 101
● Number of scanning points: 101
● Display tracking: 4
● Marking: 4
● Setting save: 5
● Scanning time: about 1.9s/time (50kHz ~ 1000MHz full frequency band)

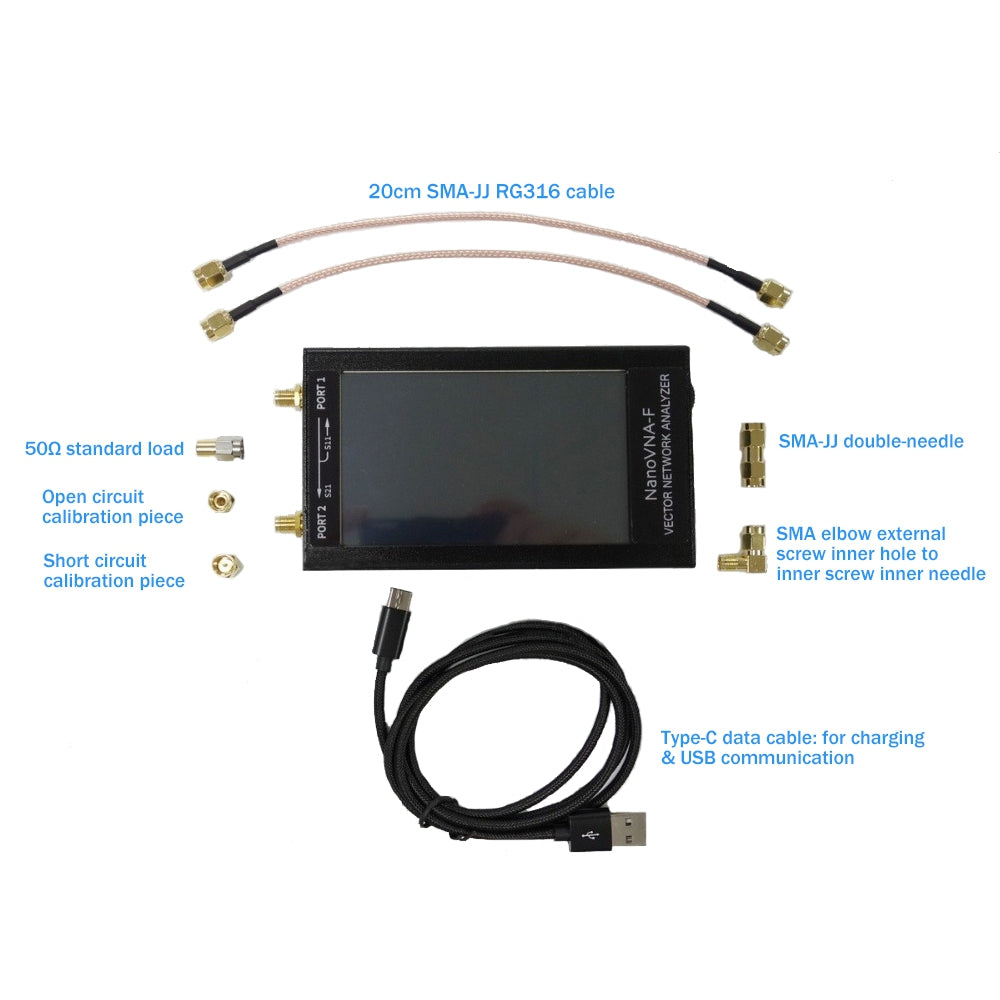

Package Includes:
1 x analyzer
2 x 20cm SMA-JJ RG316 cable
1 x 50Ω standard load
1 x open circuit calibration piece
1 x short circuit calibration piece
1 x SMA-JJ double-needle
1 x Type-C data cable
1 x SMA elbow external screw inner hole to inner screw inner needle
0.6500
Package weight: 0.702 kg
Product Size(L x W x H): 27.00 x 17.00 x 5.00 cm / 10.63 x 6.69 x 1.97 inches
Package Size(L x W x H): 30.00 x 20.00 x 8.00 cm / 11.81 x 7.87 x 3.15 inches
Package Contents: 1 x Vector Network Analyzer Set
