Portable LCD Vector Network Analyzer NanoVNA - H 50kHz - 900MHz
...See More
PRIVACY PROTECTED
SECURE CHECKOUT
Portable LCD Vector Network Analyzer NanoVNA - H 50kHz - 900MHz
Availability:
In Stock
|
FREE Shipping on Orders Over $20
ships worldwide |
$119.93
Features:

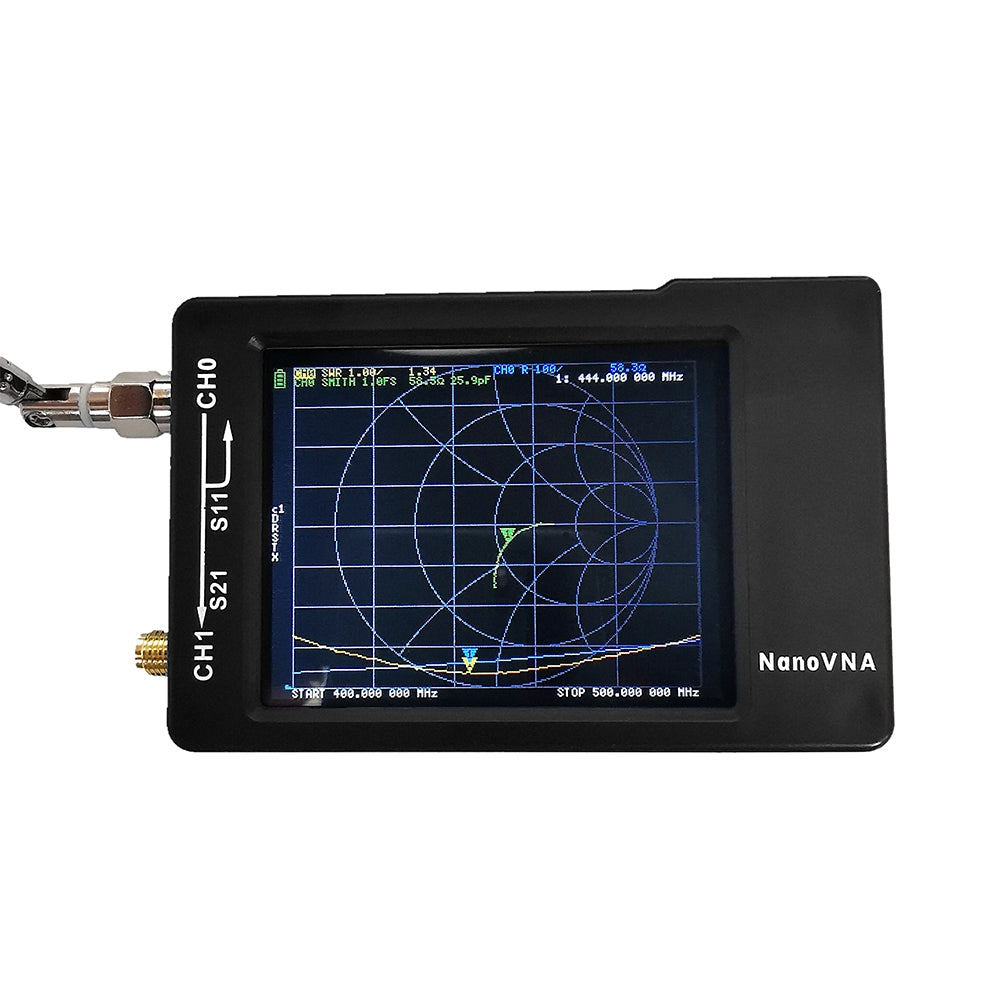

● Adopted 2.8" LCD touching screen, small and lightweight, easy to carry

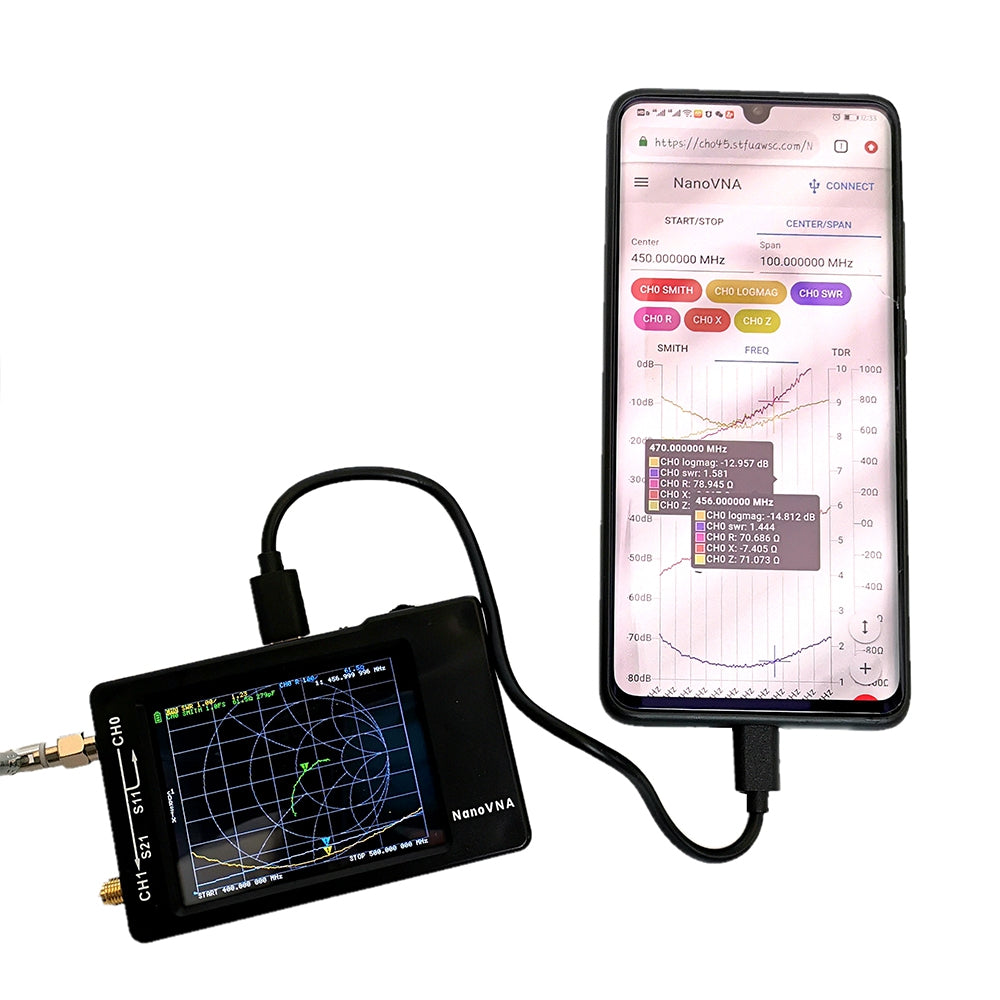

● It can export touchstone (snp) files for various radio design and simulation software through the PC software
● This analyzer aims to provide an RF gadget but a useful instrument for the enthusiast
● TX / RX measurement can determine the complete S11 and S21 parameters, if you need to get S12 and S22, you need to manually replace the transceiver port wiring
Parameter:
● Measurement frequency: 50kHz - 900MHz
● RF output: - 13 dBm (maximum: -9 dBm)
● Frequency accuracy: less than 0.5ppm
● Measurement range: 70dB (50kHz - 300MHz), (50dB (300M - 600MHz), 40dB (600M - 900MHz) enable extended firmware)
● Port SWR: less than 1.1
● Display: 2.8" TFT (display resolution: 320 x 240)
● USB interface: USB type-C
● Communication mode: CDC (serial)
● Power consumption: USB 5V 120mA
● Battery: 400mAh lithium battery (built-in)
● Maximum charging current: 0.8A
● Number of calibration points: 101
● Number of scanning points: 101
● Display tracking: 4, marking: 4, setting save: 5

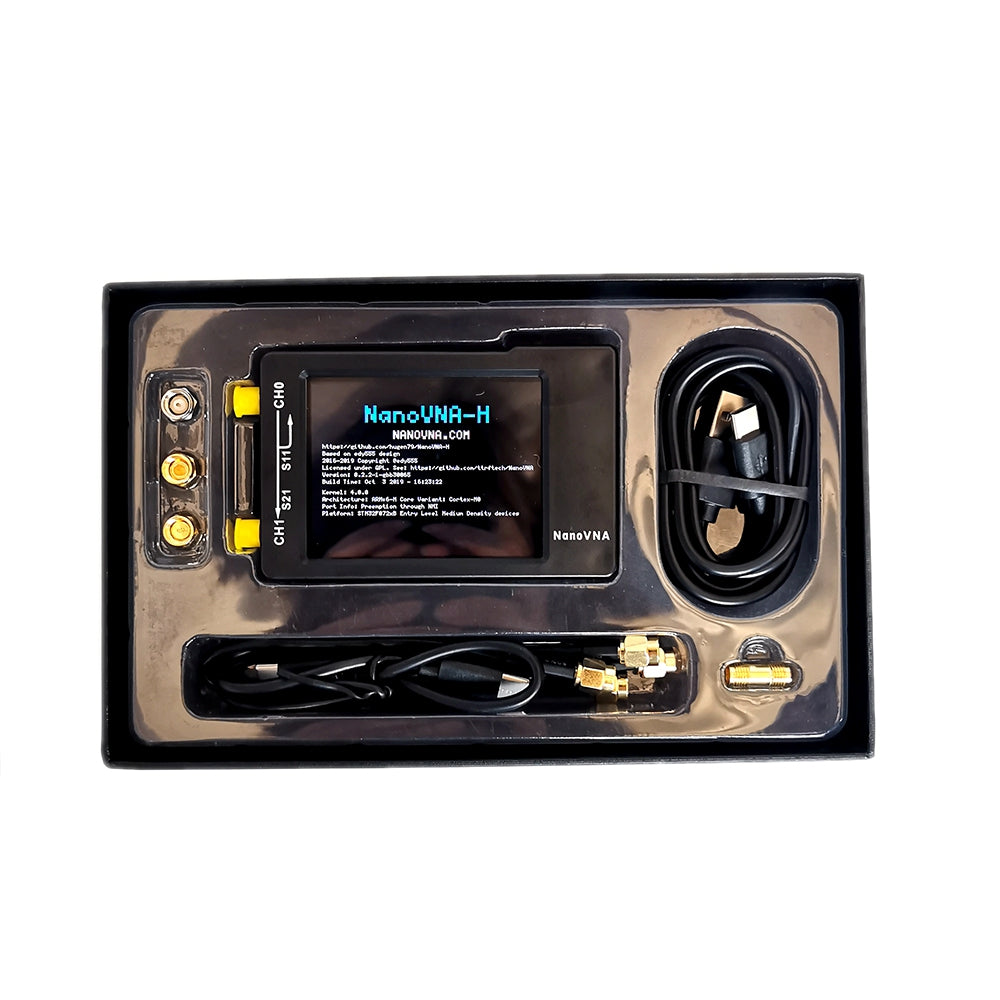

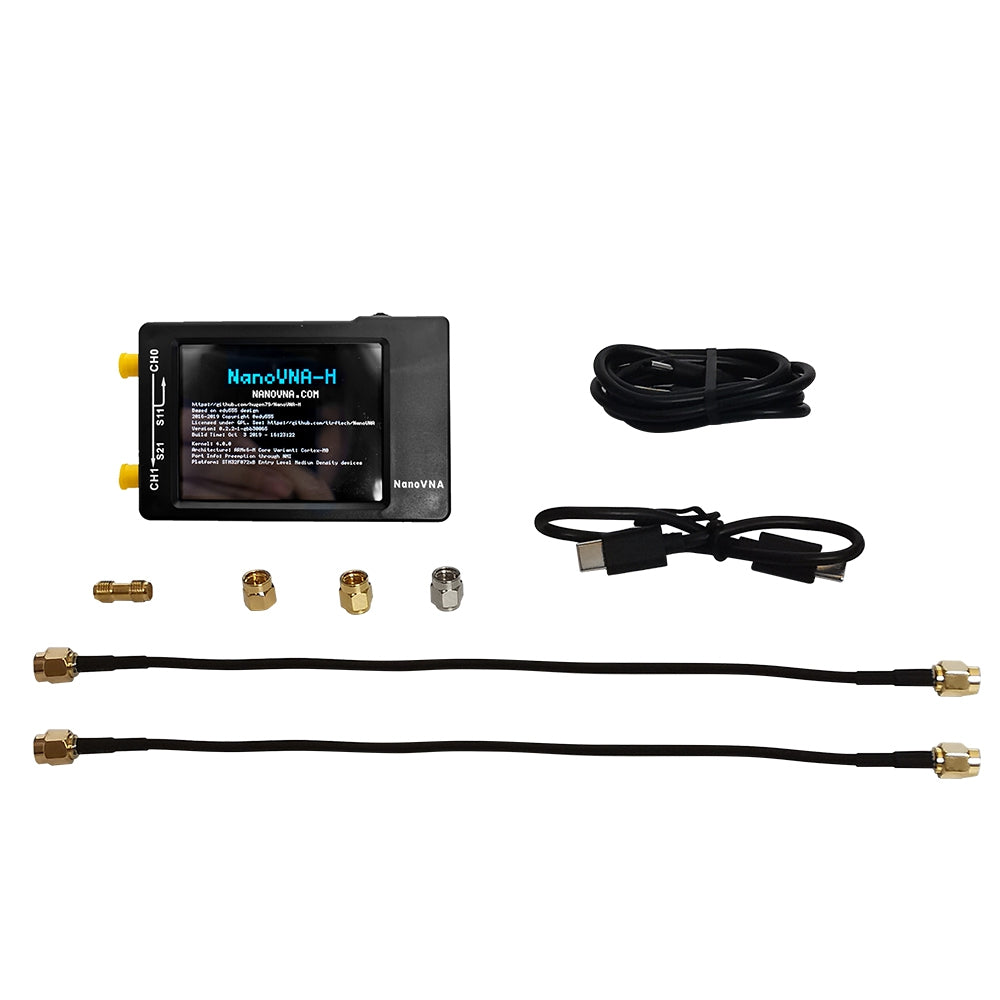

Package Includes:
1 x analyzer
2 x 20cm SMA male to male RG174 RF cable
1 x SMA female to female connector
1 x type-C to type-C cable
1 x 50Ω standard load
1 x open circuit calibration piece
1 x short circuit calibration piece
1 x USB type-C data cable
Note:
1. The SMA ports on the instrument are copper casting, do not connect the 50 - 7, RG213 and other cables directly to avoid damage to SMA ports. Best to connect the SMA ports to the SMA cables then connect other cables
2. Only available for Android devices
● Adopted 2.8" LCD touching screen, small and lightweight, easy to carry
● It can export touchstone (snp) files for various radio design and simulation software through the PC software
● This analyzer aims to provide an RF gadget but a useful instrument for the enthusiast
● TX / RX measurement can determine the complete S11 and S21 parameters, if you need to get S12 and S22, you need to manually replace the transceiver port wiring
Parameter:
● Measurement frequency: 50kHz - 900MHz
● RF output: - 13 dBm (maximum: -9 dBm)
● Frequency accuracy: less than 0.5ppm
● Measurement range: 70dB (50kHz - 300MHz), (50dB (300M - 600MHz), 40dB (600M - 900MHz) enable extended firmware)
● Port SWR: less than 1.1
● Display: 2.8" TFT (display resolution: 320 x 240)
● USB interface: USB type-C
● Communication mode: CDC (serial)
● Power consumption: USB 5V 120mA
● Battery: 400mAh lithium battery (built-in)
● Maximum charging current: 0.8A
● Number of calibration points: 101
● Number of scanning points: 101
● Display tracking: 4, marking: 4, setting save: 5
Package Includes:
1 x analyzer
2 x 20cm SMA male to male RG174 RF cable
1 x SMA female to female connector
1 x type-C to type-C cable
1 x 50Ω standard load
1 x open circuit calibration piece
1 x short circuit calibration piece
1 x USB type-C data cable
Note:
1. The SMA ports on the instrument are copper casting, do not connect the 50 - 7, RG213 and other cables directly to avoid damage to SMA ports. Best to connect the SMA ports to the SMA cables then connect other cables
2. Only available for Android devices
Package weight: 0.34 kg
Product Size(L x W x H): 8.55 x 5.40 x 1.10 cm / 3.37 x 2.13 x 0.43 inches
Package Size(L x W x H): 19.50 x 12.50 x 3.00 cm / 7.68 x 4.92 x 1.18 inches
Product Size(L x W x H): 8.55 x 5.40 x 1.10 cm / 3.37 x 2.13 x 0.43 inches
Package Size(L x W x H): 19.50 x 12.50 x 3.00 cm / 7.68 x 4.92 x 1.18 inches
Package Contents: 1 x Vector Network Analyzer Set
