Descriptions: Many motorcycle accidents are caused by the flat tire on the road. As a motorcycle owner, the safety of driving is the first thing. To reduce such accidents, the installation of tire pressure monitoring system (TPMS) is necessary. With the TPMS, we can keep the tire working within the specified pressure and temperature range at any time to reduce the damage of the tire for safe driving.
Main features: - Powerful TPMS: TPMS can monitor tire pressure / temperature status in real time, which will transmit real-time voice alarm and warning indicator light to remind the driver for driving safety.
- Wide compatibility: This system is widely compatible with those motorcycles with 2 tires. You don't have to worry about the compatibility issue.
- Power supply: Supports USB charging, which means that you could use the USB cable (not included) to charge it up while it is in low power, rather convenient.
- 2 external sensors: Its 2 external sensors with IP67 waterproof grade are suitable for being used on rainy days. Besides, they are in high sensitivity and good accuracy for measuring pressure and temperature.
Specifications: External sensor: - Battery: built-in 140mAh button cell - Waterproof grade: IP67 - Working temperature: -30 - 80 Deg.C - Storage temperature: -30 - 85 Deg.C TPMS: - Battery: built-in 345mAh Li-ion battery - Operating voltage: 3V - Working frequency: 2.4GHz - Response time: 6s - Working humidity: 95 percent and less - Pressure monitoring range: 100 - 900 kPa - Pressure accuracy: minus or plus 10 kPa
Type: Tire Voltage Monitoring System Material: Metal,Plastic Waterproof: IP67
Package weight: 0.298 kg Product size (L x W x H): 5.25 x 5.25 x 2.85 cm / 2.07 x 2.07 x 1.12 inches Package size (L x W x H): 12.00 x 9.00 x 6.50 cm / 4.72 x 3.54 x 2.56 inches

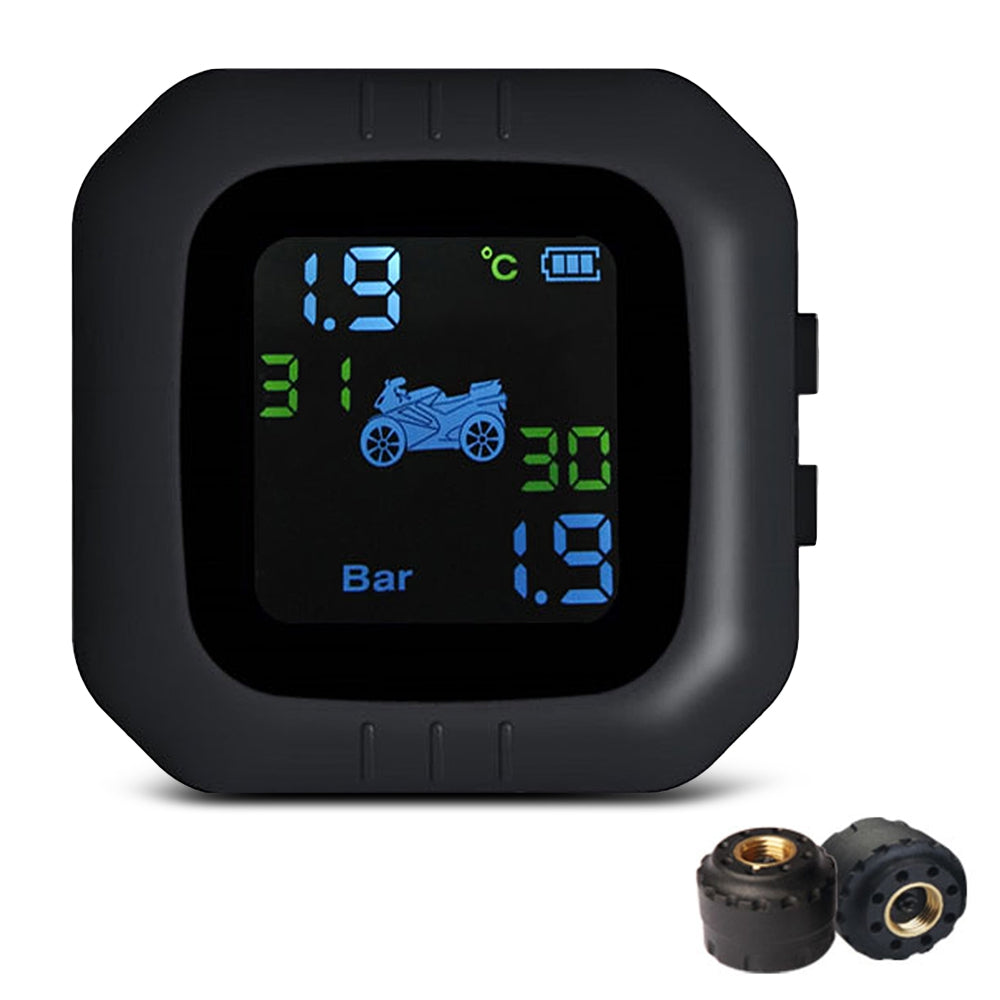

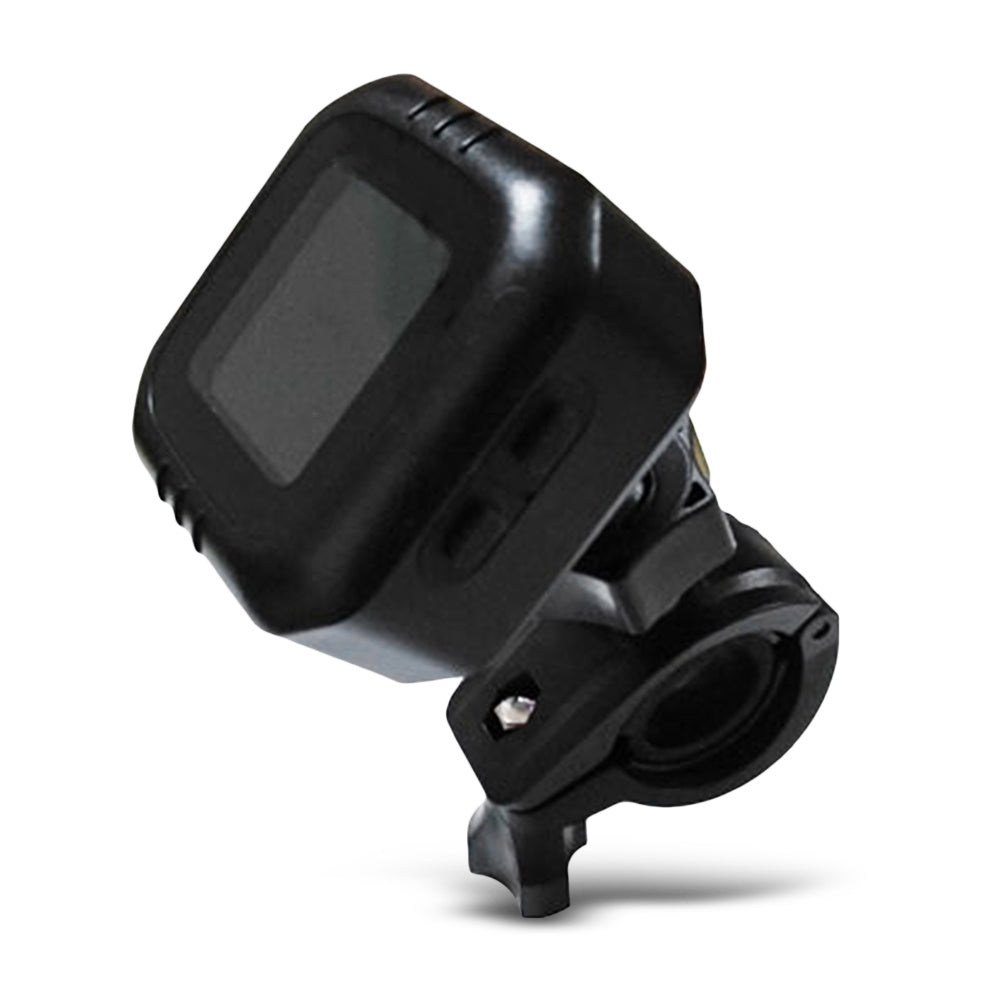

Package Contents: 1 x TPMS with Mounting Holder, 2 x Sensor
IPXX Rating Chart
The IP Code (or International Protection Rating, sometimes also interpreted as Ingress Protection Rating*) consists of the letters IP followed by two digits and an optional letter. As defined in international standard IEC 60529, it classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures. The standard aims to provide users more detailed information than vague marketing terms such as waterproof.
The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. For example, an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. IP22 or 2X are typical minimum requirements for the design of electrical accessories for indoor use.
