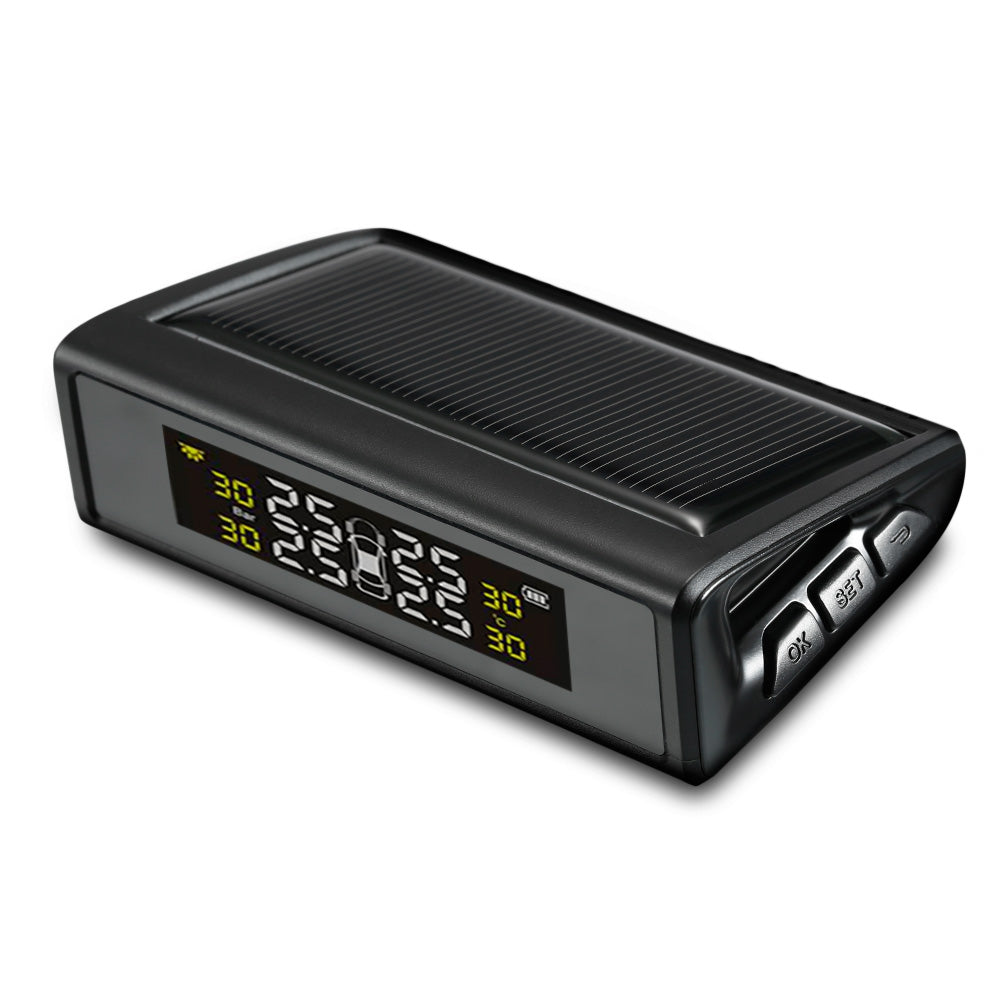

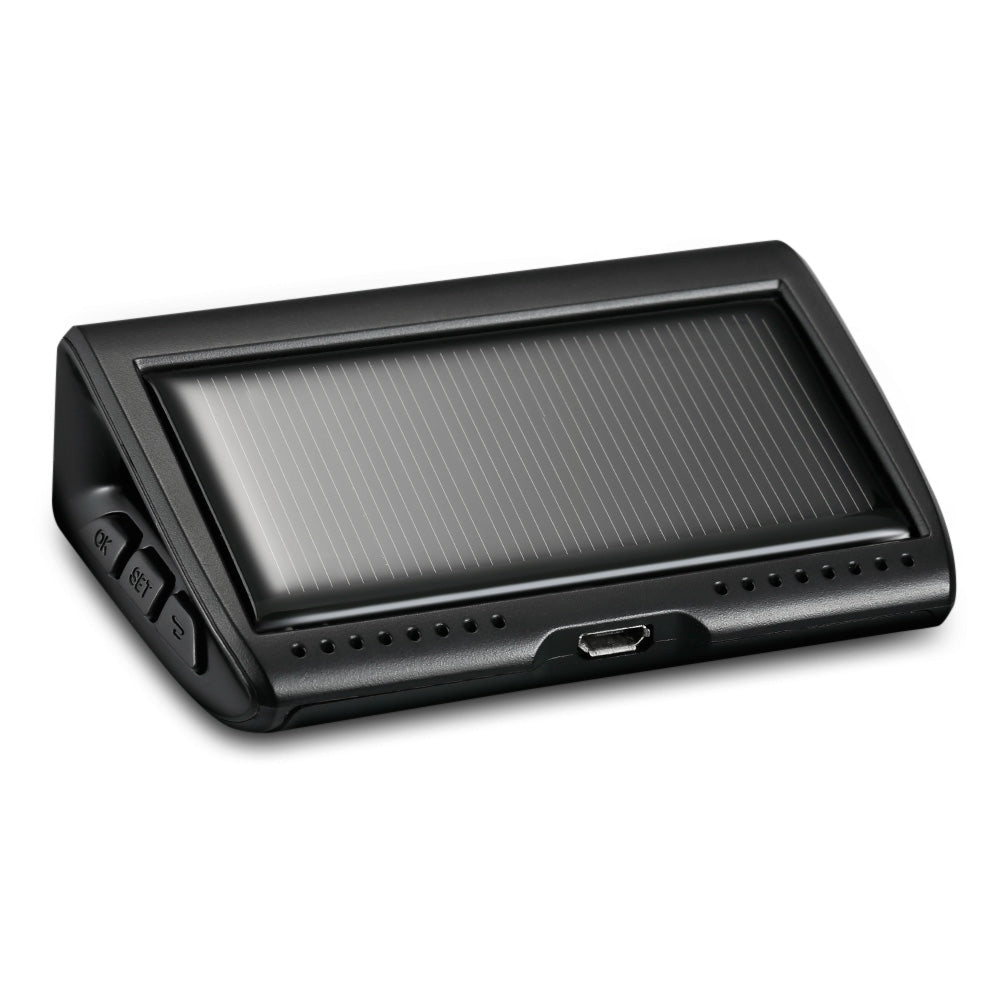

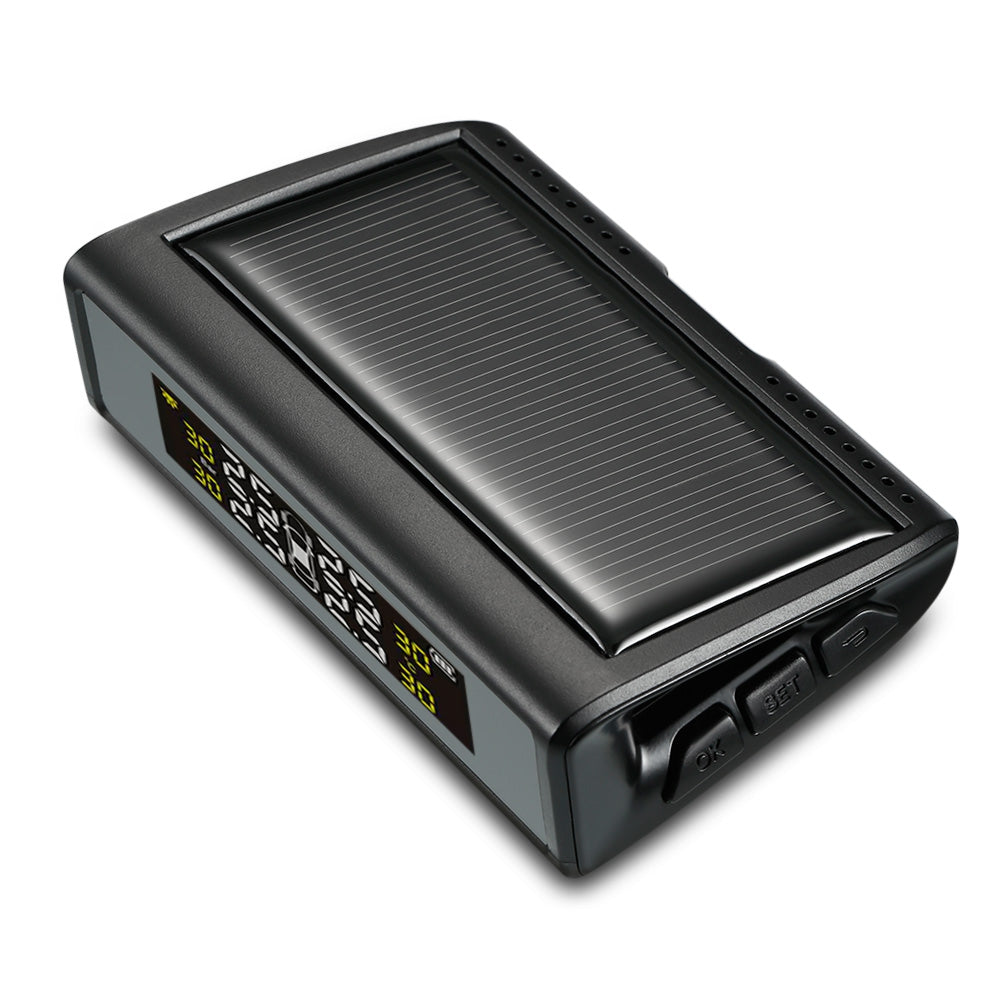

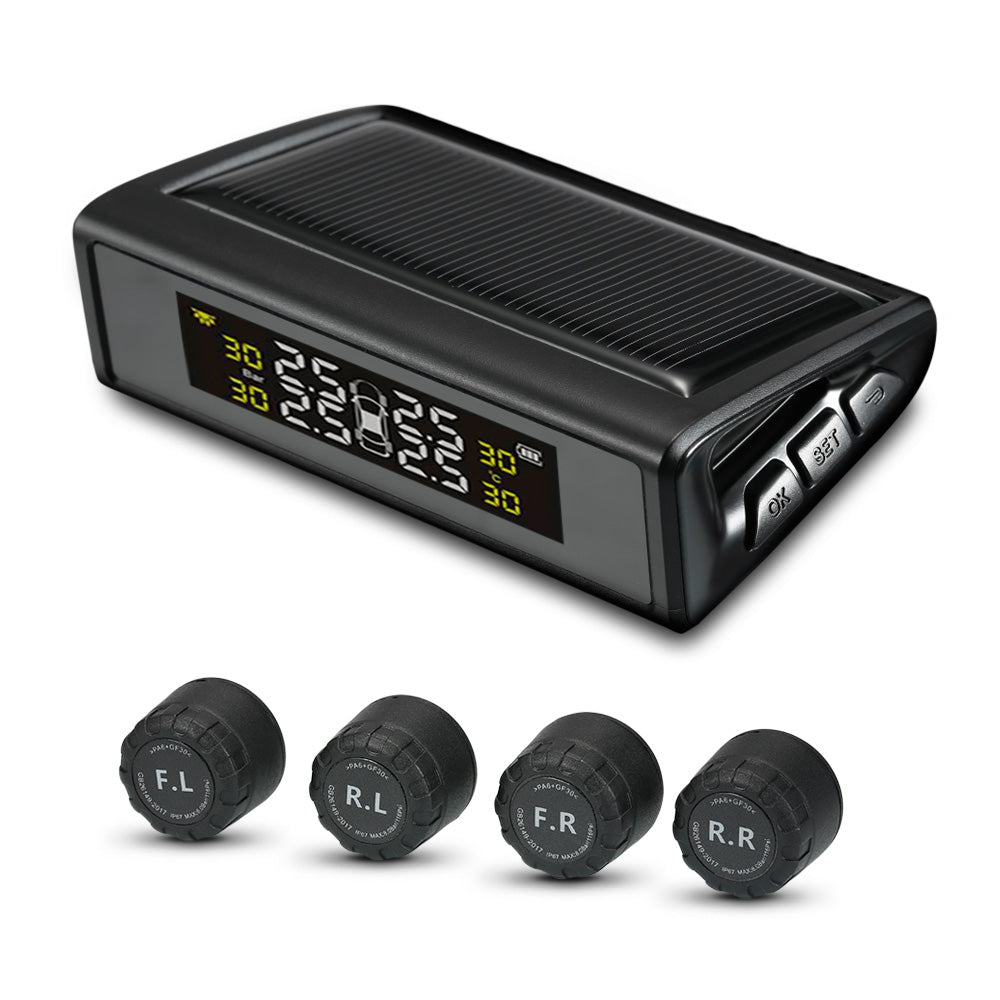

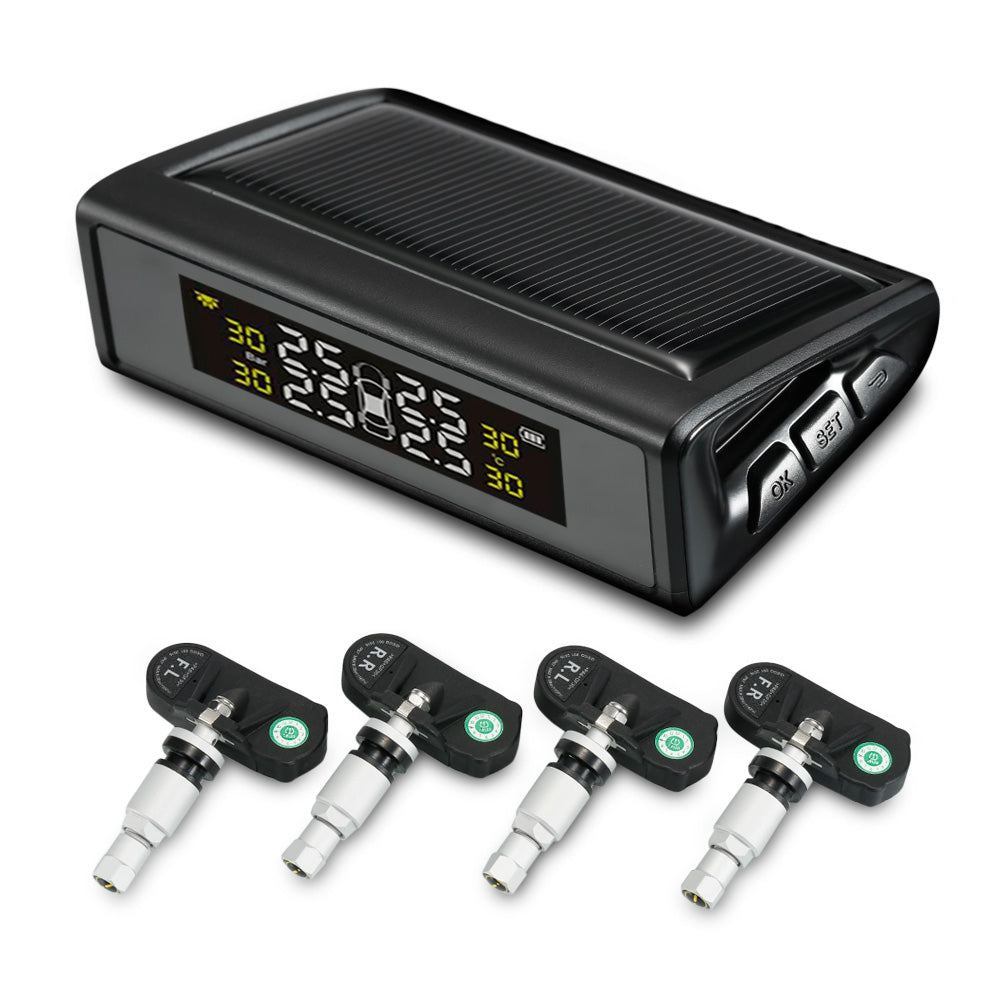

Main features: - Real-time monitor: This TPMS can provide the pressure and temperature statuses of 4 tires in real time. When the data are abnormal, the driver will get the voice alarm and flashing warning icon. - Digital display: Its LCD screen with the bright and clear data, easy to read, allows you to know the status of your car easily and quickly. - Power supply: Supports solar charging and USB charging, which means it could be used in all weathers, rather convenient. - Wide application: This system is widely suitable for most vehicles with 4 tires, such as the commercial car, jeep, off-road vehicle, minibus, and sedan car, etc. - 4 external / internal sensors: We provide 4 sensors with good accuracy for measuring pressure and temperature, which are also suitable for being used on rainy days. You could choose the external sensors or internal sensors according to your need.

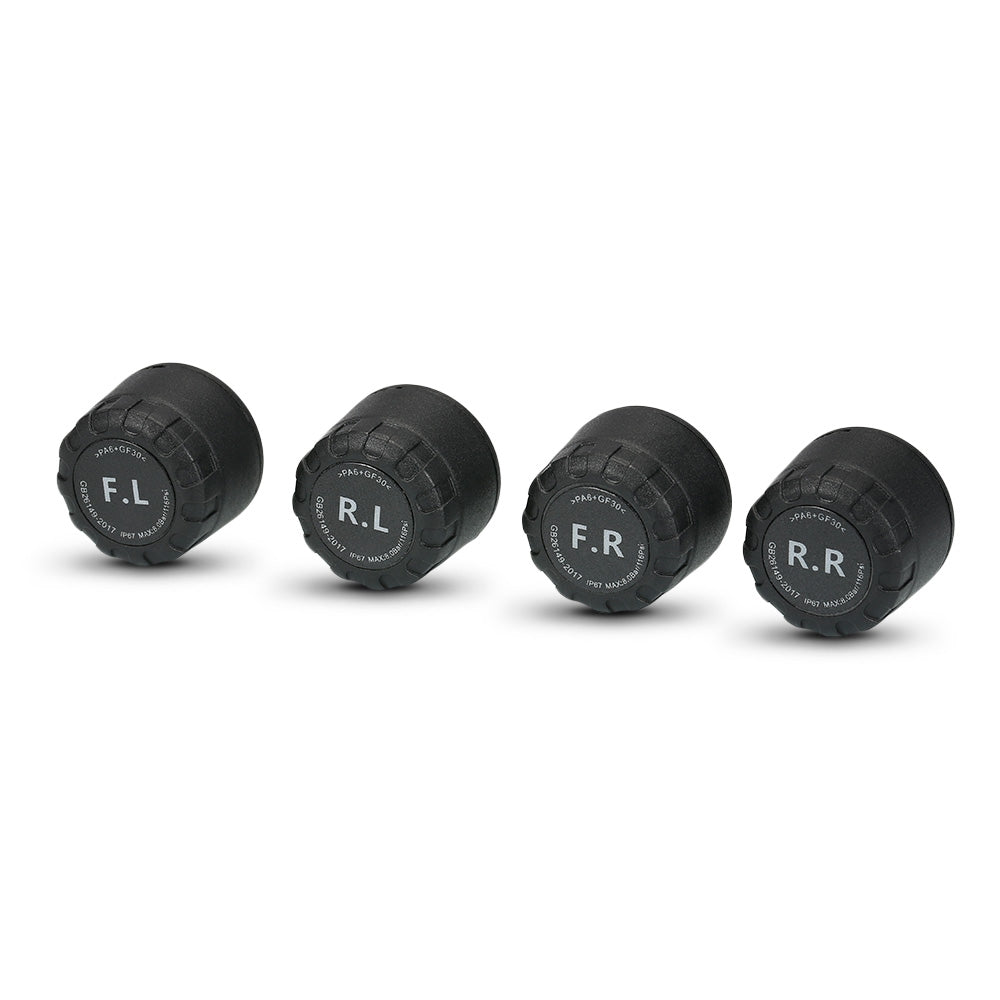

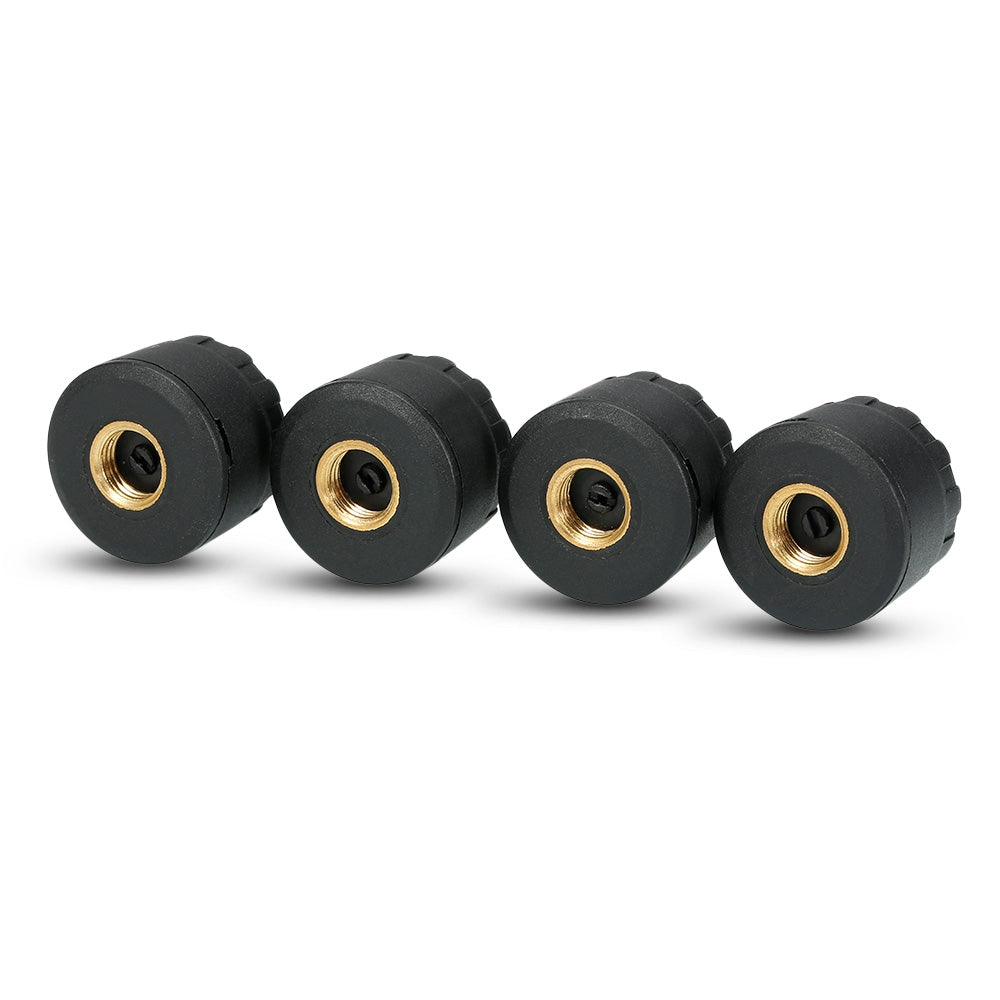

External sensor: - Battery: built-in CR1632 button cell - Working voltage: 2.1 - 3.6V - Working temperature: -30 - 80 Deg.C - Storage temperature: -35 - 85 Deg.C - Working pressure: 0 - 99 psi - Pressure accuracy: plus or minus 1.5 psi - Temperature accuracy: plus or minus 2 Deg.C - Waterproof grade: IP67 - Transmission frequency: 433.92MHz - Transmission power: less than 10dBm

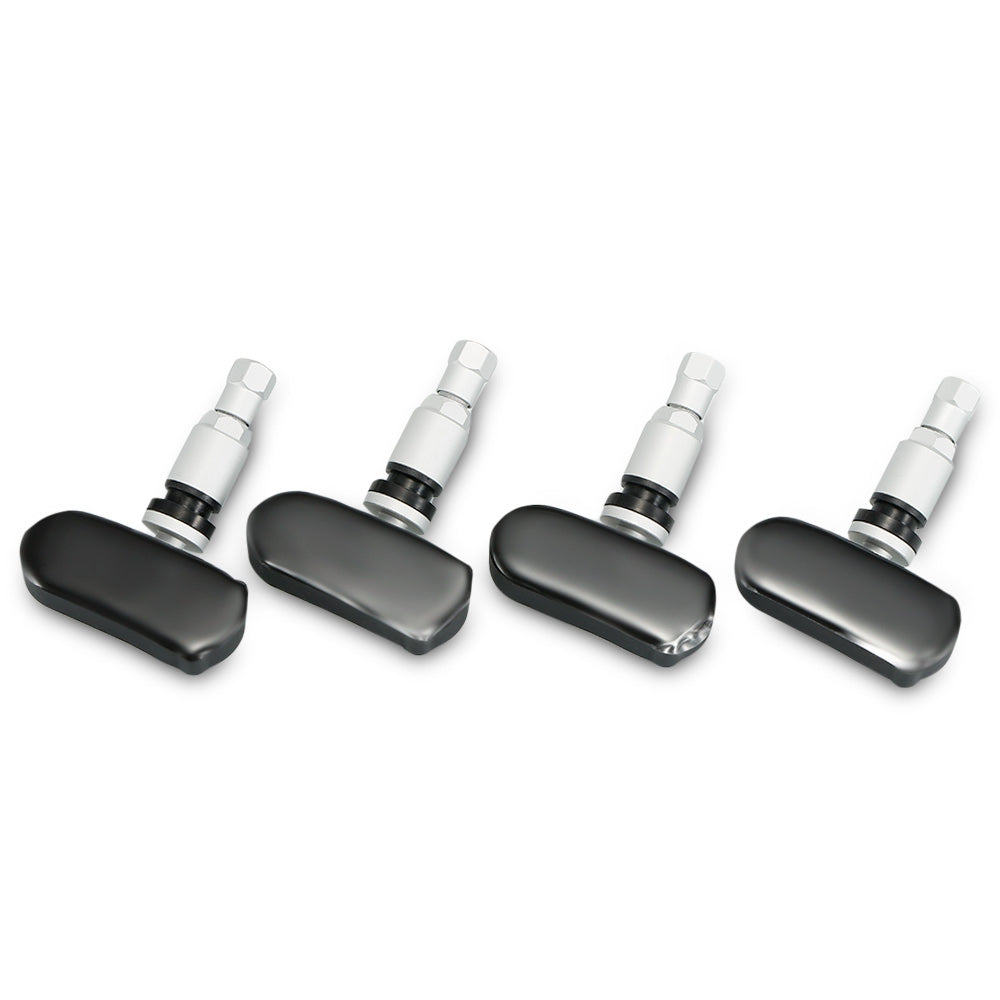

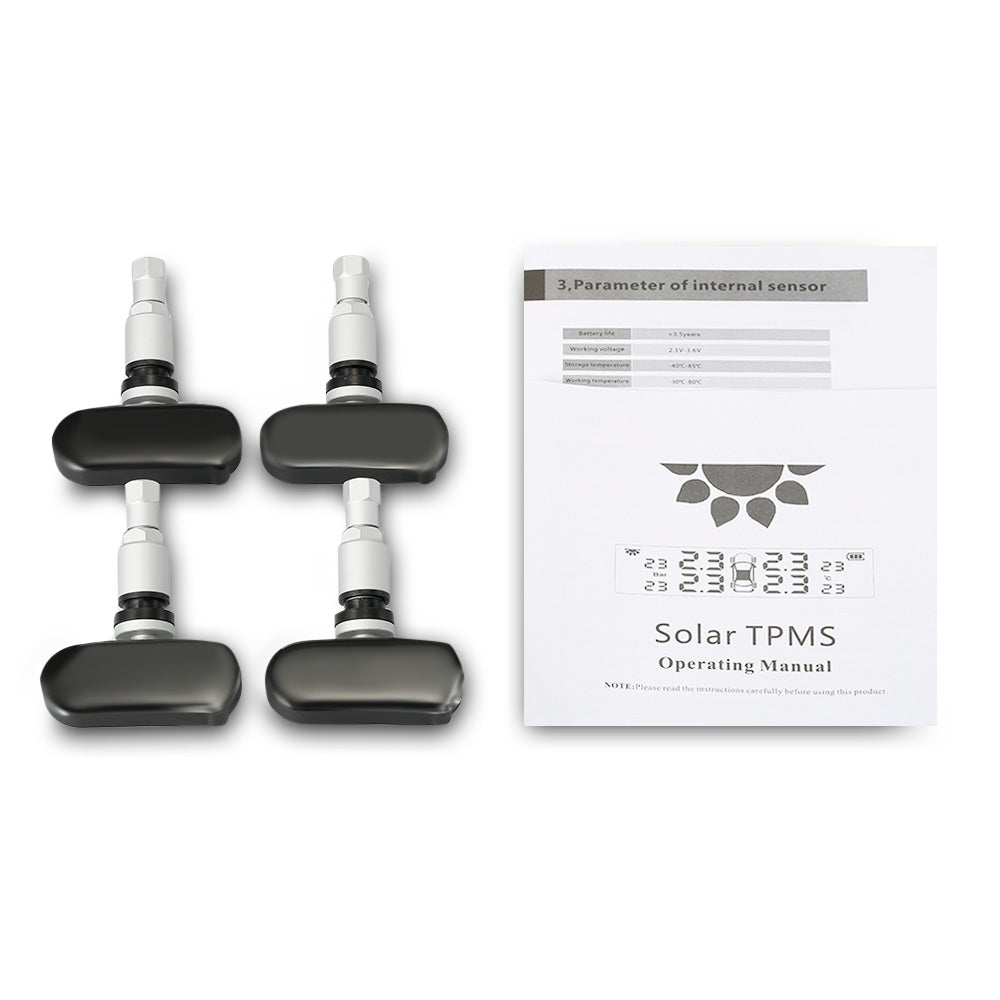

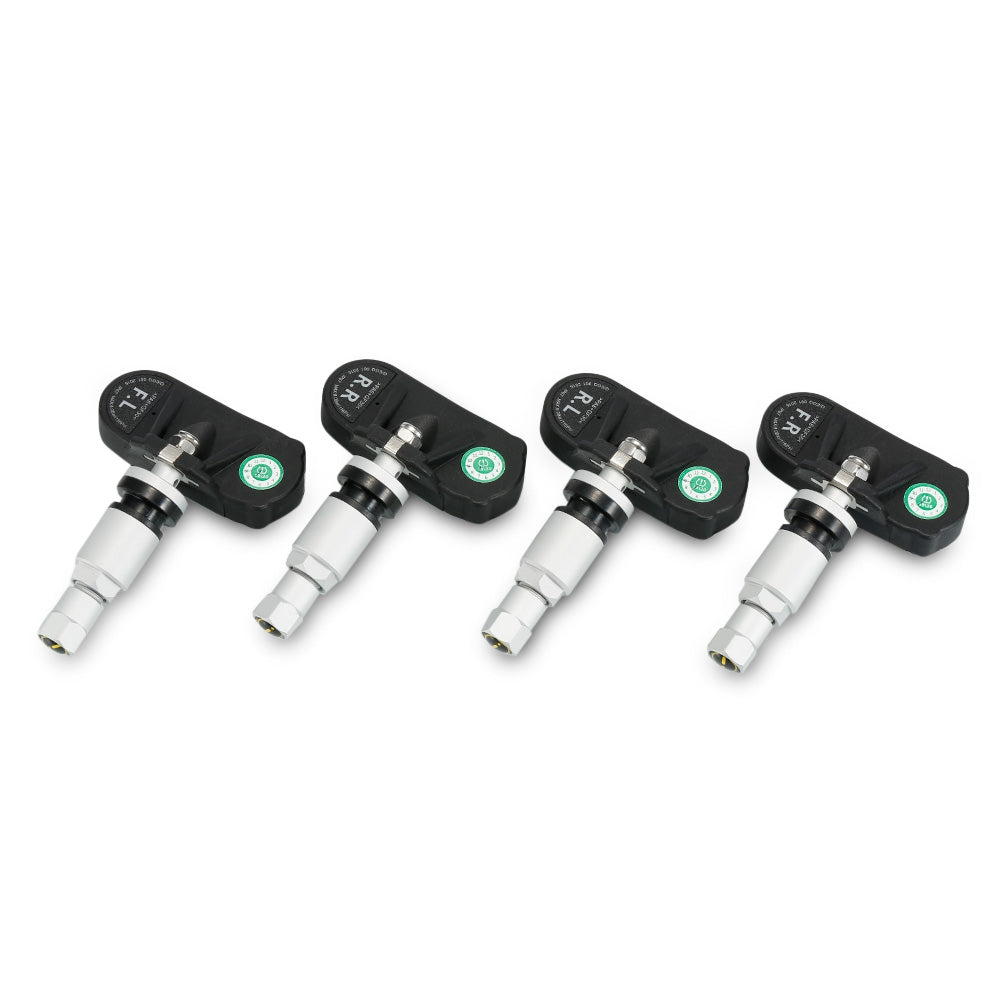

Internal sensor: - Battery: built-in CR1632 button cell - Working voltage: 2.1 - 3.6V - Storage temperature: -40 - 85 Deg.C - Working temperature: -30 - 80 Deg.C - Temperature accuracy: plus or minus 2 Deg.C - Working pressure: 0 - 99 psi - Pressure accuracy: plus or minus 1.5 psi - Waterproof grade: IP67 - Transmission power: less than 10dBm - Transmission frequency: 433.92MHz
Package weight: 0.362 kg Package Size(L x W x H): 15.40 x 13.30 x 7.50 cm / 6.06 x 5.24 x 2.95 inches

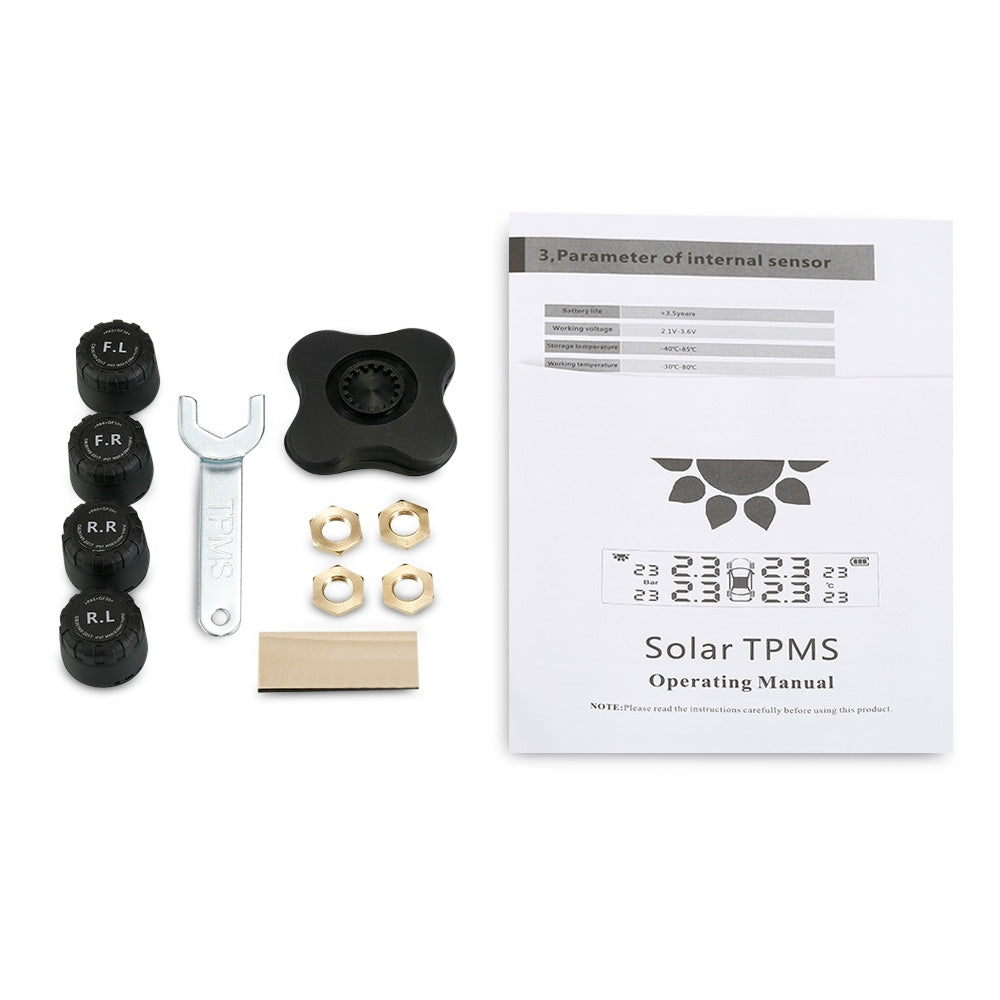

Package Contents: 1 x TPMS, 4 x External Sensor, 1 x Adhesive Tape, 1 x Battery Replacement Tool, 1 x Wrench, 4 x Anti-theft Nut, 2 x English User Manual
IPXX Rating Chart
The IP Code (or International Protection Rating, sometimes also interpreted as Ingress Protection Rating*) consists of the letters IP followed by two digits and an optional letter. As defined in international standard IEC 60529, it classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures. The standard aims to provide users more detailed information than vague marketing terms such as waterproof.
The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. For example, an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. IP22 or 2X are typical minimum requirements for the design of electrical accessories for indoor use.
