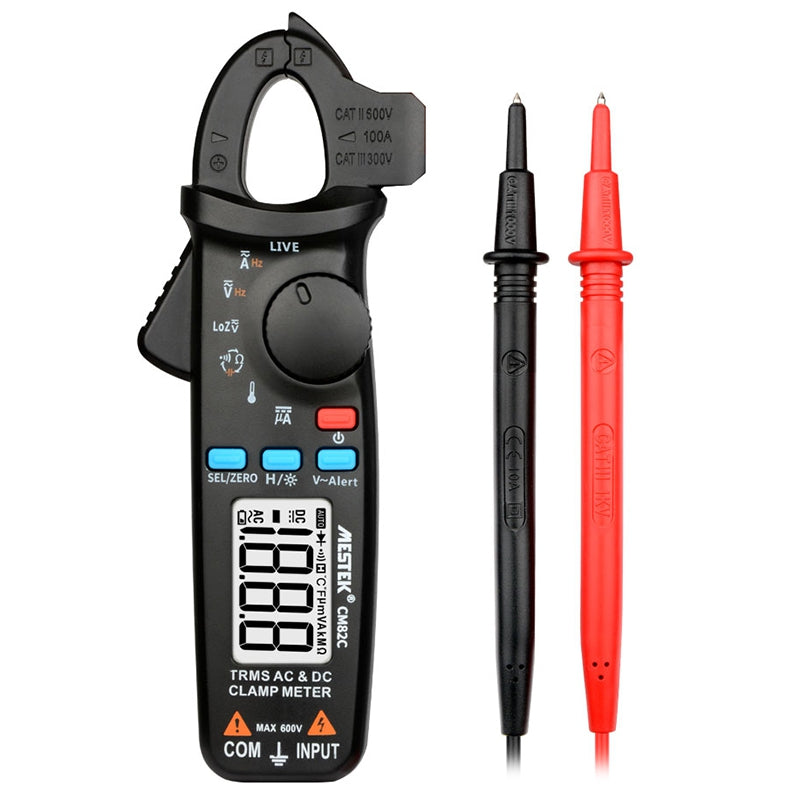

Main Features ● Equipped with different test functions. Meet the needs of different customers at a more affordable price ● True-RMS characteristics. When measuring 0 - 6A current, CM82C can be accurate to 1mA. Can effectively meet the needs of professionals ● "Zero Clear Function" ( ZERO ). Used before the DC current test can effectively reduce the test error ● One hand can switch any function ( complete in 1.5 seconds ) ● LIVE wire check function and V - alert function quick identify mains connection status ● Display double line shows can display voltage or current and frequency at the same time ● Streamlined design for more comfortable operation ● This product has excellent LoZ low-impedance test function and DC microampere detection function, which is very suitable for the maintenance industry.
Test Parameters DC current: 6A / 60A / 100A 0.001A / 0.01A / 0.1A ± ( 3.0% + 5 counts ) DC current ( uA ): 0 - 200uA 0.1uA ± ( 0.8% + 5 counts ) AC current: 6A / 60A / 100A 0.001A / 0.01A / 0.1A ± ( 2.5% + 5 counts ) DC voltage: 6V / 60V / 600V 0.001V / 0.01V / 0.1V ± ( 1.0% + 3 counts ) AC voltage: 6V / 60V / 600V 0.001V / 0.01V / 0.1V ± ( 1.0% + 3 counts ) Resistance: 600 / 6k / 60k / 600k / 6M ohm 0.1 / 0.001K / 0.01K / 0.1K / 0.001M ohm ± ( 1.0% + 3 counts ) 60Mohm 0.01Mohm ± ( 1.2% + 20 counts ) Capacitance: 600uF / 6000uF 0.1uF / 1uF ± ( 4.0% + 3 counts ) Frequency: 60Hz / 1000Hz 0.1Hz / 1Hz ± ( 1.0% + 5 counts ) Frequency ( by jaws ): 60Hz / 1000Hz 0.1Hz / 1Hz ± ( 1.0% + 5 counts ) Low impedance LOZ: Max 600V Resolution 0.1V Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds Temperature: -20°C - 500°C 1°C / 2°F ( 2.0% + 2 counts ) Jaw capacity: 20mm Power: 1.5V ( AAA ) x 2 ( not included ) Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II
Brand: MESTEK Working Height: 20mm
Package weight: 0.386 kg Product size (L x W x H): 17.90 x 6.70 x 3.60 cm / 7.05 x 2.64 x 1.42 inches Package size (L x W x H): 19.00 x 12.00 x 5.00 cm / 7.48 x 4.72 x 1.97 inches

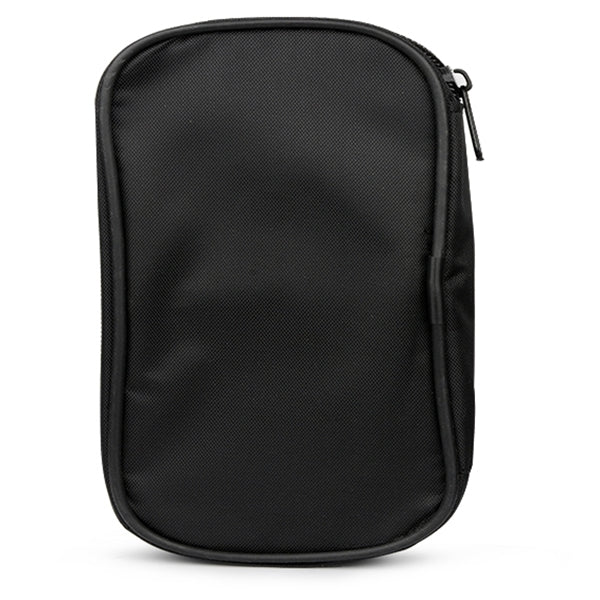

Package Contents: 1 x Digital Clamp Meter, 1 x Test Lead, 1 x Thermocouple, 1 x English User Manual, 1 x Carrying Case
