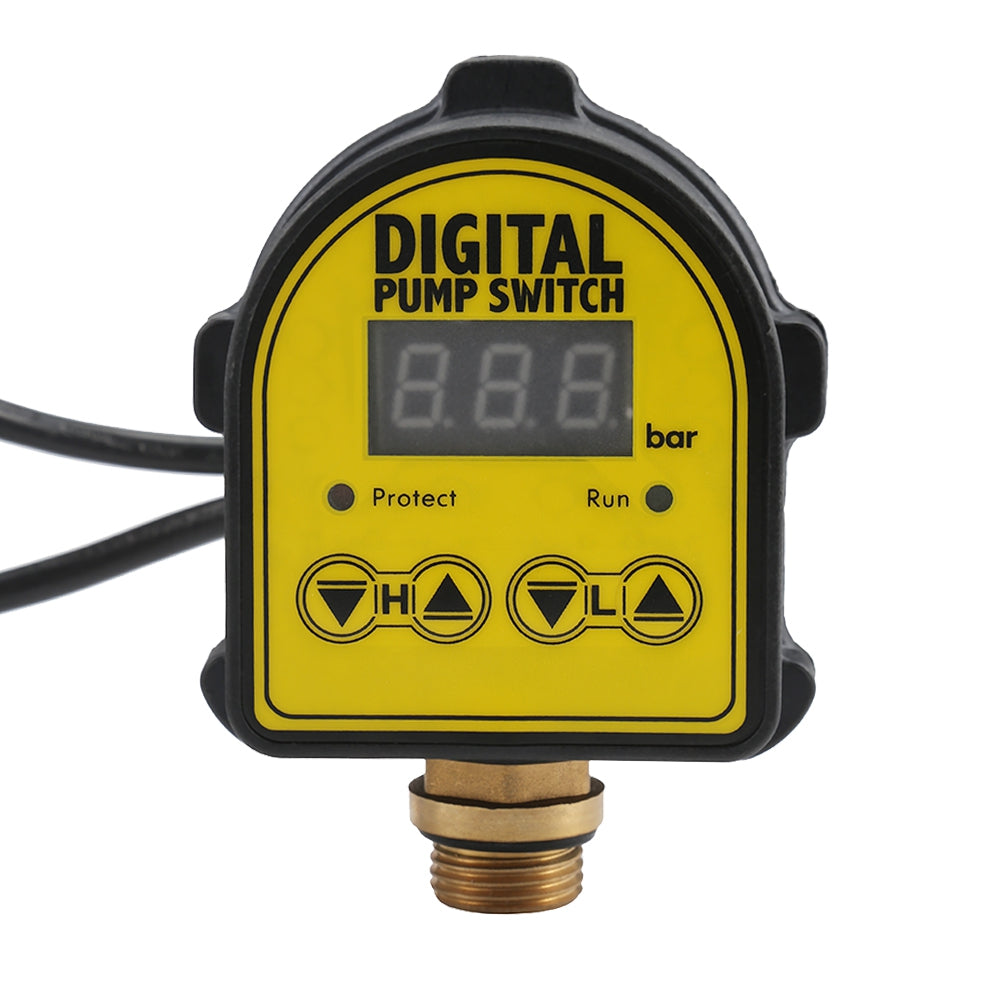

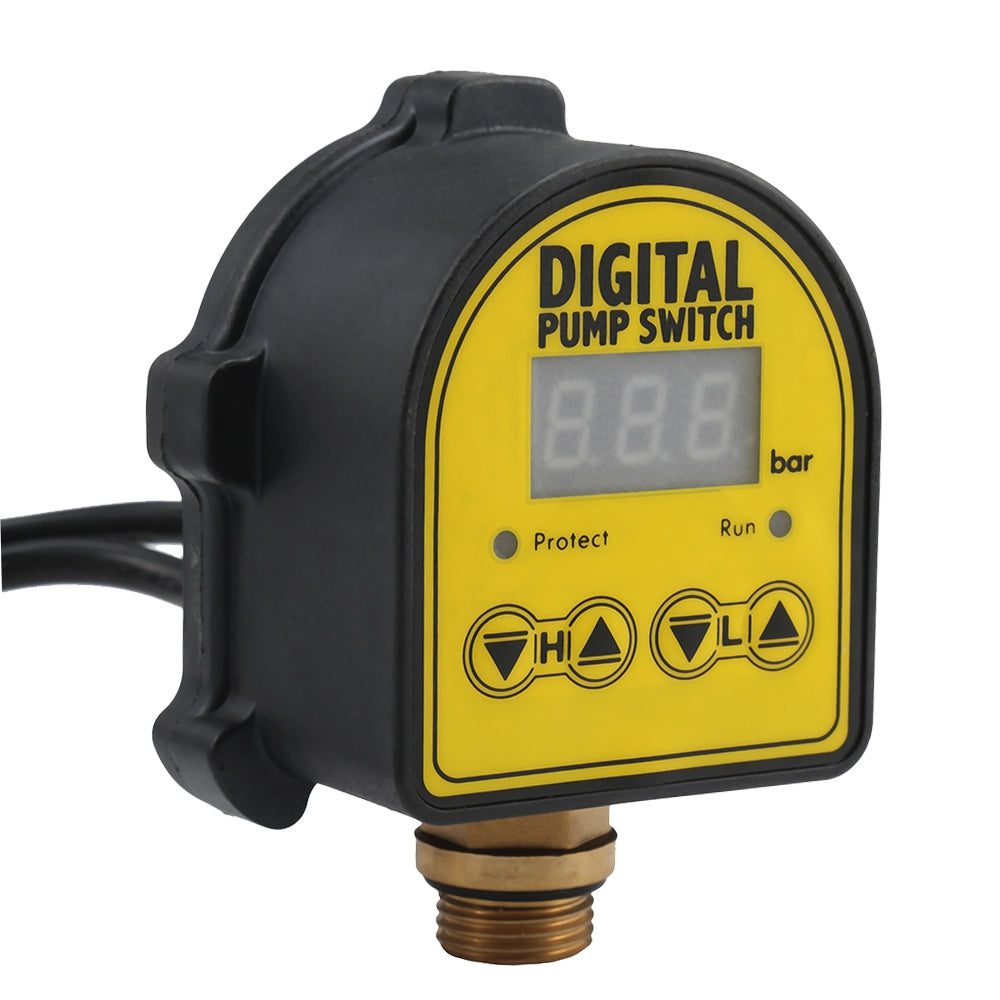

Main Features: - Automatically stop pumping for water shortage and automatically work when water is supplied. - Pressure transmitter inside, stable and accurate. - MCU micro computer process chip, safe and intelligent control. - One-click set up on / off limit. - Shock-proof, strong anti-interference, fast response, stable performance and long service life. - Long service life, it can be used continuously for more than 20 million times.

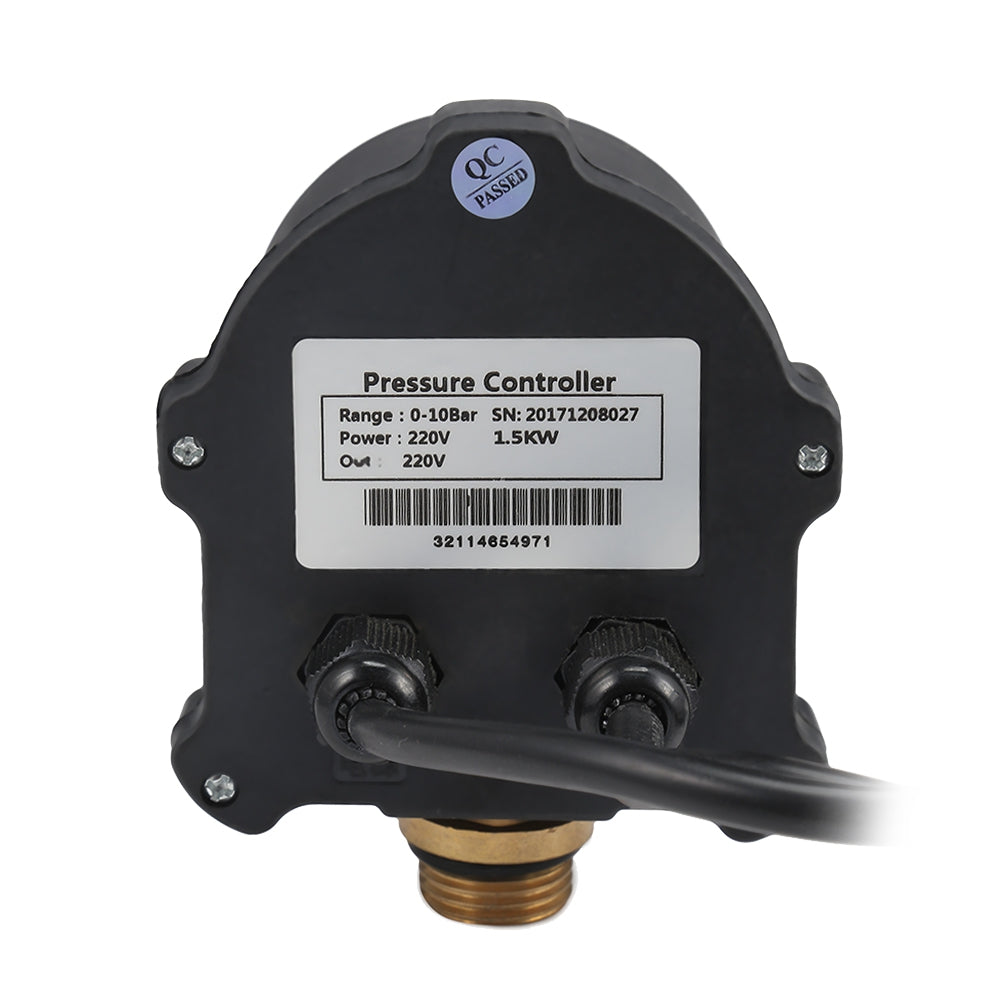

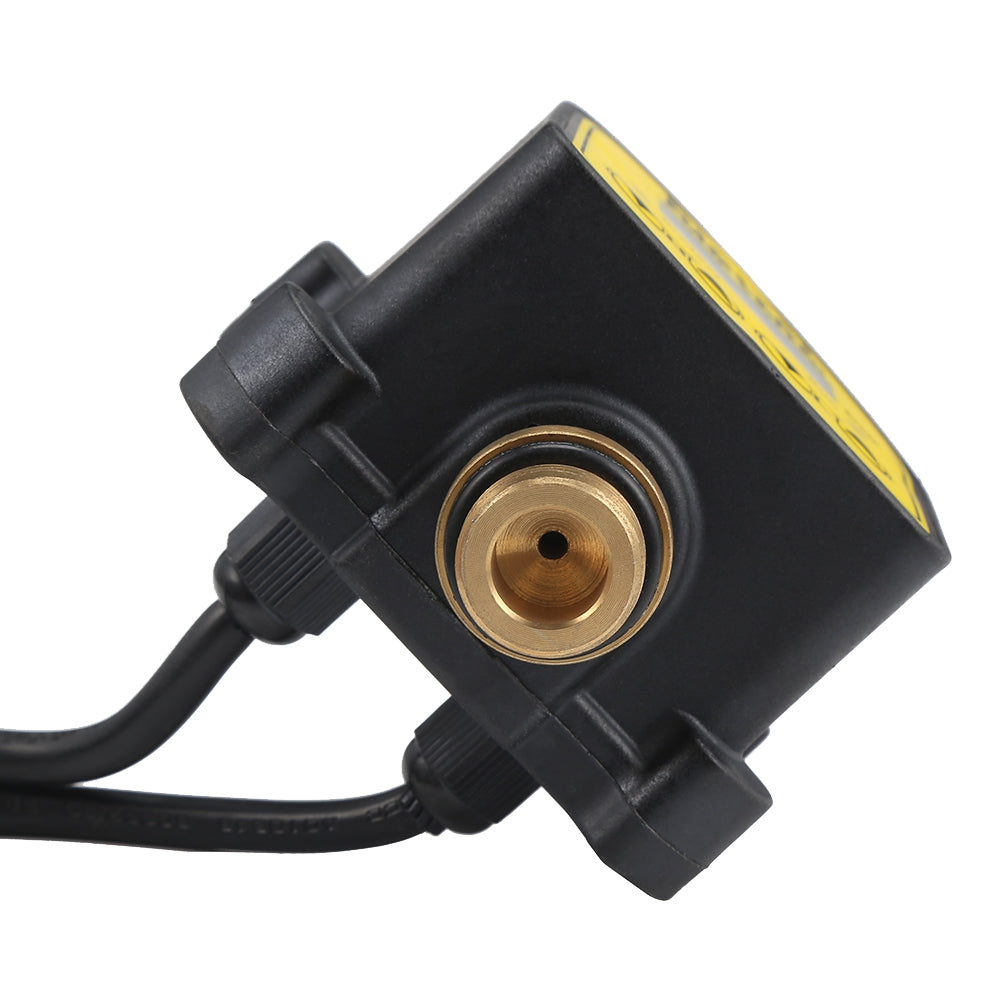

Specifications: - Working pressure range: 0 - 10bar, matching with all pumps - Power supply: 220V - Output signal: active output, to provide pump 220V, start the pump below 1.5KW directly. - Fluid Temperature: 80℃ - Installation Interface: 20mm - Waterproof performance: IP66

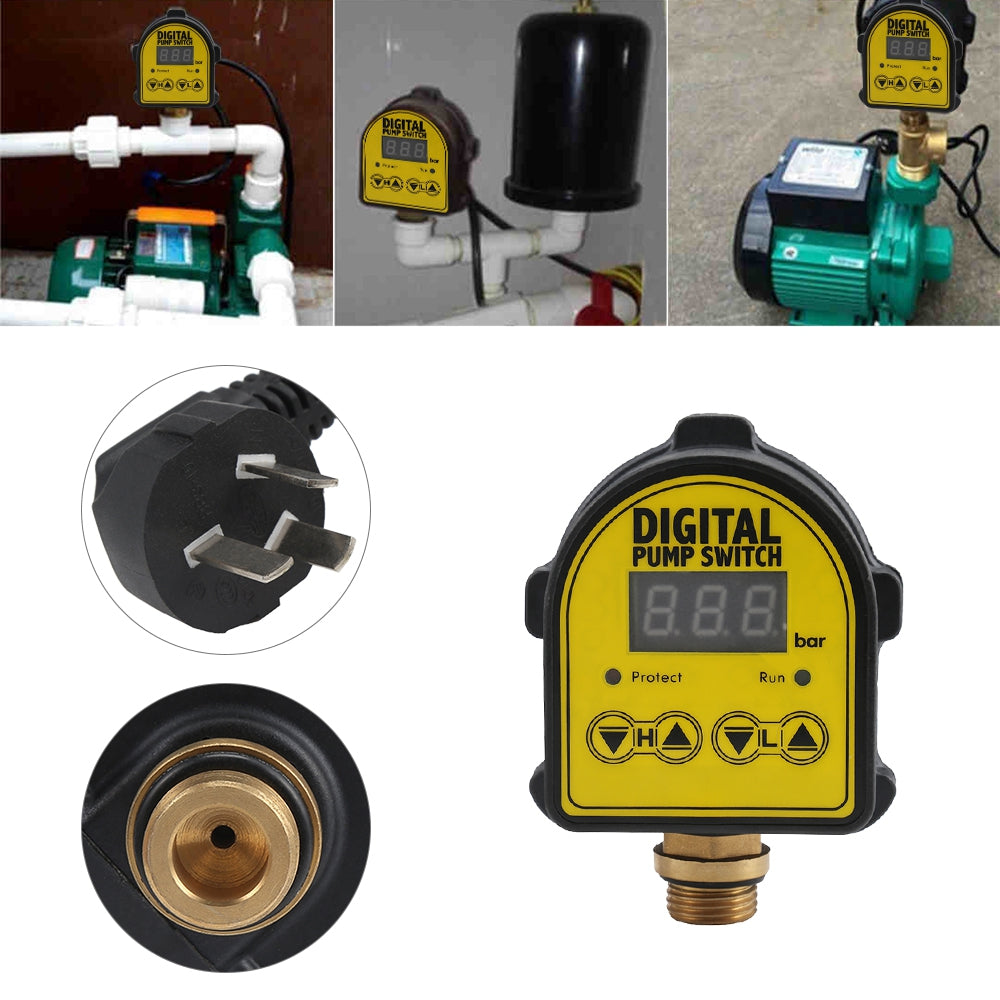

Installation Remarks: 1. If the pump doesn't have a check valve, then a check valve must be installed in front of the pressure pump, in this case the pump may on / off more frequently. 2. When you turn on the tap water, if the pump is on / off time to time, please adjust the H valve to a larger value. 3. If the pump keep running with stopping, please lower the H valve, on the other hand, if the pump doesn't work, please set the L valve to a higher value.
Notes: 1. Professional installation is highly recommended. 2. Please read the related documents or instructions before using the pressure switch.
Package weight: 0.466 kg Package Size(L x W x H): 12.00 x 8.80 x 9.90 cm / 4.72 x 3.46 x 3.9 inches

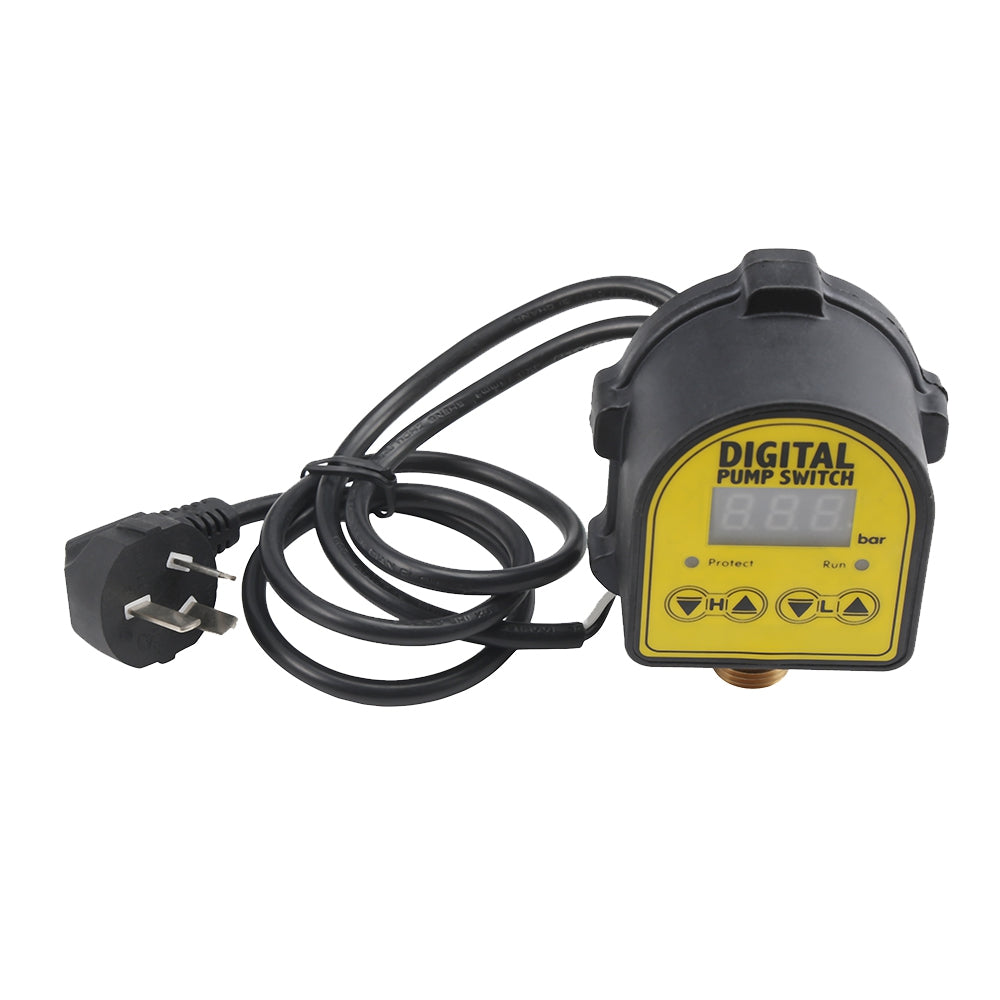

Package Contents: 1 x Pressure Controller
IPXX Rating Chart
The IP Code (or International Protection Rating, sometimes also interpreted as Ingress Protection Rating*) consists of the letters IP followed by two digits and an optional letter. As defined in international standard IEC 60529, it classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures. The standard aims to provide users more detailed information than vague marketing terms such as waterproof.
The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. For example, an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. IP22 or 2X are typical minimum requirements for the design of electrical accessories for indoor use.
