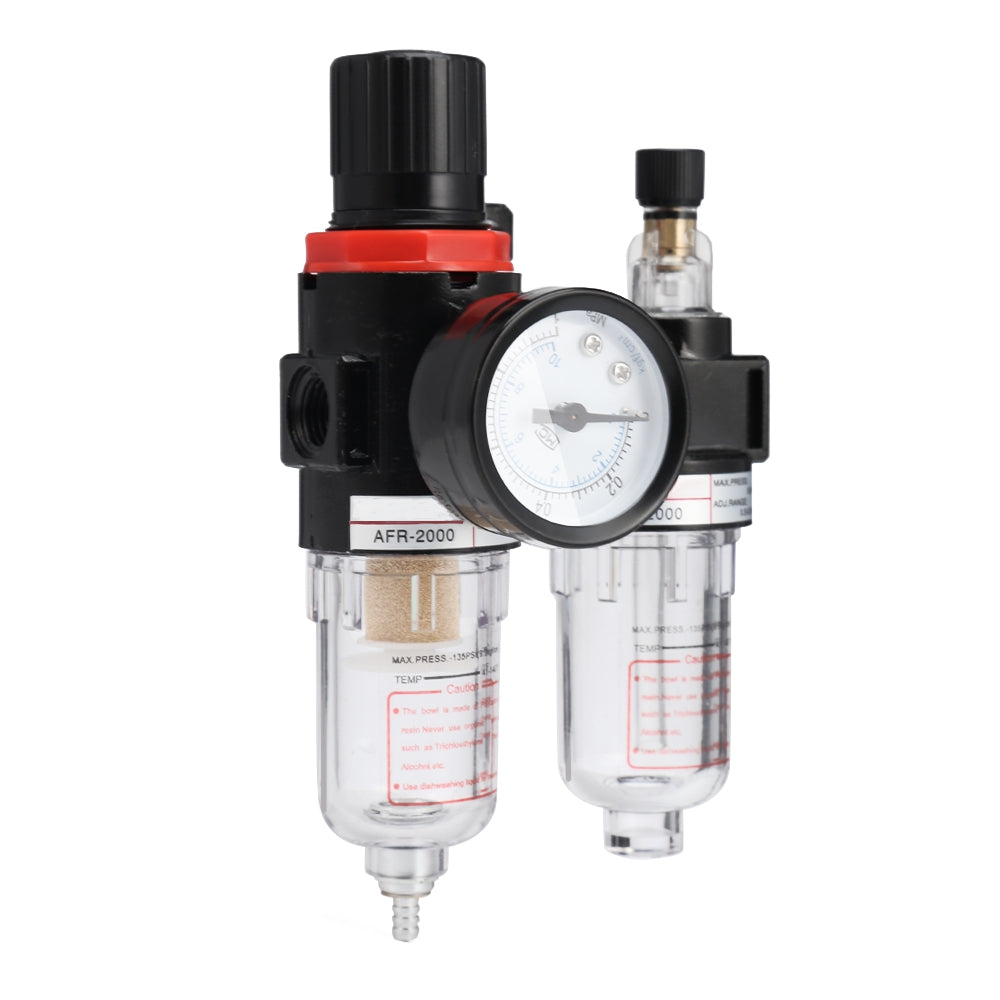

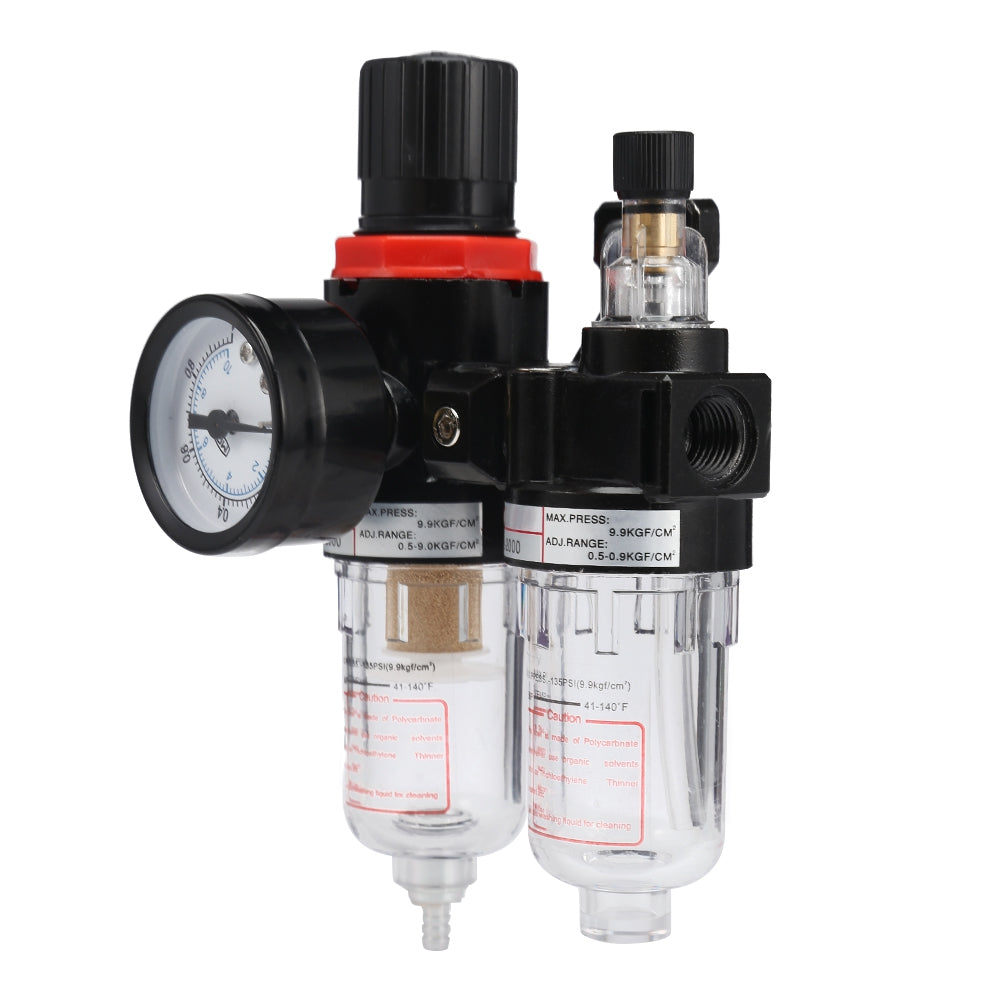

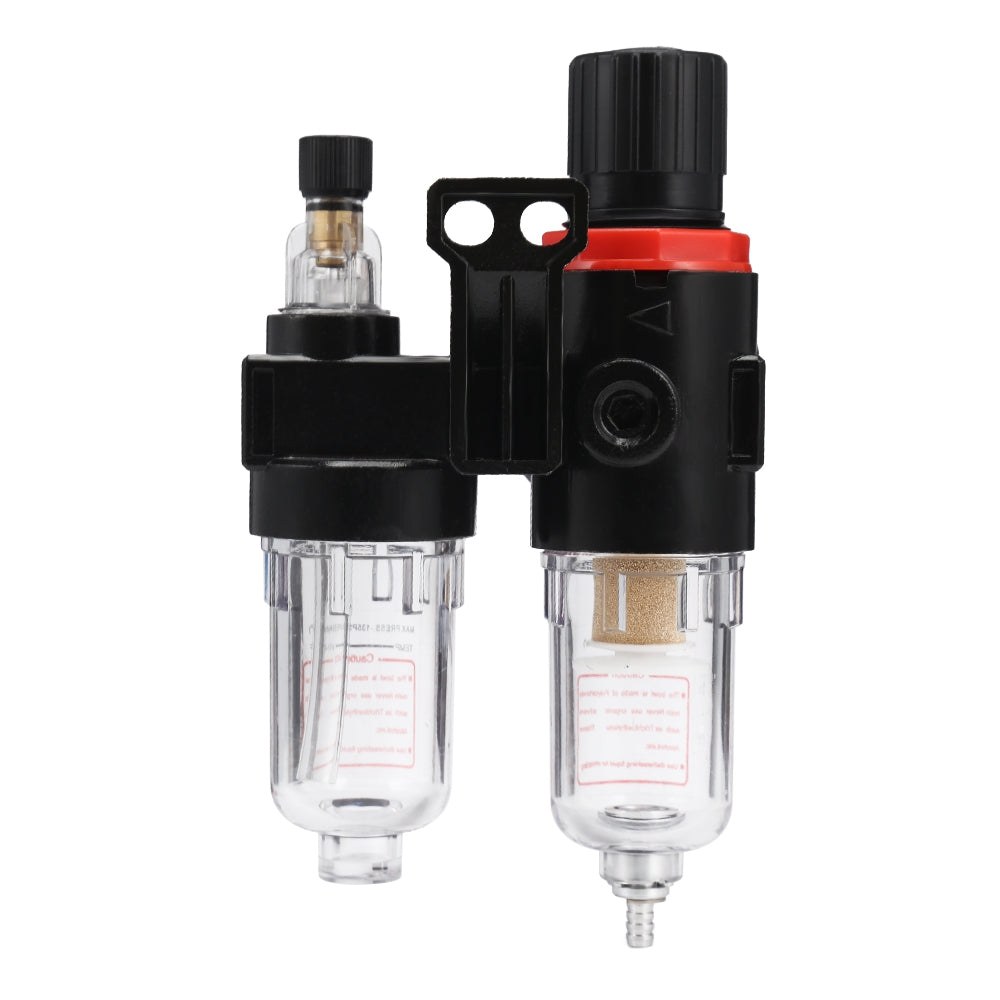

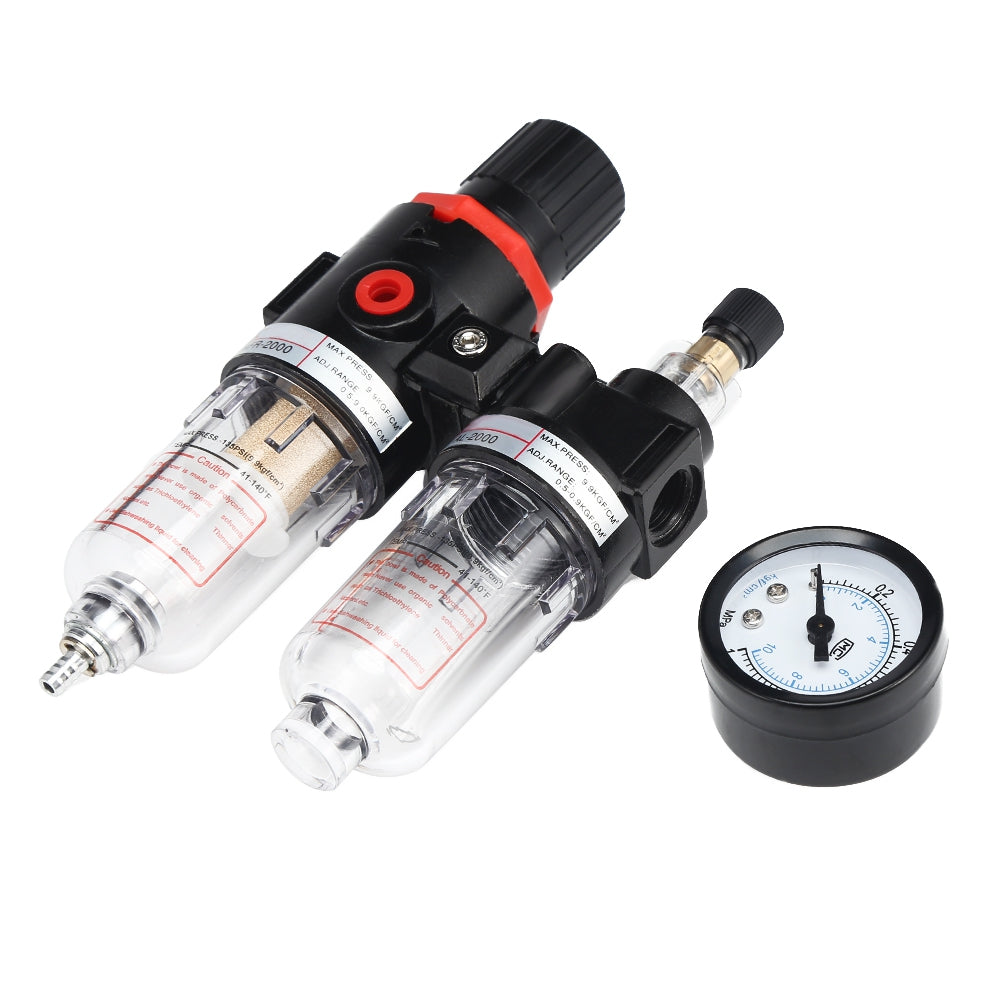

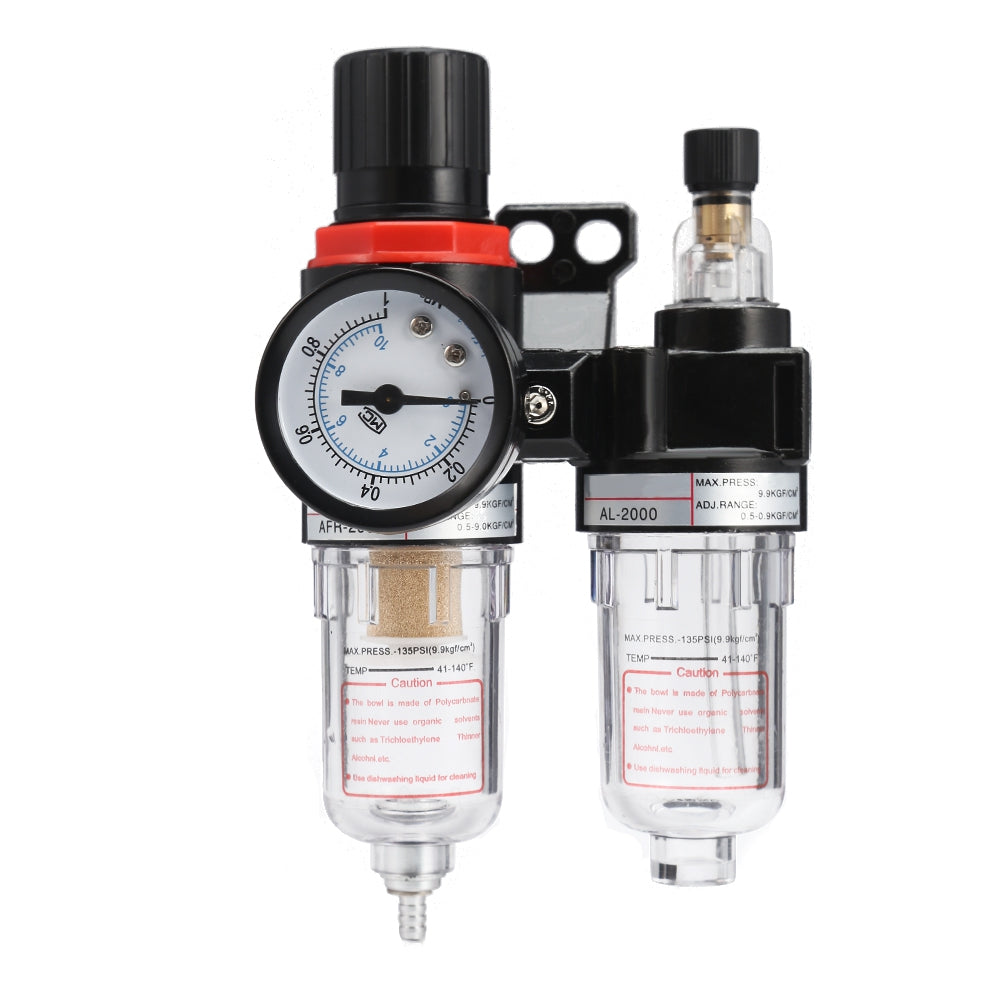

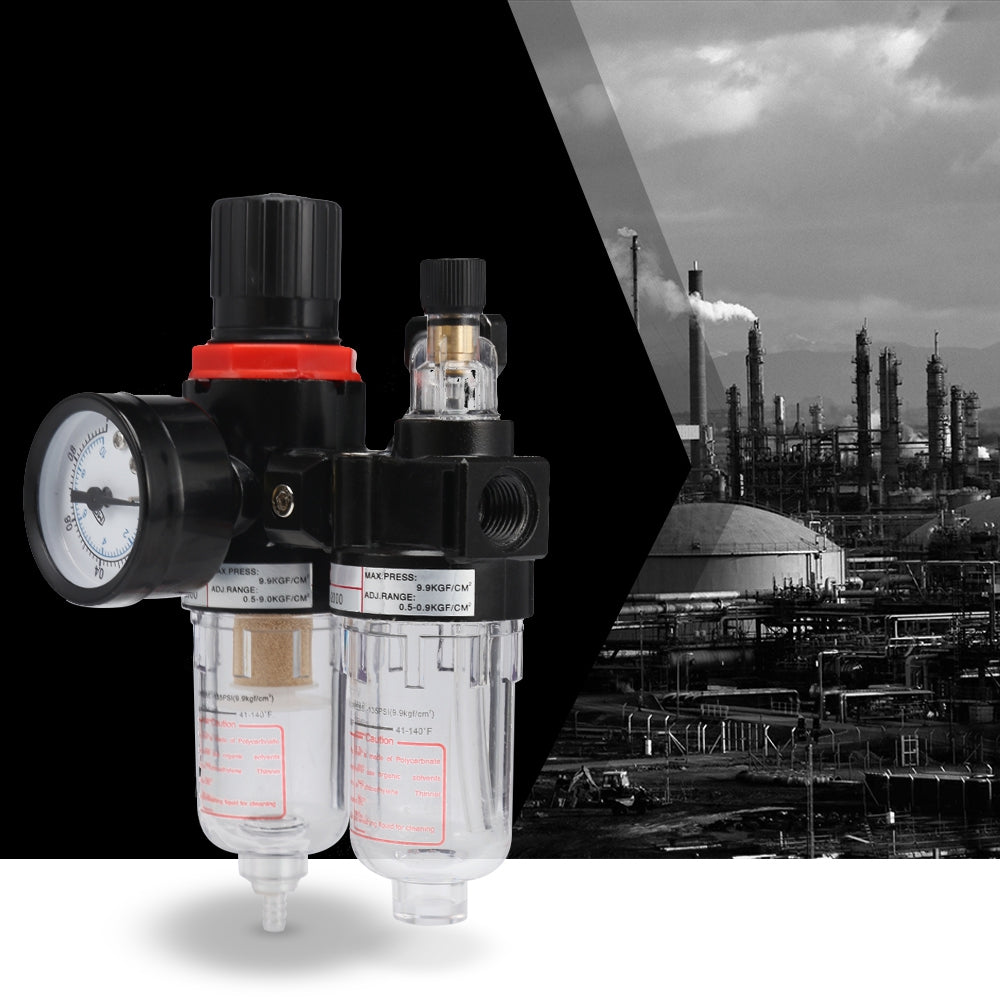

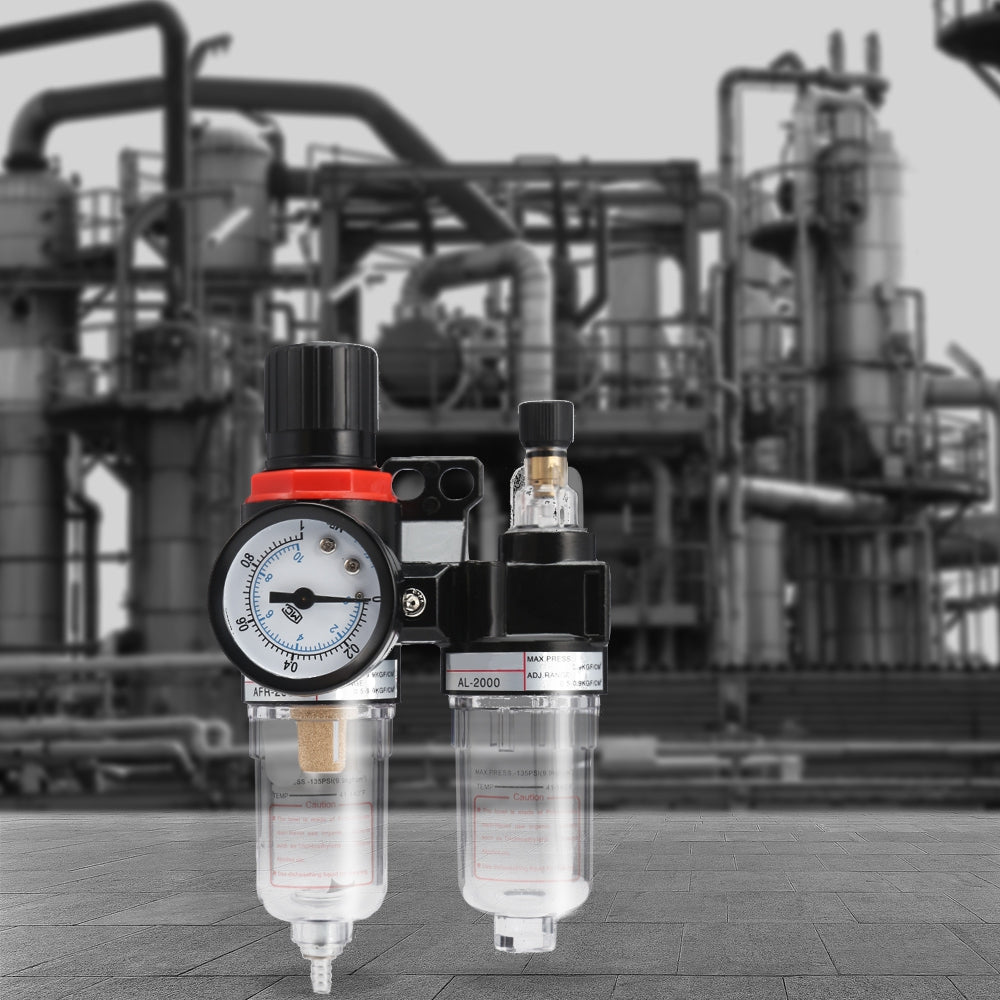

AFC2000 1/4 inch Air Compressor Oil Water Separator Regulator Trap Filter Airbrush
Package Size(L x W x H): 18.50 x 9.40 x 5.50 cm / 7.28 x 3.7 x 2.17 inches
Package weight: 0.39 kg





...See More
PRIVACY PROTECTED
SECURE CHECKOUT
AFC2000 1/4 inch Air Compressor Oil Water Separator Regulator Trap Filter Airbrush
Availability:
In Stock
FREE Shipping on Orders Over $20
ships worldwide |
$8.93
Main Features:
- Filter adopts novel vane design with high division efficiency
- Differential pressure discharge device. It can discharge water automatically
- Regulator valve adopts balanced inlet structure with the advantages of stable pressure, high precision, and quick reaction
- Help filter liquid and foreign particles from compressed air line, widely used for pneumatic tool and components
- Oil zero is a component that provides lubrication in a pneumatic system. It is novel in design and easy to adjust
- The combination of filter and pressure reducing valve reduces the installation space and is easy to use
Parameter:
Working medium: air
Filter type: AFR2000, AL2000
Max pressure: 9.9kgf
Adjustable pressure range: 0.5 - 0.9kgf (AL2000), 0.5 - 9kgf (AFR2000)
Joint pipe thread diameter: 11.8mm
Joint pipe size: PT 1/4 inch
Gauge range: 0 - 1 MPa
Gauge connector diameter: 9.1mm
Mounting hole diameter: 7.5mm
Use temperature: 0 - 60 Deg.C
Suggested oil: special oil for oil mist
Notes:
- Clean the separator regularly.
- Keep away from children when using.
- Wear protective gear when using.
- Filter adopts novel vane design with high division efficiency
- Differential pressure discharge device. It can discharge water automatically
- Regulator valve adopts balanced inlet structure with the advantages of stable pressure, high precision, and quick reaction
- Help filter liquid and foreign particles from compressed air line, widely used for pneumatic tool and components
- Oil zero is a component that provides lubrication in a pneumatic system. It is novel in design and easy to adjust
- The combination of filter and pressure reducing valve reduces the installation space and is easy to use
Parameter:
Working medium: air
Filter type: AFR2000, AL2000
Max pressure: 9.9kgf
Adjustable pressure range: 0.5 - 0.9kgf (AL2000), 0.5 - 9kgf (AFR2000)
Joint pipe thread diameter: 11.8mm
Joint pipe size: PT 1/4 inch
Gauge range: 0 - 1 MPa
Gauge connector diameter: 9.1mm
Mounting hole diameter: 7.5mm
Use temperature: 0 - 60 Deg.C
Suggested oil: special oil for oil mist
Notes:
- Clean the separator regularly.
- Keep away from children when using.
- Wear protective gear when using.
Package Size(L x W x H): 18.50 x 9.40 x 5.50 cm / 7.28 x 3.7 x 2.17 inches
Package Contents: 1 x Oil Water Separator Set
