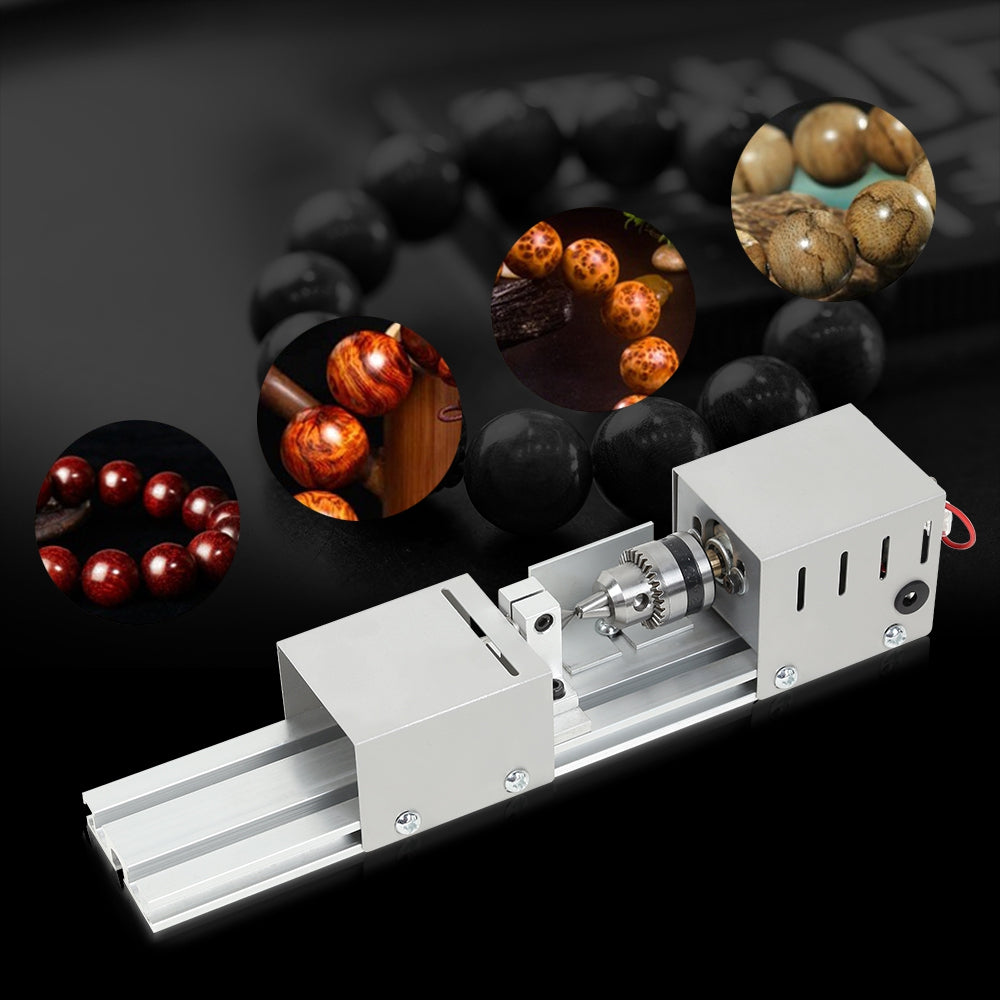

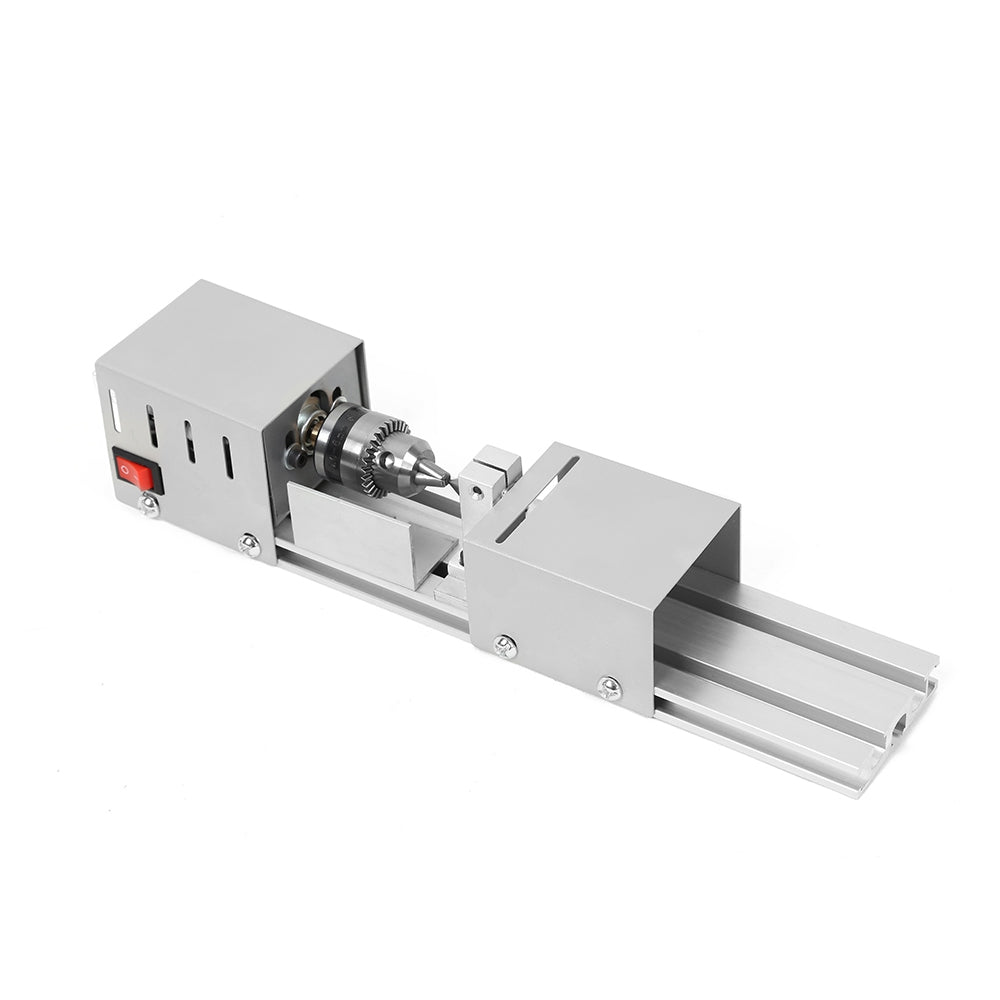

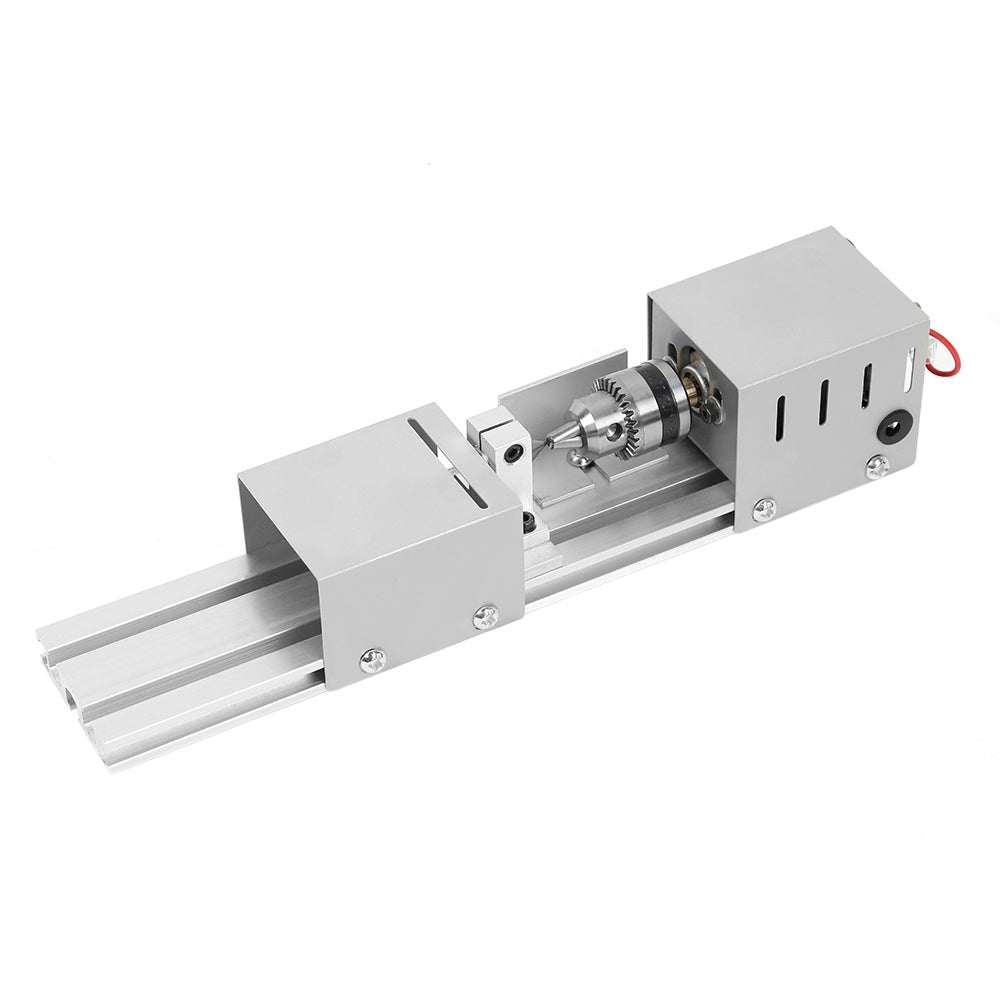

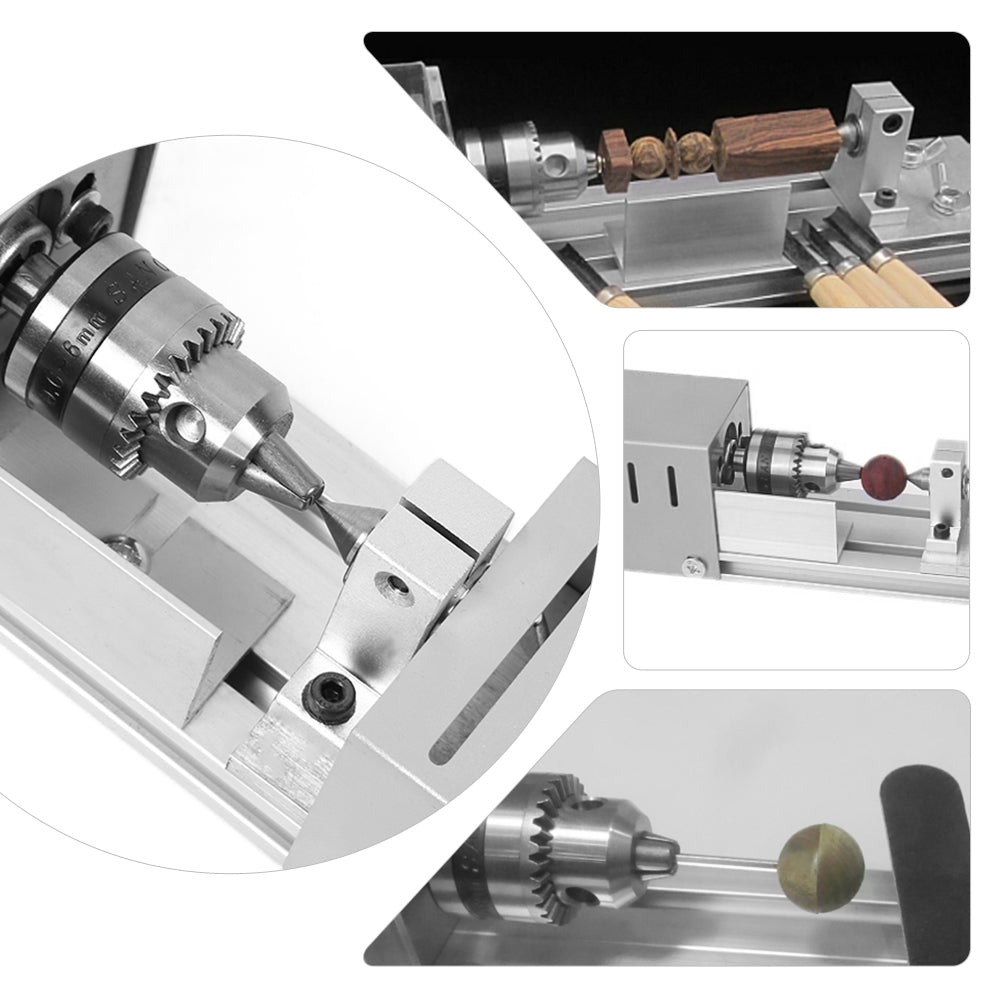

96W Mini Lathe Beads Machine Woodworking DIY Standard Set with Power Carving Cutter
Earn 434 mint points. Learn more...
Package Size(L x W x H): 42.00 x 10.00 x 9.00 cm / 16.54 x 3.94 x 3.54 inches
Package weight: 1.752 kg
...See More
PRIVACY PROTECTED
SECURE CHECKOUT
96W Mini Lathe Beads Machine Woodworking DIY Standard Set with Power Carving Cutter
Availability:
In Stock
FREE Shipping on Orders Over $20
ships worldwide |
$43.42
Earn 434 mint points. Learn more...
Features:
- With high quality metal thick plate, metal dust cover, with strong convection hole for cooling
- With full wire joints heat shrink tube wrapped
- With large torque ball bearing motor
- With pure steel structure drill chuck
- Small volume, but with high precision, low-noise
- Perfectly designed for home DIY enthusiasts
Specifications:
Power: 96W
Voltage: DC 12 - 24V
Chuck clamping range: 0.6 - 6mm
Speed: 4000 - 8000 revolutions per minute seven speed control power supply
Theoretical maximum clamping length: 180mm
The theory of maximum turning diameter: 70 mm
Precautions:
1. If the user does not have lathe base experience, when used, should follow: low speed, slowly, cautiously and other security operations.
2. The speed can be adjusted in 0 - 8000rpm, cut wood should not exceed 4000, grinding can use higher speed.
3. Drill chuck axis, the axis of the wood, the tailstock center axis of the drill should be in a straight line, or need to adjust the nut.
4. If not a cylinder, the speed should be reduced.
5. Tailstock bearing without lock tight.
6. When using a knife, locking the bottom of screw, location should be away from timber 1 - 1.5cm.
7. If you do not really understand the operation, it is best to consult a professional person.
- With high quality metal thick plate, metal dust cover, with strong convection hole for cooling
- With full wire joints heat shrink tube wrapped
- With large torque ball bearing motor
- With pure steel structure drill chuck
- Small volume, but with high precision, low-noise
- Perfectly designed for home DIY enthusiasts
Specifications:
Power: 96W
Voltage: DC 12 - 24V
Chuck clamping range: 0.6 - 6mm
Speed: 4000 - 8000 revolutions per minute seven speed control power supply
Theoretical maximum clamping length: 180mm
The theory of maximum turning diameter: 70 mm
Precautions:
1. If the user does not have lathe base experience, when used, should follow: low speed, slowly, cautiously and other security operations.
2. The speed can be adjusted in 0 - 8000rpm, cut wood should not exceed 4000, grinding can use higher speed.
3. Drill chuck axis, the axis of the wood, the tailstock center axis of the drill should be in a straight line, or need to adjust the nut.
4. If not a cylinder, the speed should be reduced.
5. Tailstock bearing without lock tight.
6. When using a knife, locking the bottom of screw, location should be away from timber 1 - 1.5cm.
7. If you do not really understand the operation, it is best to consult a professional person.
Package Size(L x W x H): 42.00 x 10.00 x 9.00 cm / 16.54 x 3.94 x 3.54 inches

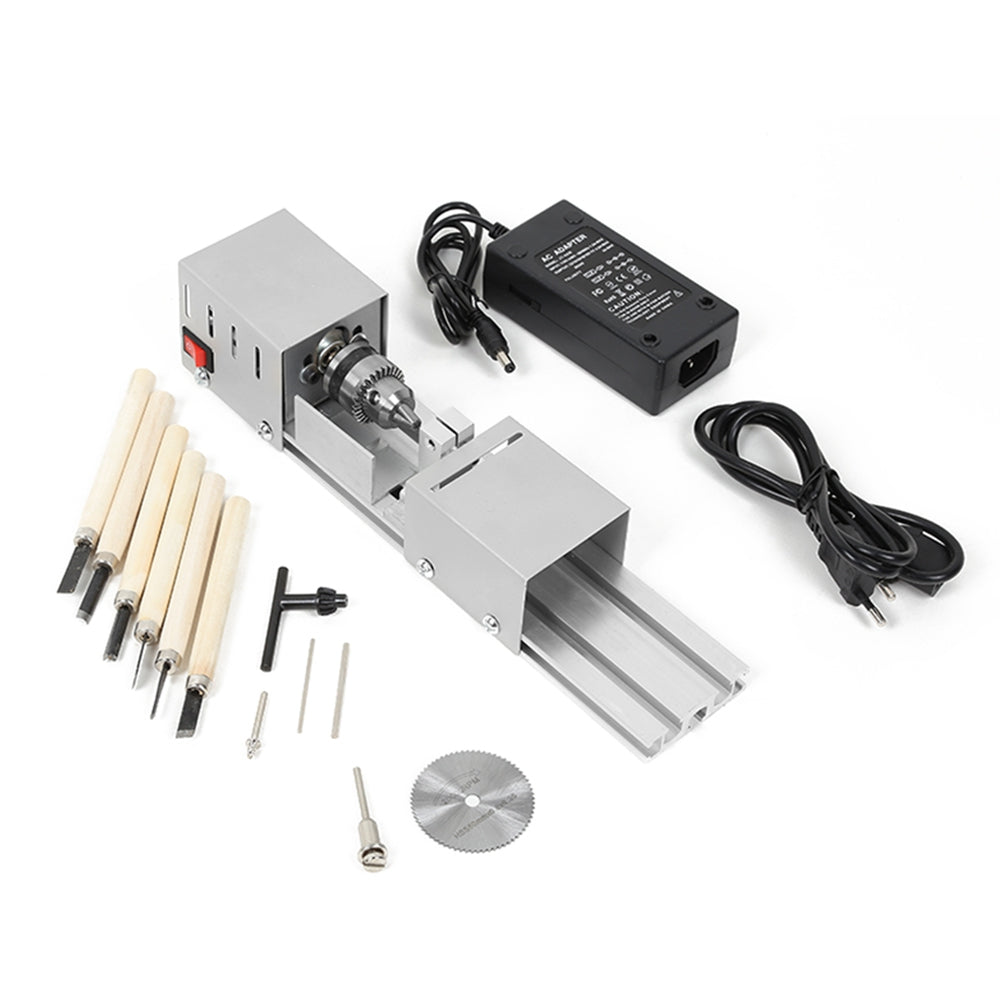

Package Contents: 1 x Mini Lathe Beads Machine, 1 x Power Adapter, 1 x EU Plug, 1 x Turning Tool, 1 x Repair Round Device, 3 x Hexagonal Fixing Pin (1.5mm, 2.0mm, 2.5mm), 6 x Graver, 1 x Cutting Piece
