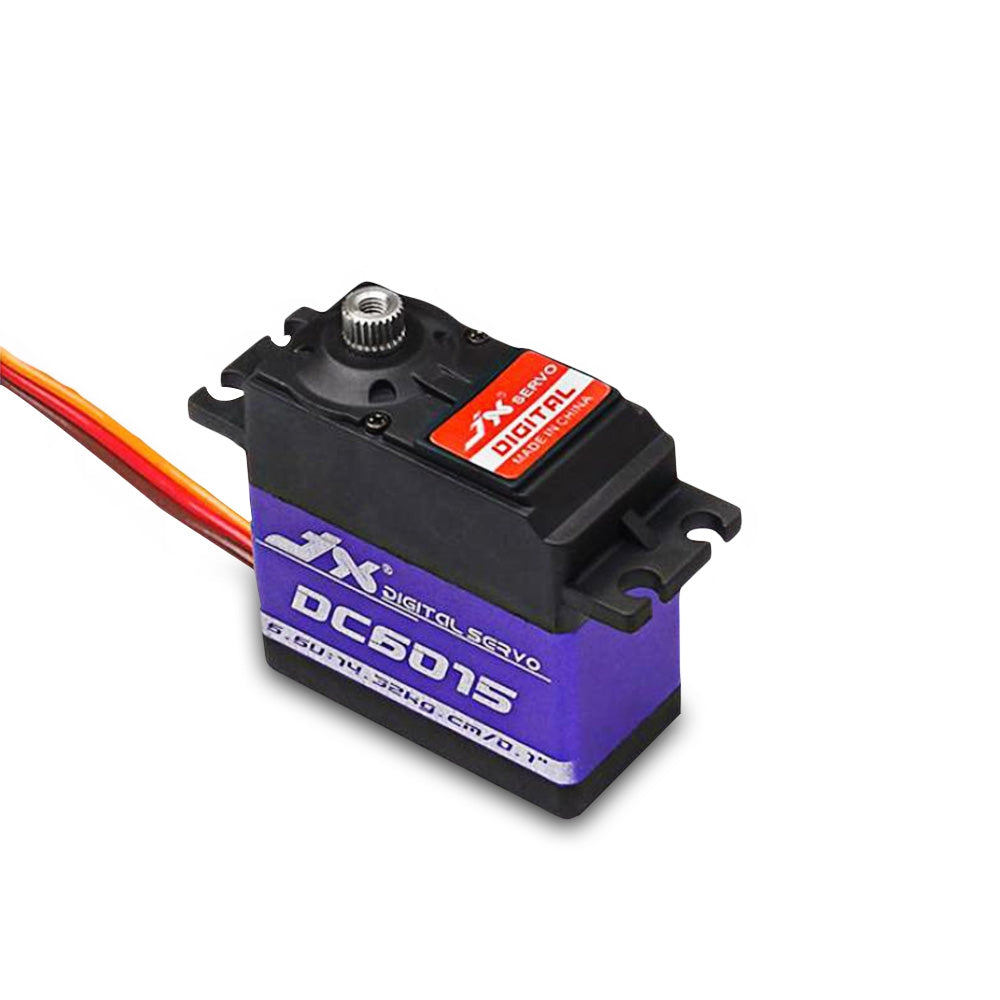

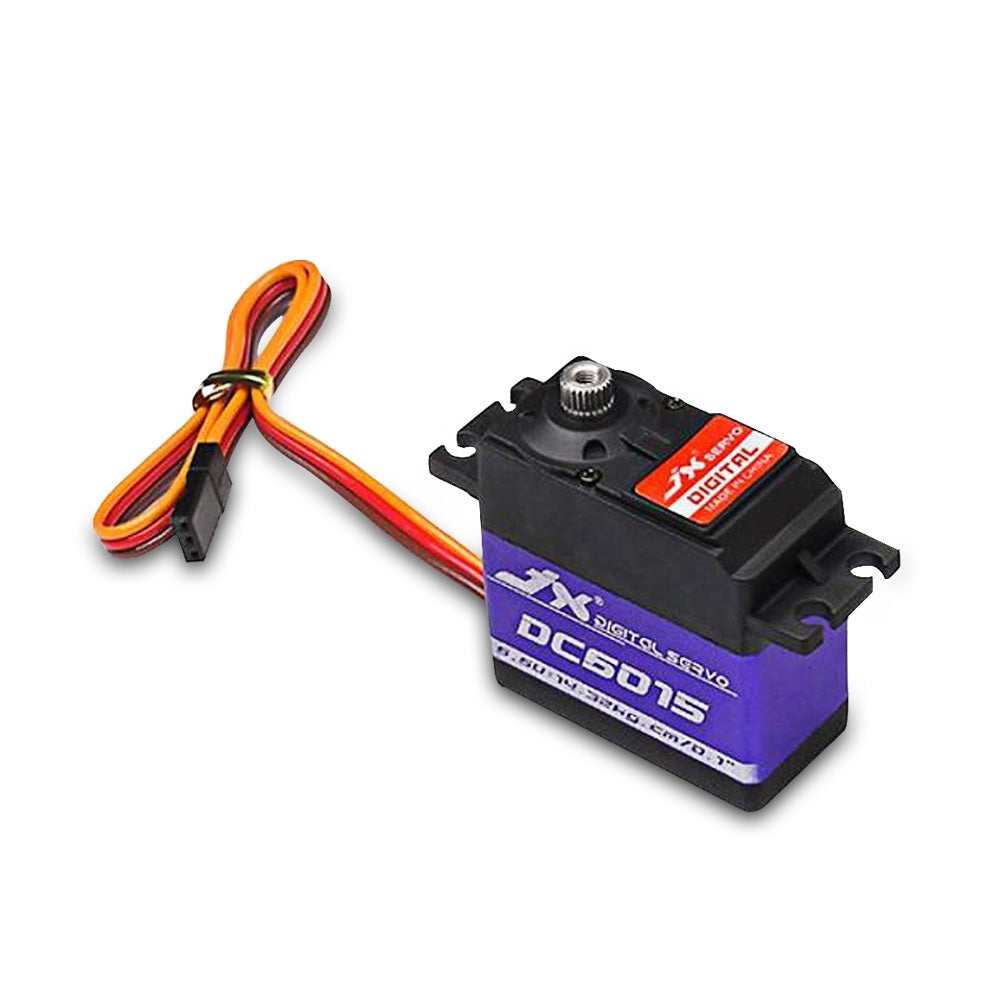

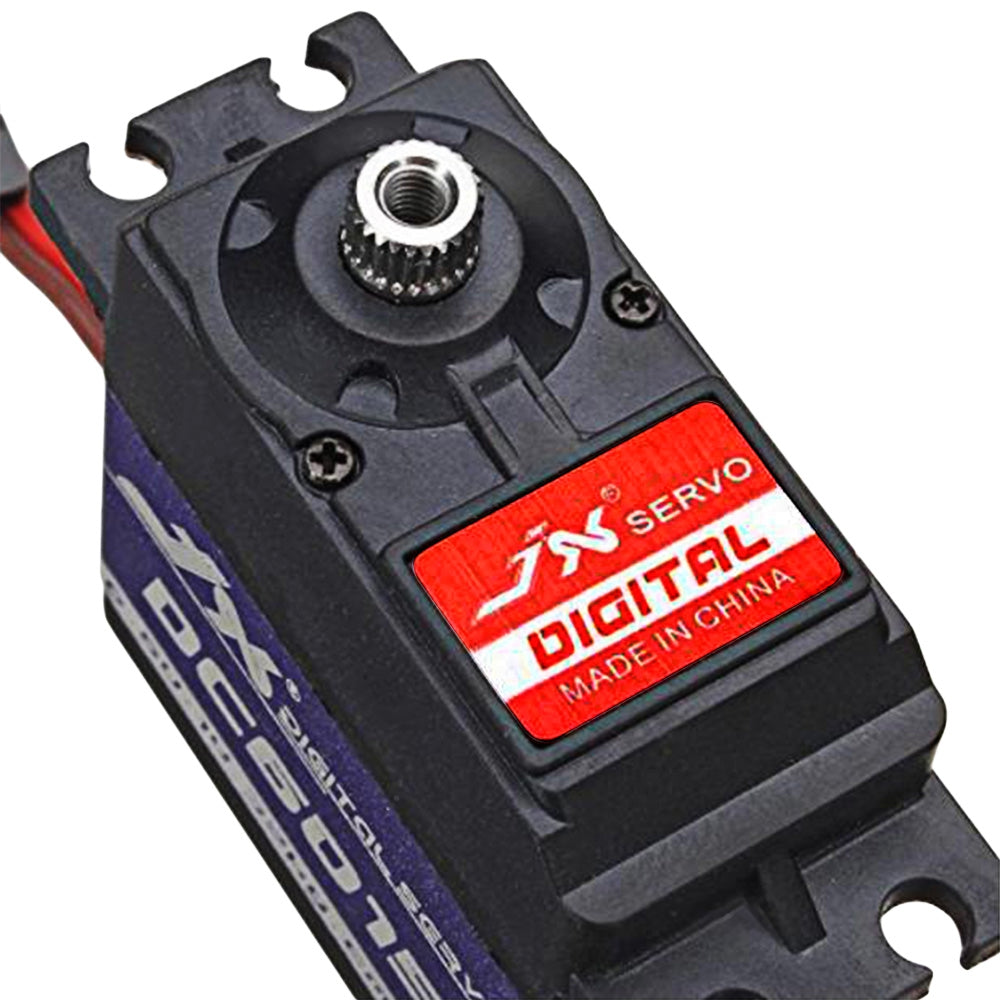

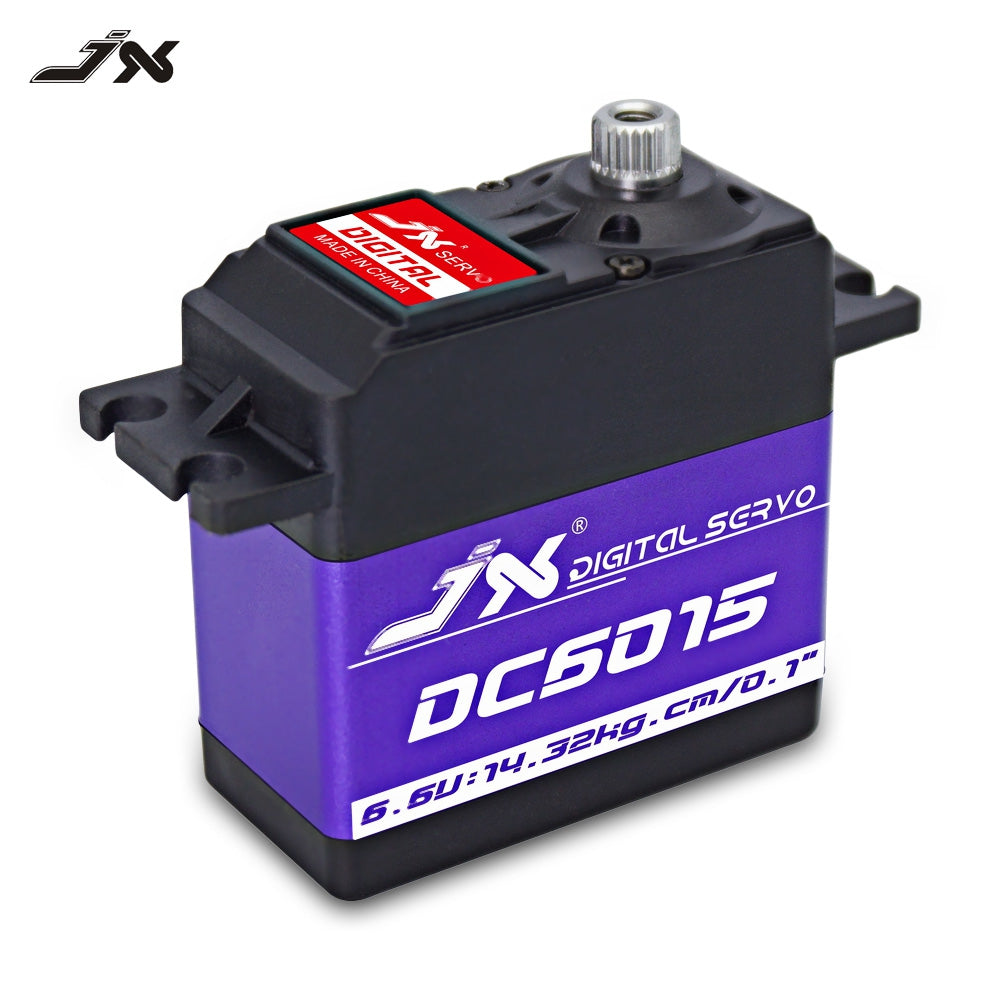

JX DC6015 Metal Gear High Torque Digital Servo for RC Model
Availability:
In Stock
|
FREE Shipping on Orders Over $20
ships worldwide |
$26.92
Features:
- CNC metal upper housing
- High-precision metal gear
- Digital iron core servo
Specification:
Transmitter max angle: 120 degree
Voltage: 4.8 - 6.6V
Stall torque (4.8V): 10.7kg
Stall torque (6.6V): 14.32kg
Speed (4.8V): 0.12 sec/60 degree
Speed (6.6V): 0.10 sec/60 degree
Dead band: 2us
Operating frequency: 1520us/330Hz
Gears: metal
Spline count: 25T
Bearing: 2BB
Connector: JR type
Servo cable length: 265mm
- CNC metal upper housing
- High-precision metal gear
- Digital iron core servo
Specification:
Transmitter max angle: 120 degree
Voltage: 4.8 - 6.6V
Stall torque (4.8V): 10.7kg
Stall torque (6.6V): 14.32kg
Speed (4.8V): 0.12 sec/60 degree
Speed (6.6V): 0.10 sec/60 degree
Dead band: 2us
Operating frequency: 1520us/330Hz
Gears: metal
Spline count: 25T
Bearing: 2BB
Connector: JR type
Servo cable length: 265mm
Material: Metal
RC Parts & Accs: Servos
RC Parts & Accs: Servos
Package weight: 0.131 kg
Product Size(L x W x H): 4.00 x 2.20 x 4.00 cm / 1.57 x 0.87 x 1.57 inches
Package Size(L x W x H): 6.50 x 5.00 x 4.00 cm / 2.56 x 1.97 x 1.57 inches
Product Size(L x W x H): 4.00 x 2.20 x 4.00 cm / 1.57 x 0.87 x 1.57 inches
Package Size(L x W x H): 6.50 x 5.00 x 4.00 cm / 2.56 x 1.97 x 1.57 inches

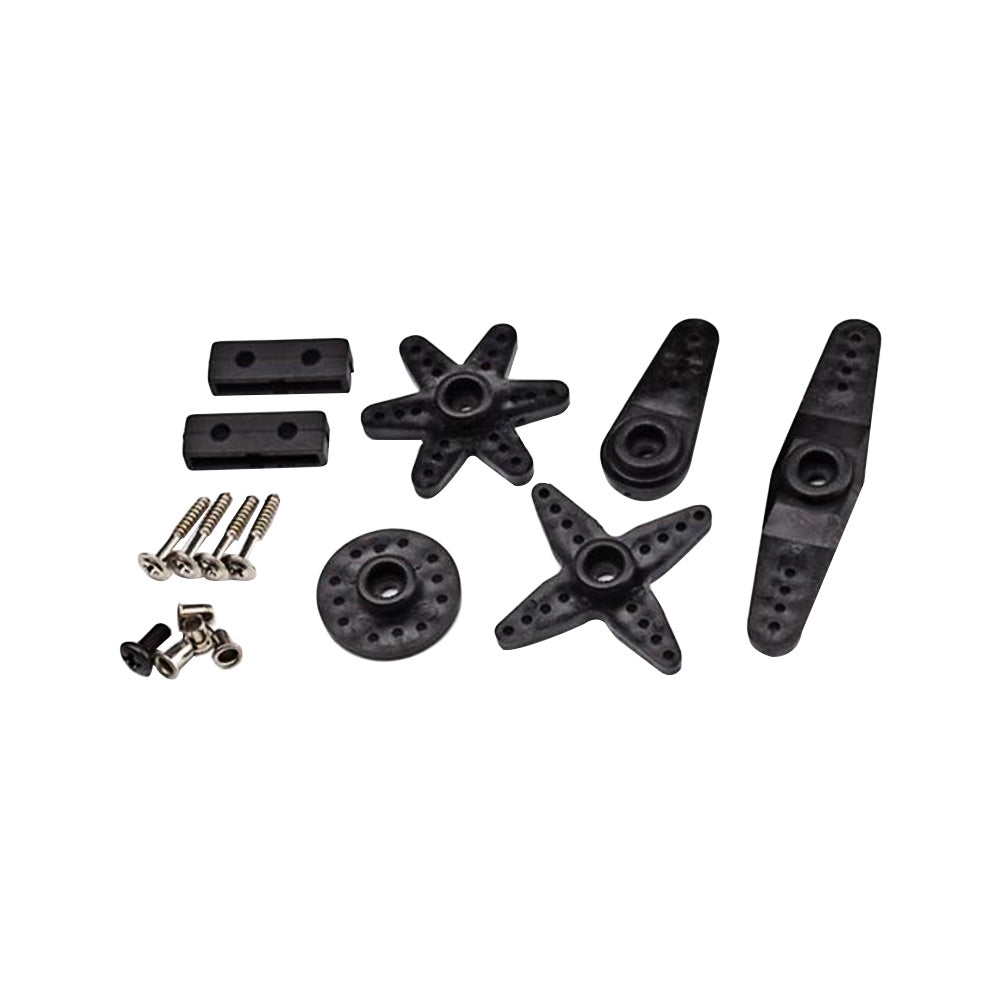

Package Contents: 1 x Servo, 1 x Pack of Accessories
